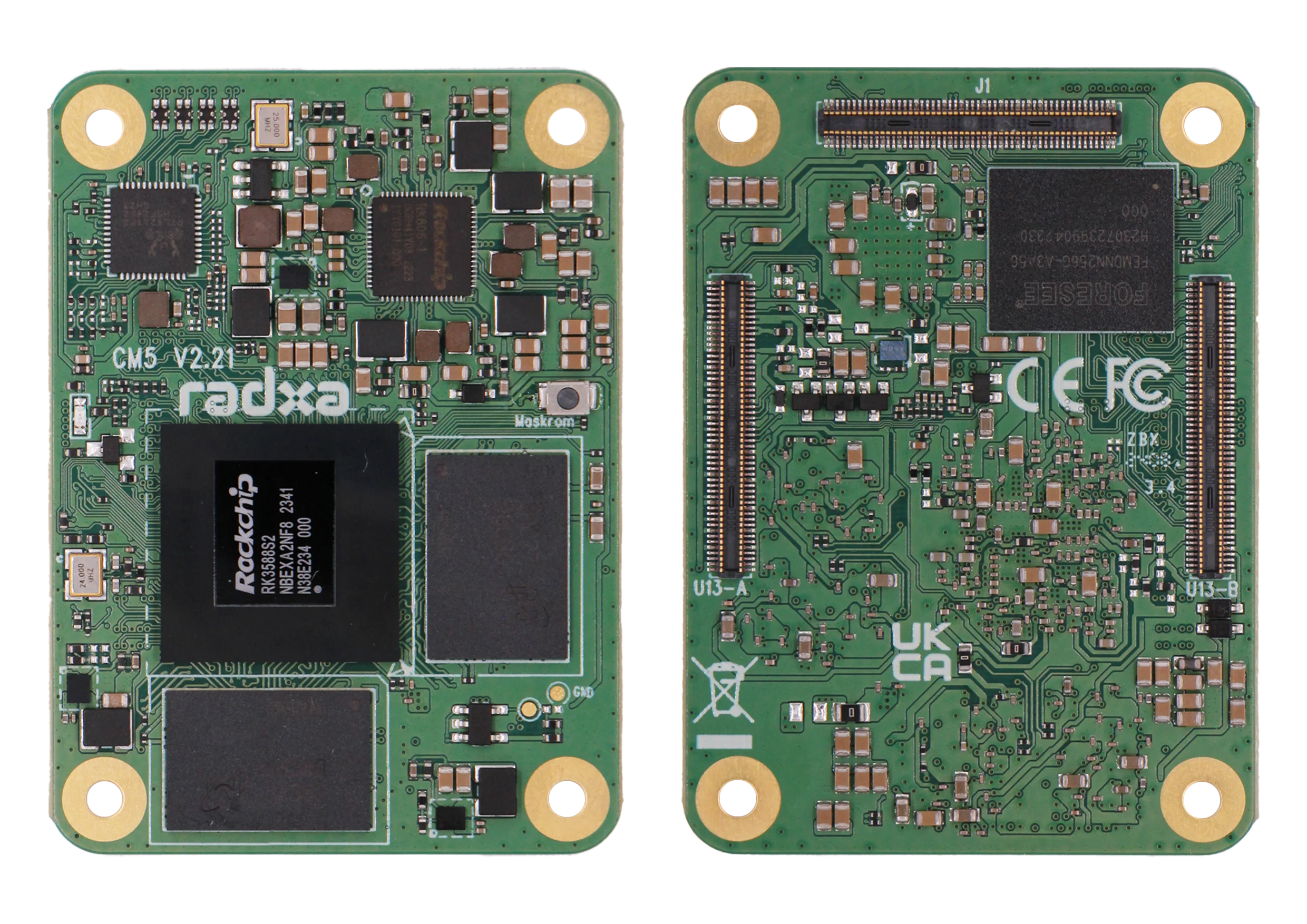

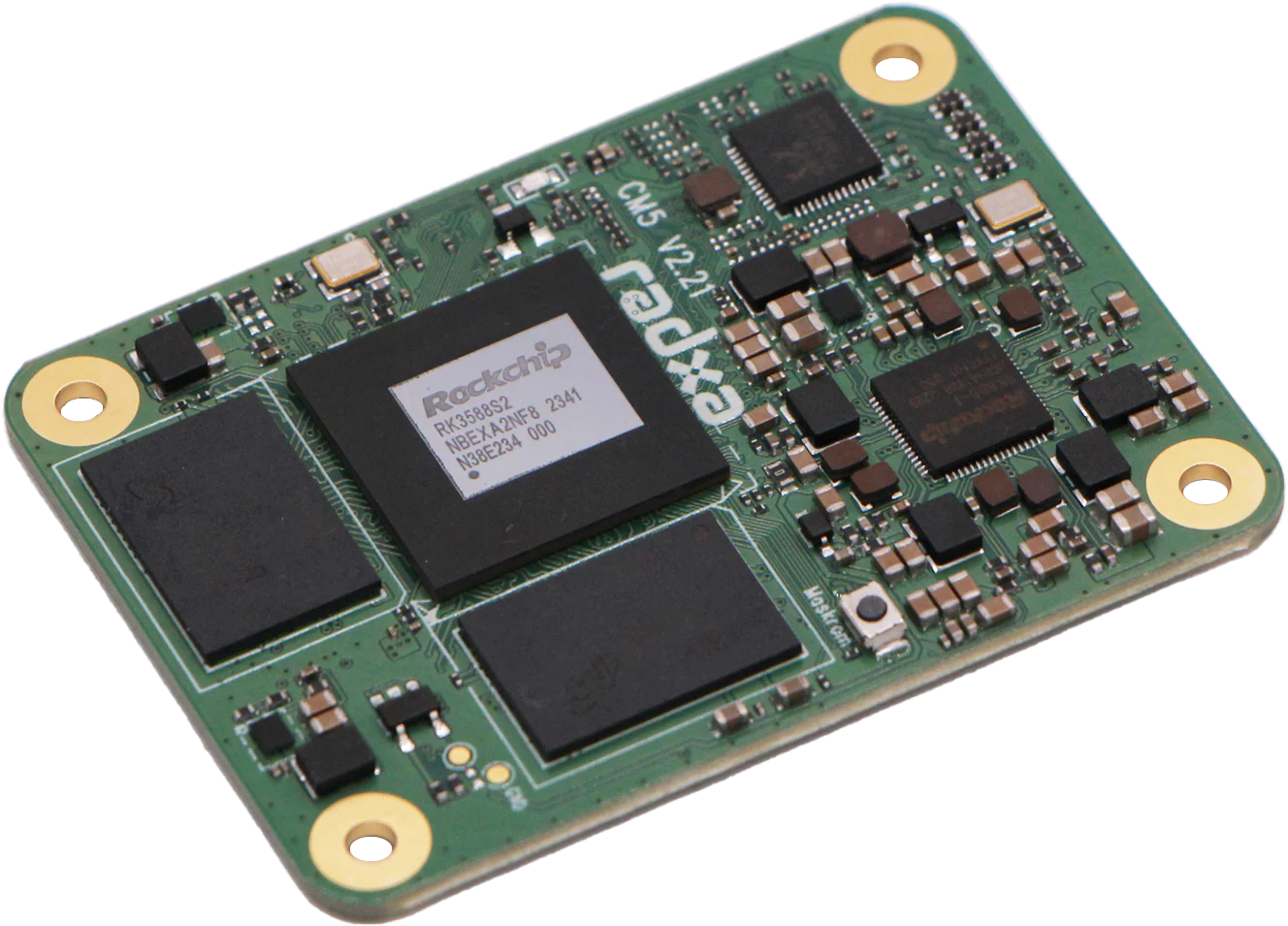

Radxa´s CM5 is an advanced SoM (System on Module) based on the RK3588S2 SOC

The Radxa CM5 integrates the Central Process Unit (CPU),
Graphics Processing Unit (GPU), Neural Processing Unit (NPU), Power Management Unit
(PMU), LPDDR4X DRAM Memory and onboard eMMC Storage in a small form factor of just 55mm x 40m.

Radxa´s CM5 offers an out of the box, cost-effective solution for countless applications. It as well simplifies and accelerates new product developments.

Overview of features:

Quad core 64 bit High Performance Solution

Radxa CM5 is powered by the Rockchip RK3588S2 SoC, a 64bit Quad Cortex®-A76 @2.2~2.4GHz and Quad Cortex®-A55 @1.8GHz (ARM v8). It comes with a maximum of 32GB RAM and up to 256GB eMMC storage.

Detailed technical specs:

Processor:

Rockchip RK3588S2, Quad Cortex®-A76 @2.2~2.4GHz and Quad Cortex®-A55 @1.8GHz (ARM v8) based on Arm® DynamIQ™ configuration

GPU:

Arm Mali™ G610MP4

NPU:

6TOPs@INT8

Memory:

4GB, 8GB, 16GB or 16GB LPDDR4X (depending on variant)

Storage:

32GB/ 64GB /128GB /256GB onboard eMMC

Multimedia:

H.265 and VP9 decoder by 8K@60fps
H.264 decoder by 8K@30fps
AV1 decoder by 4K@60fps
H.264 and H.265 encoder by 8K@30fps

Ethernet:

1 x Onboard Gigabit Ethernet PHY

Display:

1x HDMI TX up to 8K@60hz・ 1x eDP TX up to 4K@60Hz

1x DP TX (and USB3.0 Combo) up to 8K@30Hz

1x 2‑lane MIPI D/C‑PHY TX

1x 4‑lane MIPI D/C‑PHY TX

Camera:

1x 2‑lane MIPI D/C‑PHY RX

1x 4‑lane MIPI D/C‑PHY RX

Connectivity:

2 × USB 2.0 Host Port (HighSpeed)・

1 x USB 3.0 Host Port (SuperSpeed)・

1 x USB 3.0 OTG Port

2 x PCIe2.0 1‑lane, one shared with USB3 and SATA, one shared with SATA

2 x SATA ports, one shared with USB3 and PCIe2.0, one shared with PCIe2.0

Up to 10x UART

Up to 5x SPI

Up to 3x CAN

Up to 7x I2C

Up to 15x PWM

Up to 2x I2S

Up to 2x PDM

Up to 2x SPDIF TX

Power Input:

5V DC, Max 5.2V

Connector:

Connector Type: 3x 100‑Pin B2B Connector

Software:

Debian/Ubuntu Linux support
Android 11/12 support

Dimensions: 55mm x 40mm

RADXA CM5 will remain in production until at least Sep 2033

RADXA Compute Module

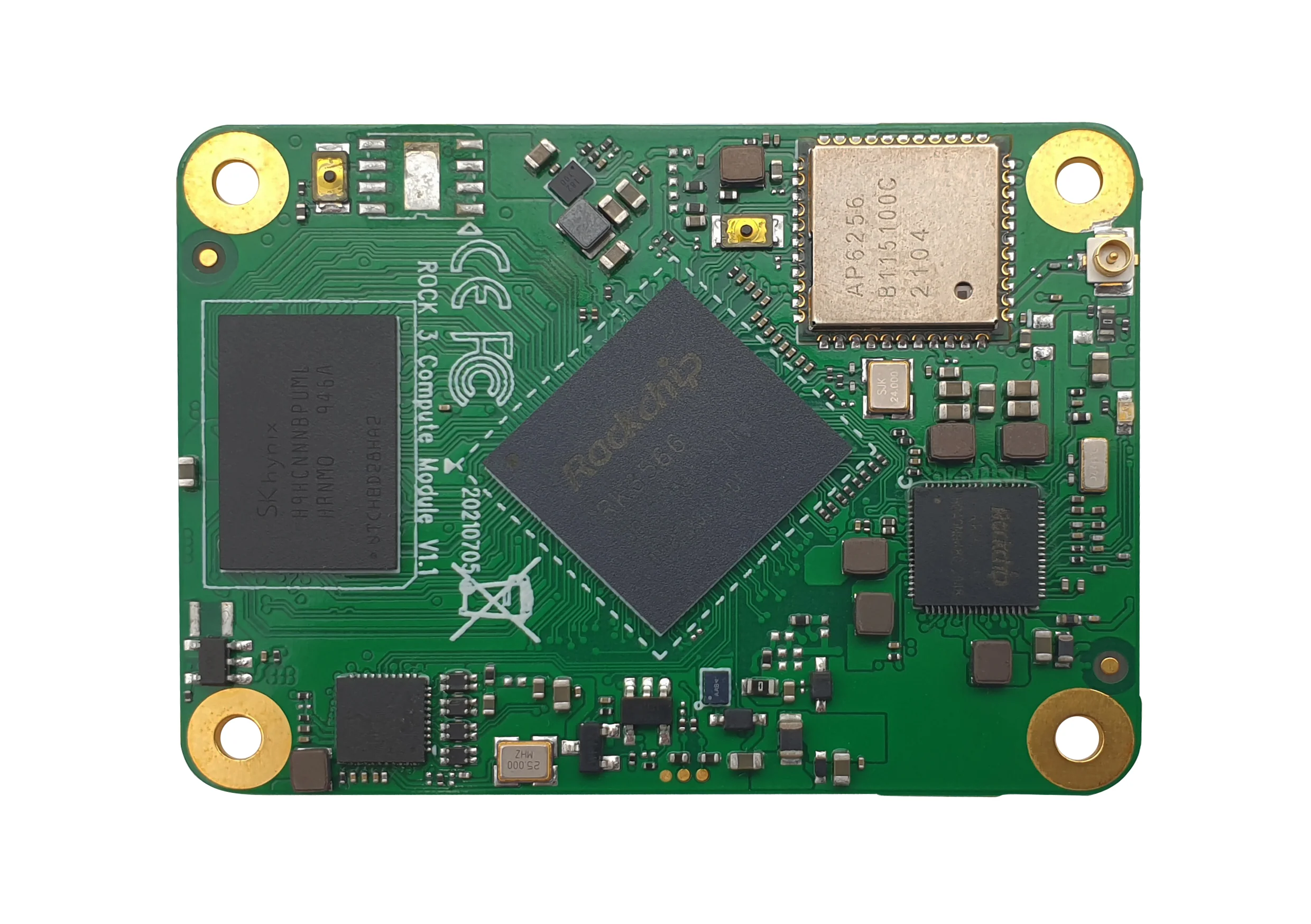

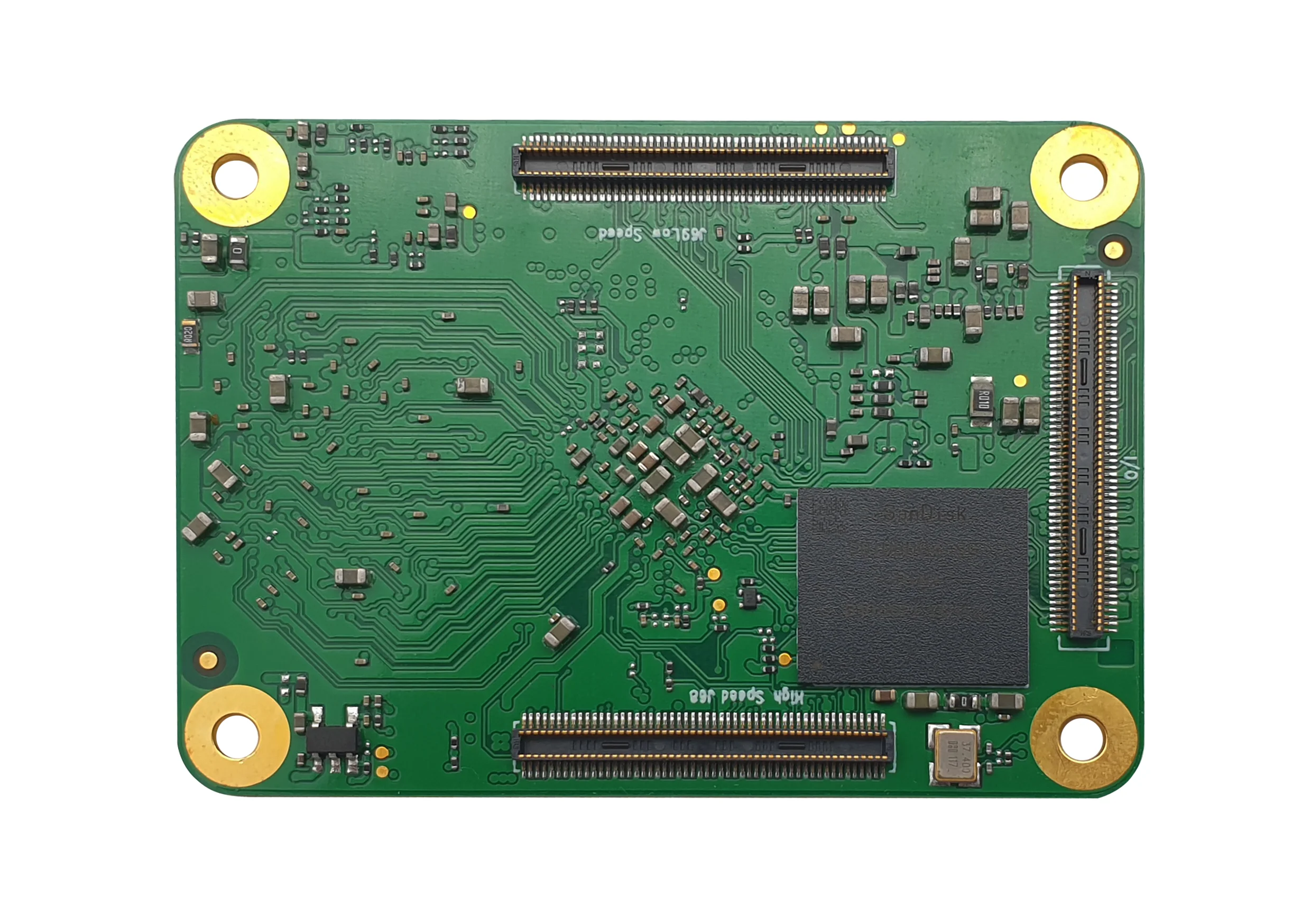

RADXA ROCK3 Computing Module

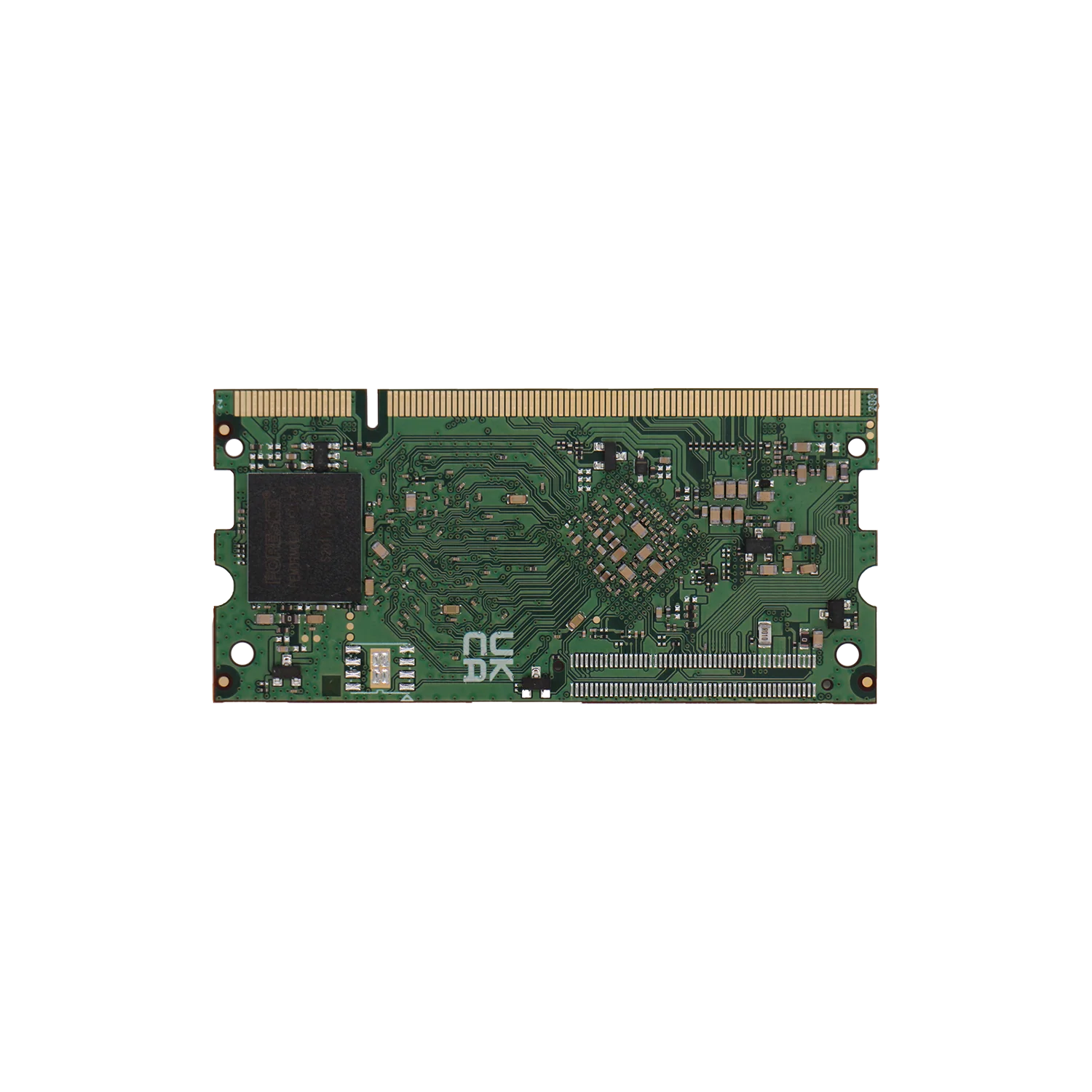

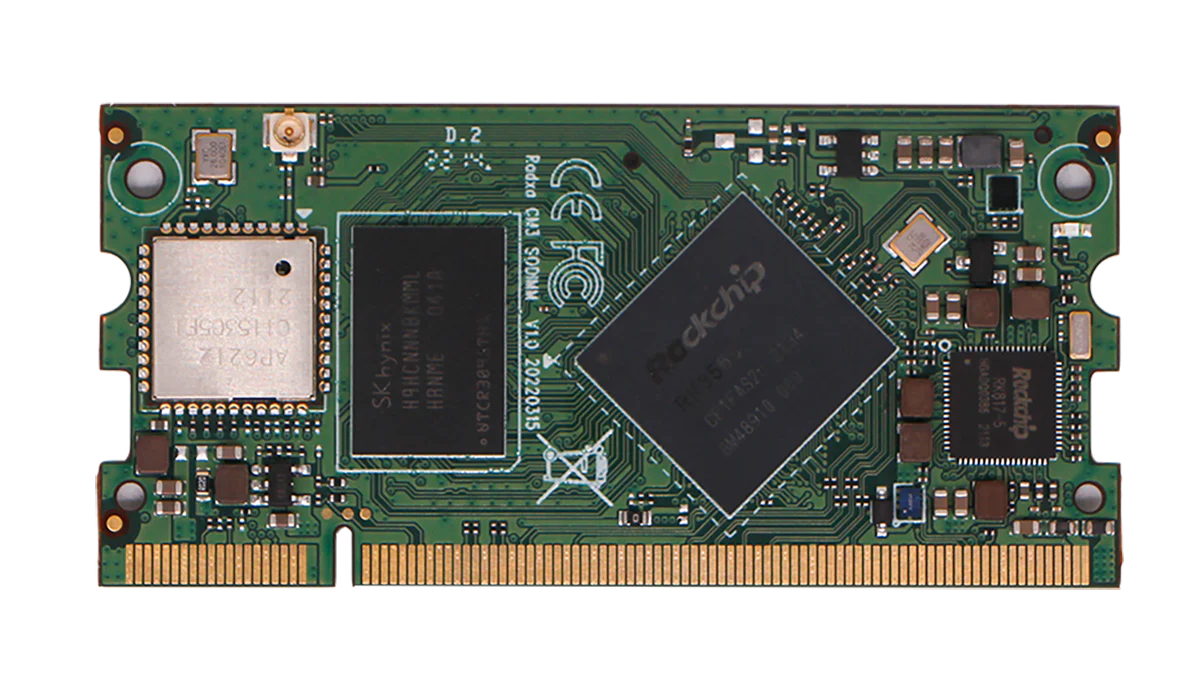

RADXA ROCK3 Computing Module SODIMM

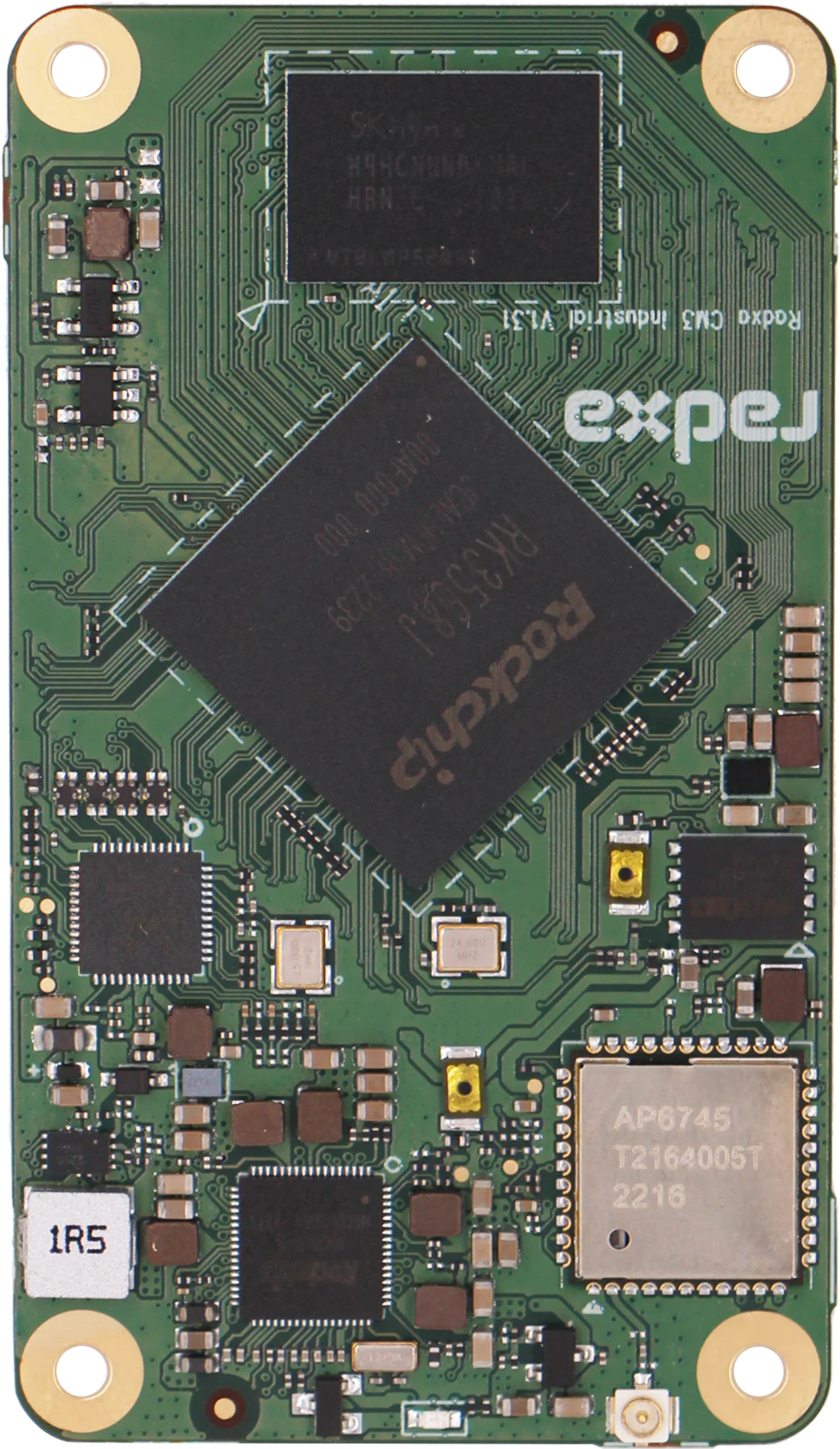

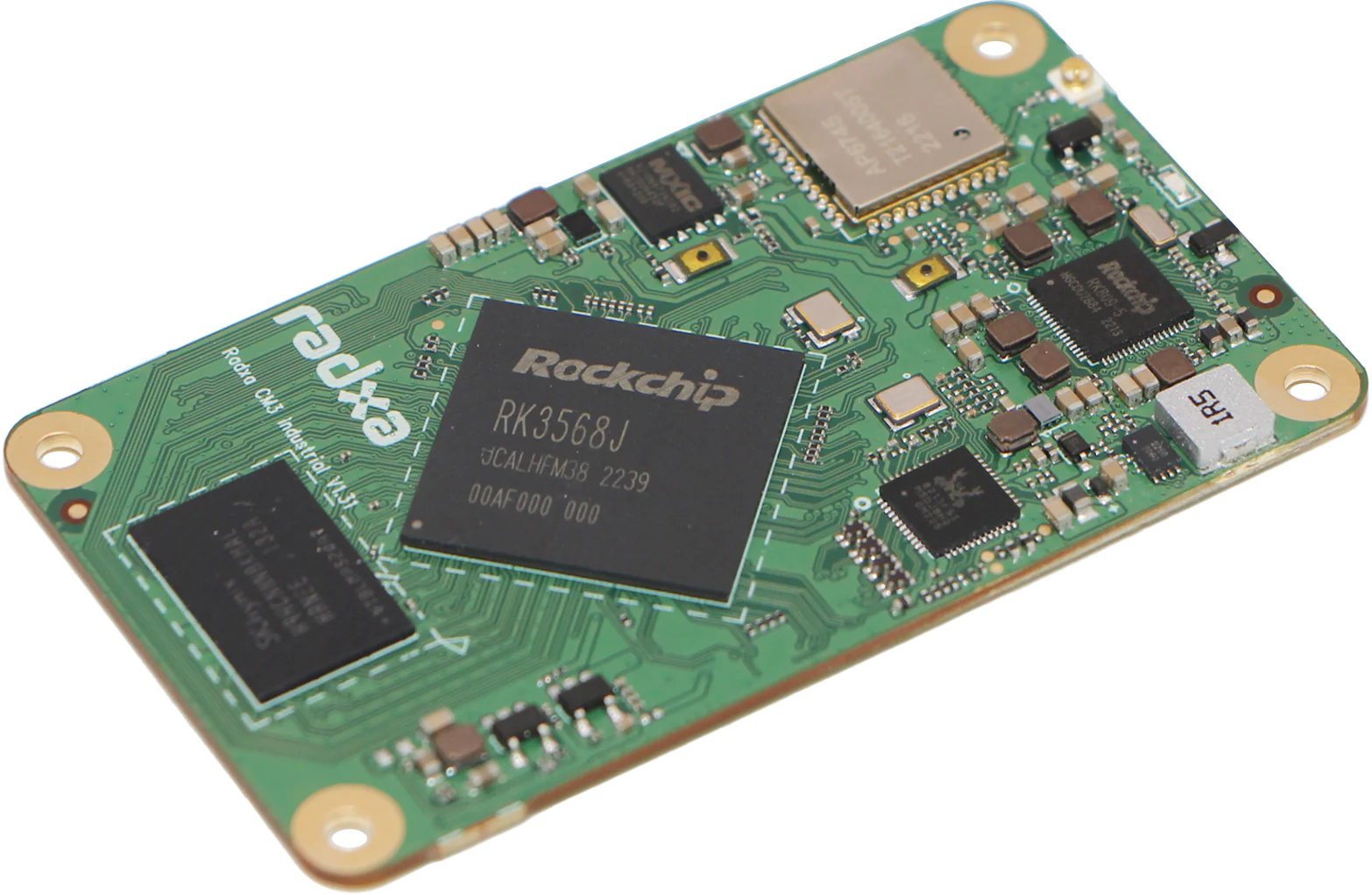

RADXA CM3I Industrial Embedded SoM

RADXA CM5

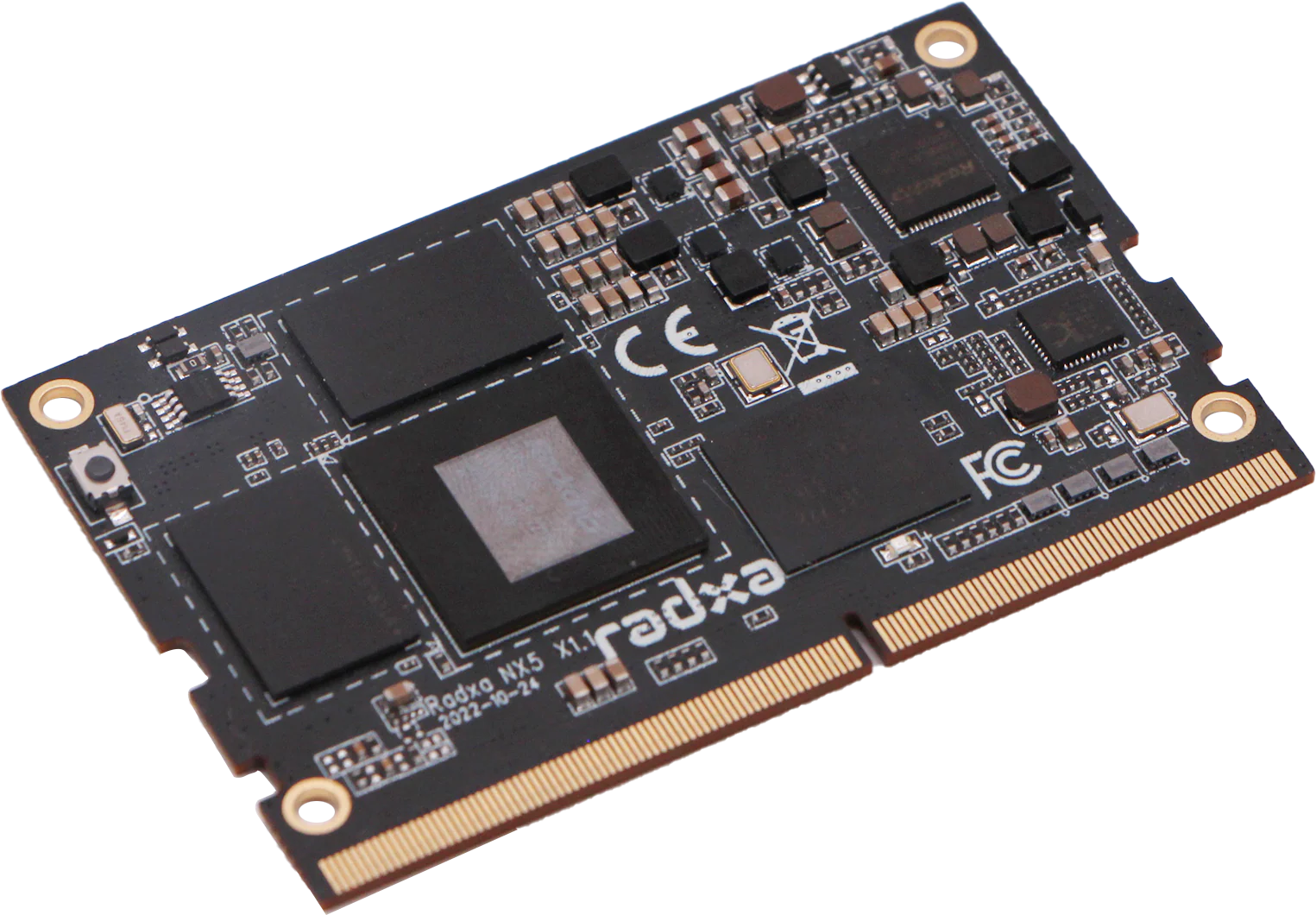

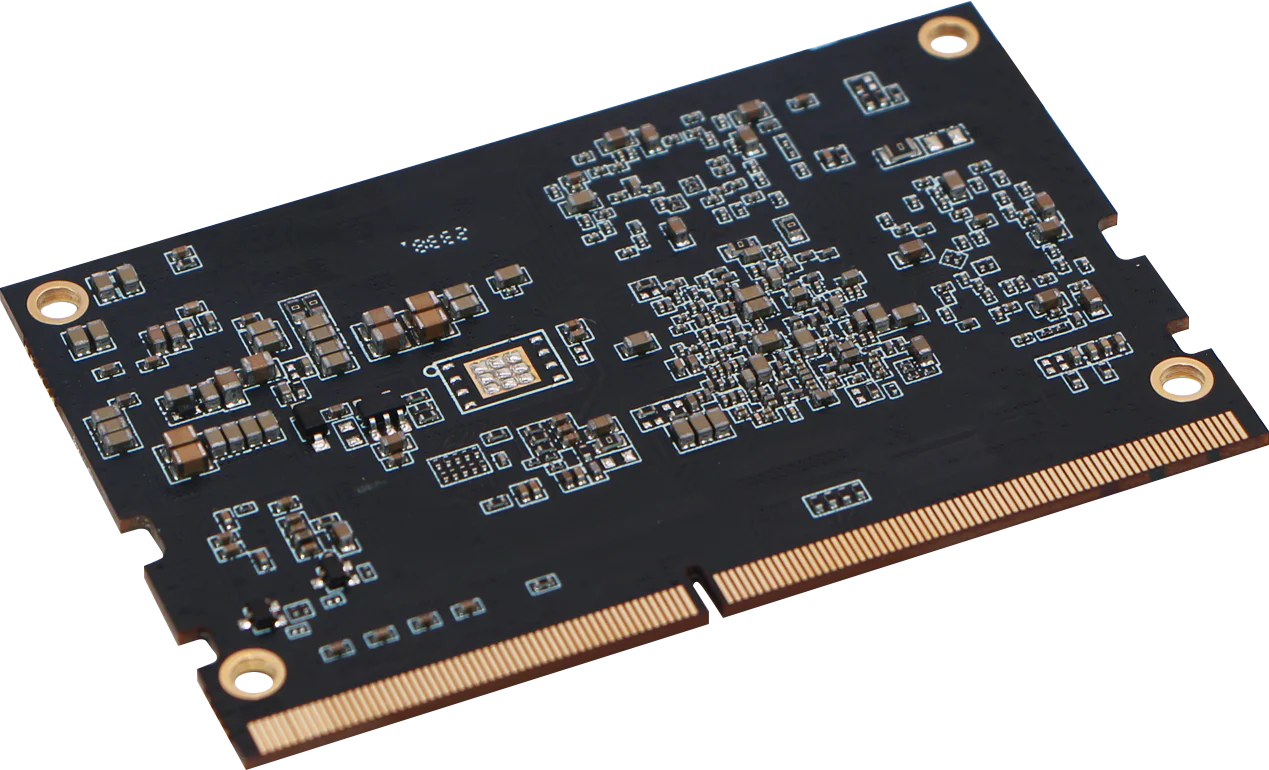

RADXA NX5
