High-performance quad-core RISC-V single board computer (SBC) with an integrated 3D GPU

StarFive´s VisionFive 2 is the worlds first high-performance RISC-V single board computer with an integrated GPU.

This new generation has been fully upgraded with significant improvements in processor work frequency, multimedia processing capabilities and scalability. It glances with a quad-core 64bit SoC with RV64GC ISA with a clock rate of up to 1.5GHz. The integrated IMG BXE-4-32 MC1 supports OpenCL 3.0, OpenGL ES 3.2, and Vulkan 1.2 VisionFive2 provides as well a rich set of interfaces like M.2 connector, eMMC socket and many more.

Technical Details:

Processor

StarFive JH7110 with RISC-V U74 quad-core with 2 MB L2 cache and S7 monitor core, supporting RV64GC ISA, working up to 1.5 GHz
IMG BXE-4-32 MC1 with work frequency up to 600 MHz (400 MHz by default)

Memory

4GB, 8GB LPDDR4 (up to 2800Mbps)

Storage

Onboard TF card slot
Flash
eMMC socket for optional eMMC module up to 128GB
M.2 NVMe SSD slot

Wireless Connectivity

WiFi dongle (only for WiFi board variants)

Video Output

1 × 2-lane MIPI DSI display port, supporting up to 1080p@30fps
1 × 4-lane MIPI DSI display port, supporting up to 2K@30fps in both single display and dual display modes
1 × HDMI 2.0, supporting up to 4K@30fps or 2K@60fps

Camera

1x 2-lane MIPI CSI camera port, supporting up to 4K (3840 x 2160) pixels @30fps

Encoder/Decoder

Video Decoder supports up to 4K@60fps; Support multi stream for H264/H265
Video encoder supports up to 1080p@30fps and multi-stream for H265
JPEG encoder/decoder

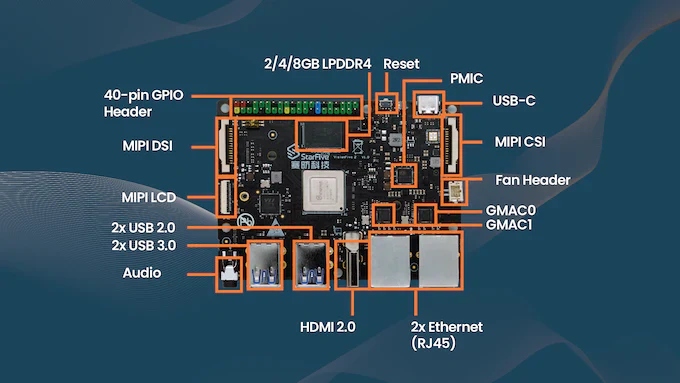

Peripherals

4 x USB 3.0 ports
40 Pin GPIO Header (28 x GPIO, I2C, I2S, SPI, UART)
2x RJ45 Ethernet Connector
3.5 mm Audio jack (4-pole stereo audio output)
M.2 Connector
eMMC Socket
2 pin fan header
Micro-SD card slot for system boot and data storage
Reset and Power Button

Power Supply

Power 5V DC with PD, up to 30W

Power Connector

USB Type-C port or 40-pin GPIO header

Dimension

100mm x 72 mm

Compliance

RoHS, FCC, CE

Connect to the StarFive VisionFive ecosystem here: rvspace.org

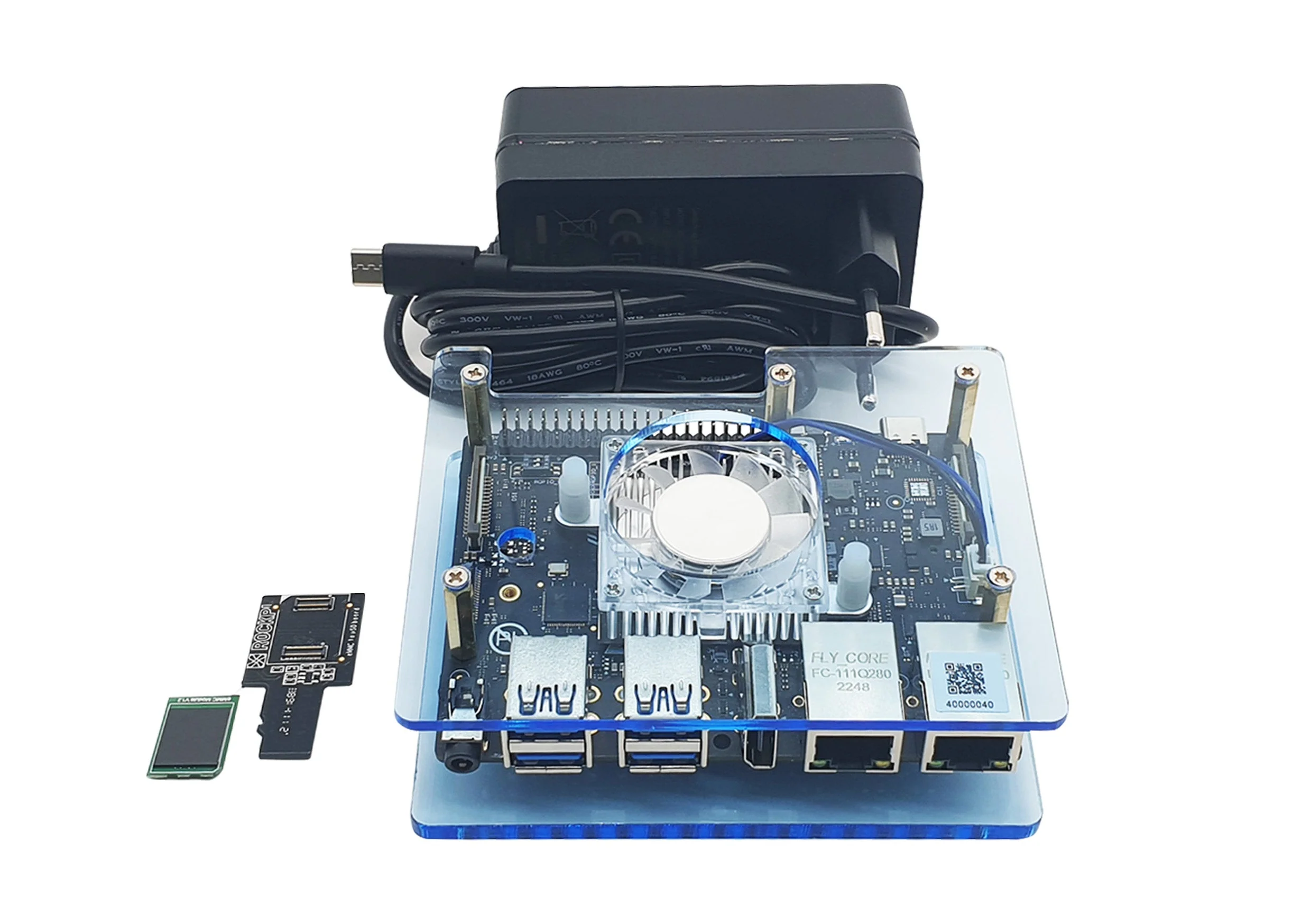

STARTER KIT CONTENTS:

NON WIFI VERSION

Acrylic Protector including active heat management (FAN)

Power Supply 5V6A with 1m USB-C mounted cable (EU/US variants)

16GB eMMC module

eMMC to usd adapter for flashing firmware

WIFI VERSION

Acrylic Protector including active heat management (FAN)

Antenna with uFL pigtail

Power Supply 5V6A with 1m USB-C mounted cable (EU/US variants)

16GB eMMC module

eMMC to usd adapter for flashing firmware

AI BUNDLE

Get your StarFive VisionFive2 board now with

Hailo-8L AI module

The AI module is based on the 13 tera-operations per second (TOPS) Hailo-8L AI processor with high power efficiency and cost efficiency.

Top New Arrivals

StarFive VisionFive 2 quad core RISC-V dev board

StarFive VisionFive 2 Starter Kit

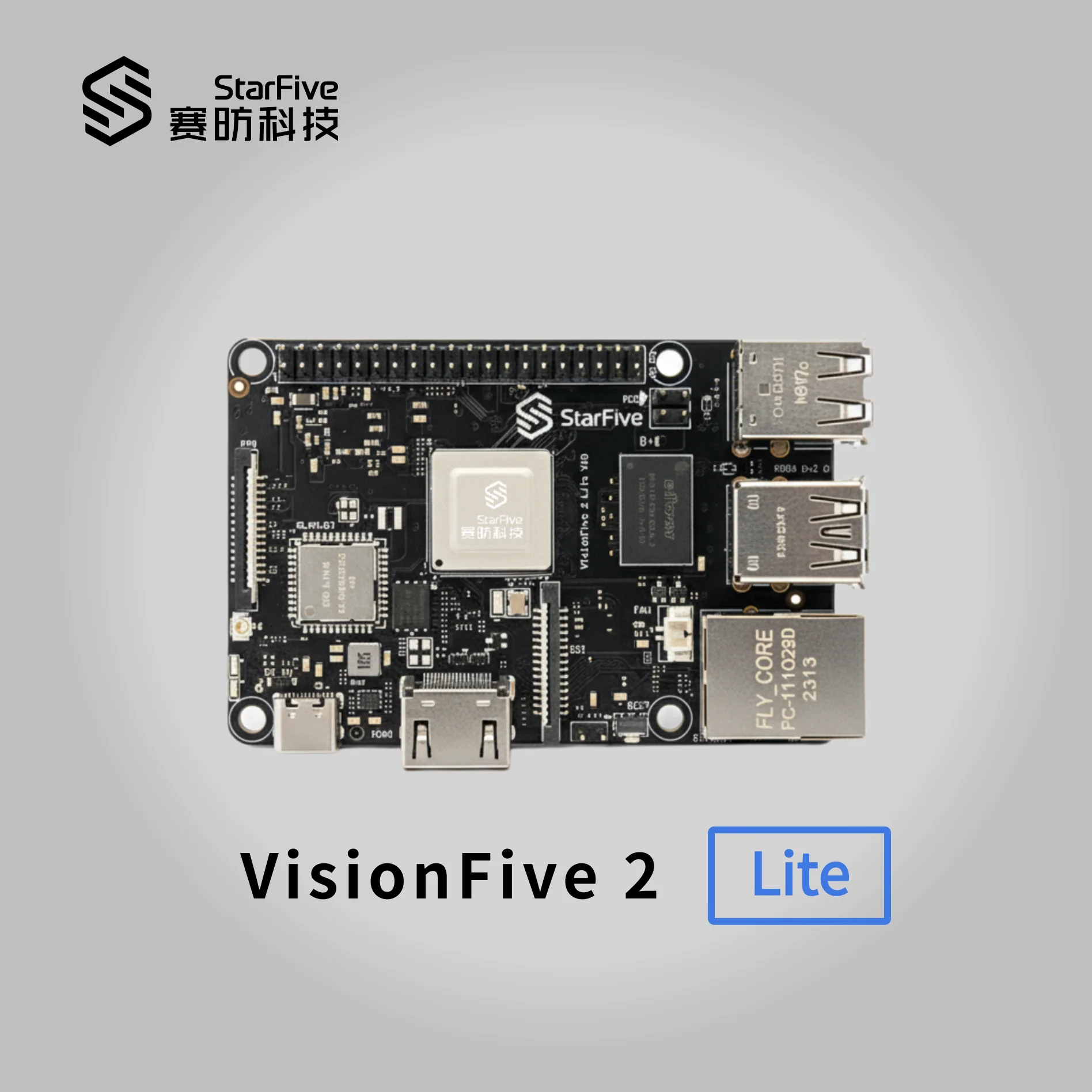

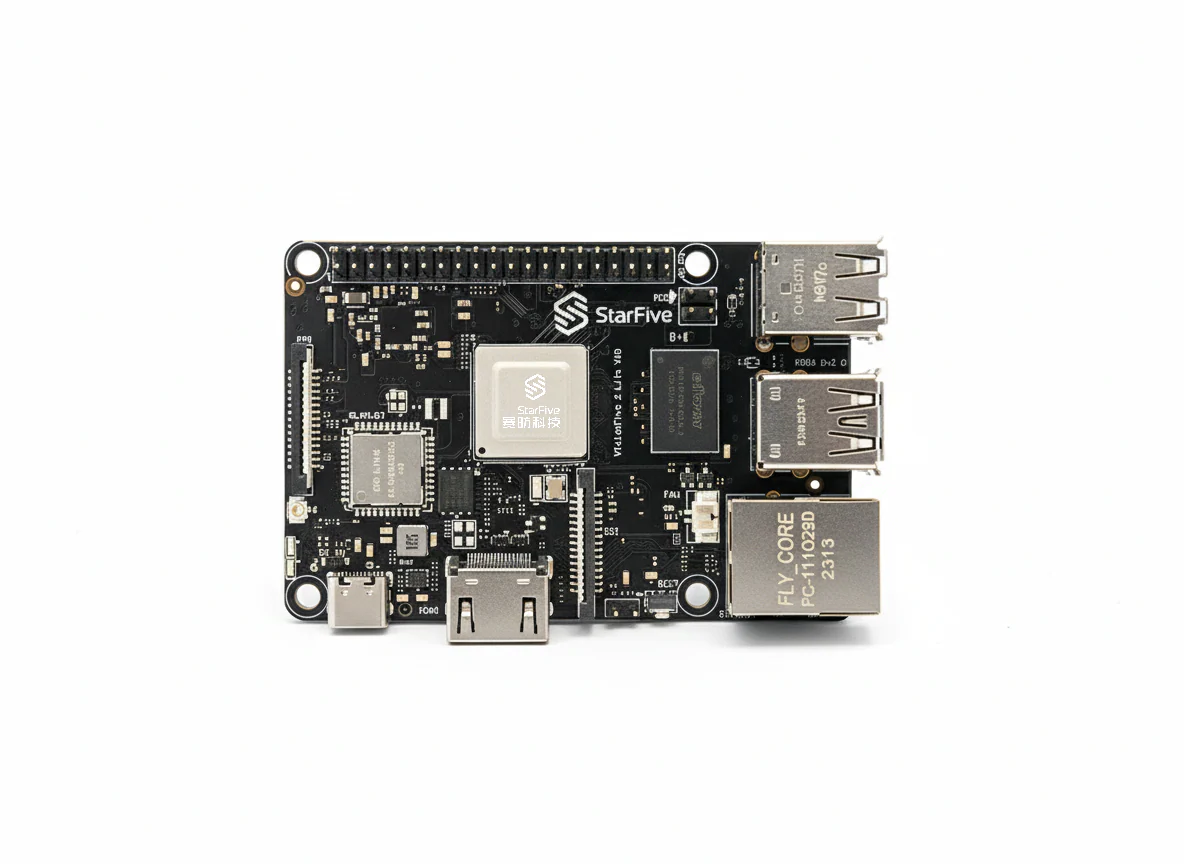

StarFive VisionFive 2 Lite quad core RISC-V single board computer
