Rockchip RK3528A quad core based SBC

The latest generation SBC based on RK3528A in the traditional form factor. Outstanding features and well priced make this SBC a highlight in this market segment.

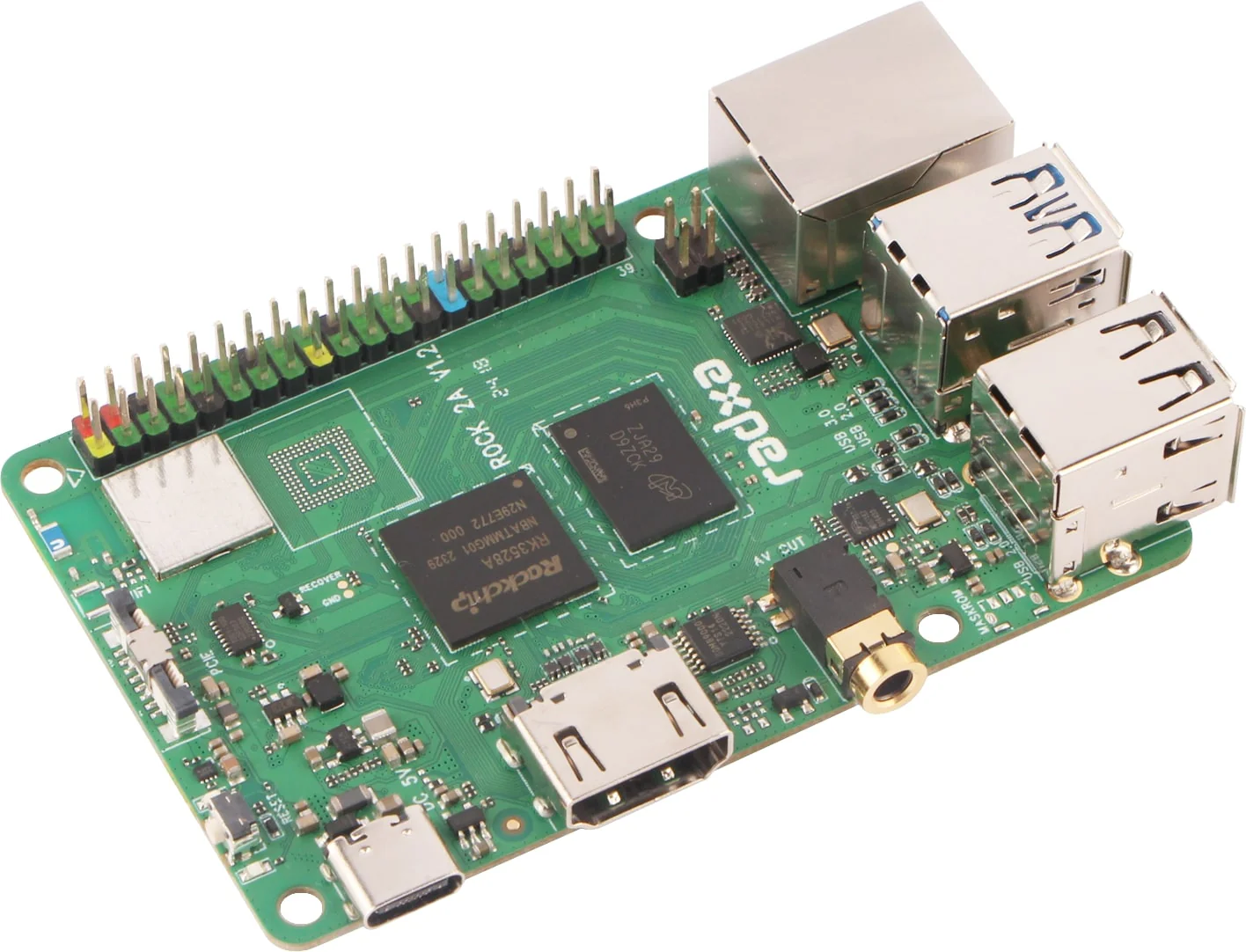

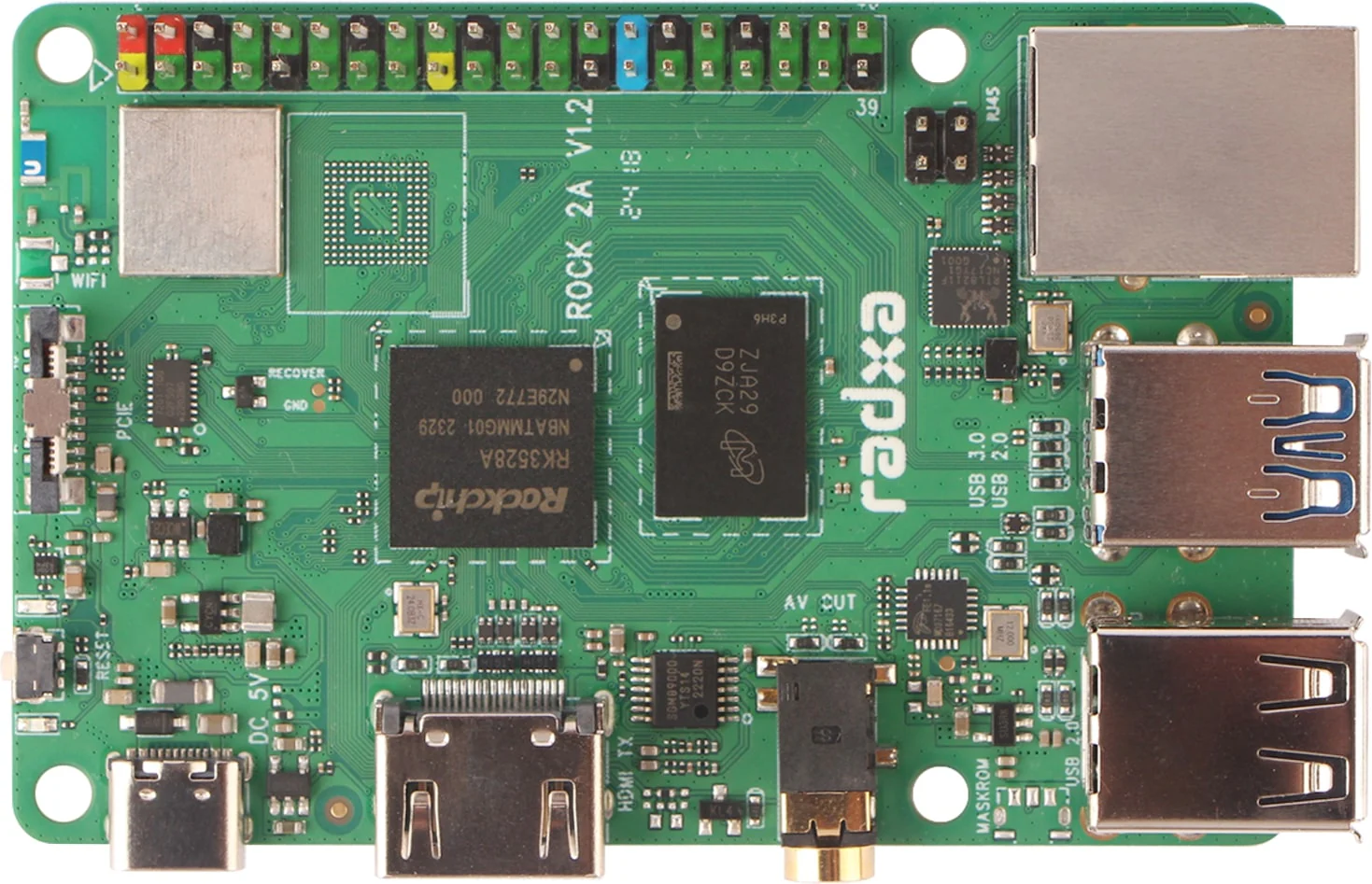

Rock 2A product details

RK3528A quad core SOC

Quad Core Cortex-A53

GPU

ARM Mali 450 GPU, OpenGL® ES 1.1/2.0，OpenVG® 1.1

H.264, H.265 and AVS2 decoder by 4Kx2K@60fps

H.264 and H.265 encoder by 1920x1080@60fps

Memory LPDDR4

LPDDR4 1, 2 & 4GB

eMMC module (onboard)

eMMC storage -/16G/32GB

Micro SD card

microSD card slot

Display HDMI

HDMI 2.0 up to 4k@60

AV OUT

AV OUT interface which delivers a resolution of 720x576 at 60Hz with audio output functionality

Peripherals

FPC connector PCIe 2.0 one‑lane signal support for expansion for SSD, SATA, 2.5G Ethernet ports and other devices via optional expansion board/HAT

Audio 3.5mm jack with mic

HD codec that supports up to 24-bit/96kHz audio

USB 3.0 OTG /HOST x1

USB 2.0 HOST x3

Network

Wireless / Bluetooth

IEEE 802.11 a/b/g/n/ac/ax (WiFi 6) and BT 5.4 with BLE

LAN

GbE LAN with PoE support

*additional HAT is required for powering via PoE

IO 40-pin expansion header :

- 2 x I2C
- 4 x UART
- 1 x SPI
- 5 x PWM
- 1 x ADC
- 6 x GPIO
- 2 x 5V DC power in/out
- 2 x 3.3V power out

Software

ArmV8 Instruction Set

Debian/Ubuntu Linux support

Hardware access/control library for Linux/Android

Others

Power button

Power USB-C port min fixed 5V/2A (alt. via GPIO pin 2 & 4)

Operational temperature 0-50 deg C

FCC/ CE certified

Size 85mm x 54mm

Availability of the ROCK 2A until at least September 2033

Essentials You Need

ROCK 2A
Power adapter min 5V/2A with USB- C port
Keyboard & Mouse
Monitor with HDMI input

______________________________________________________

Additional information & Setup instructions

under preparation

______________________________________________________

RADXA ROCK 2

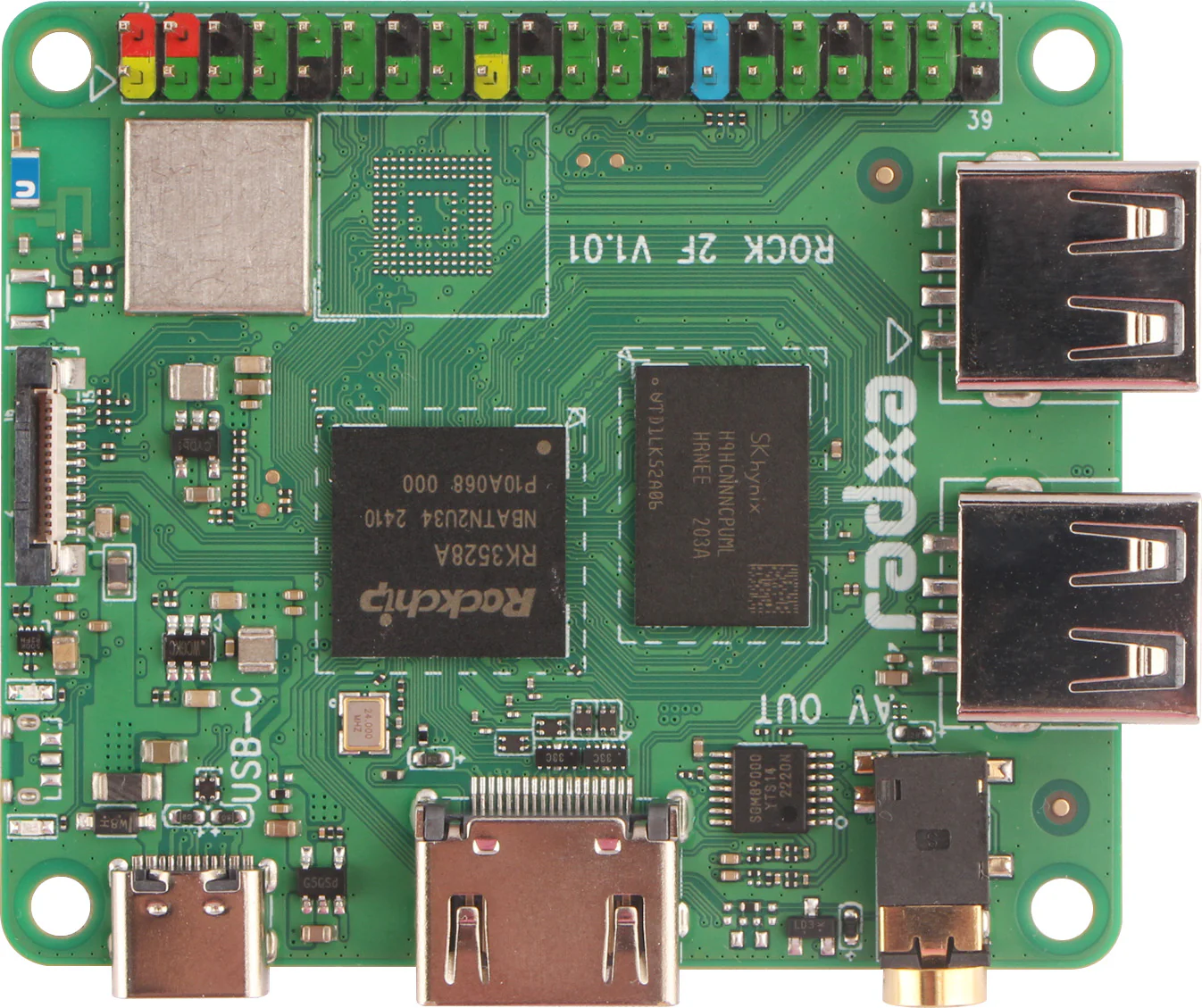

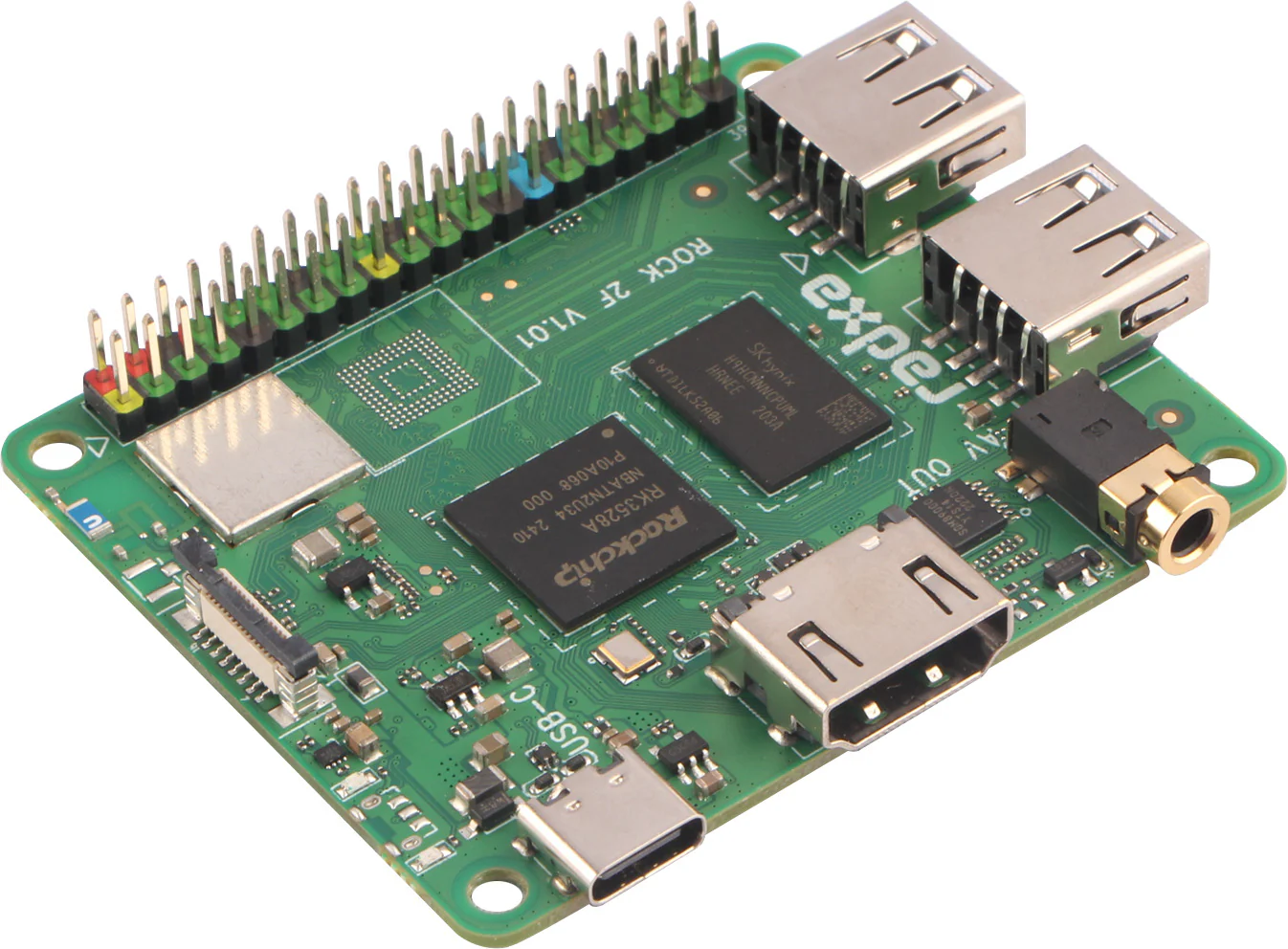

ROCK 2F
