QuinLED-ESP32

Custom ESP32 development board

• ESP32 WROOM32 module version “D or E” on board
• Enhanced onboard capacitors
• USB-C host port
• PTC fuse / 5V 750mA
• 800mA onboard linear 3.3v converter
• Onboard CH340C USB-to-serial chip
• Enhanced pin-out
• Small form factor
• -->Also available as "legacy" version for previous QuinLED boards

3 available versions:

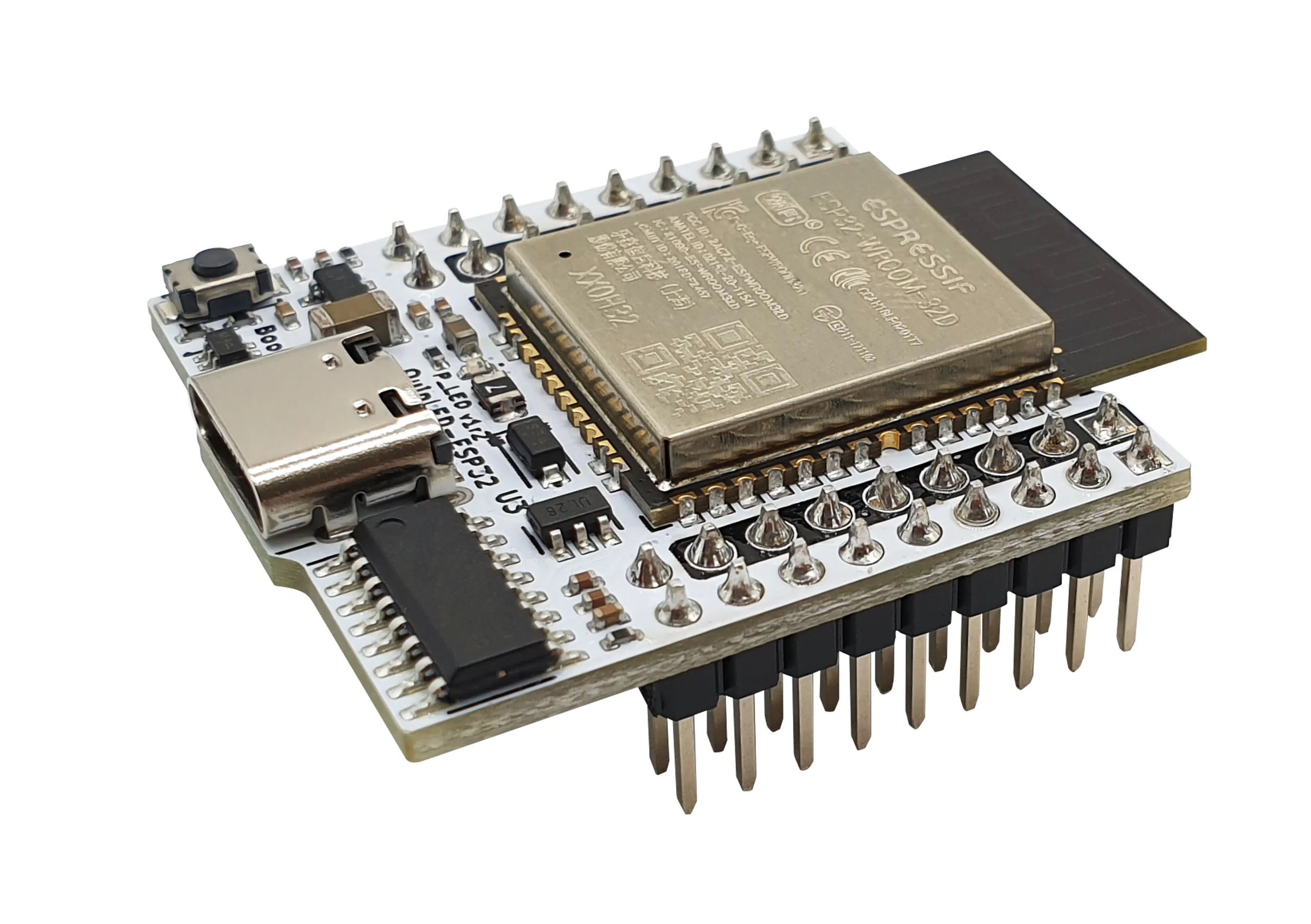

• QuinLED-ESP32-AB (Antenna Board)

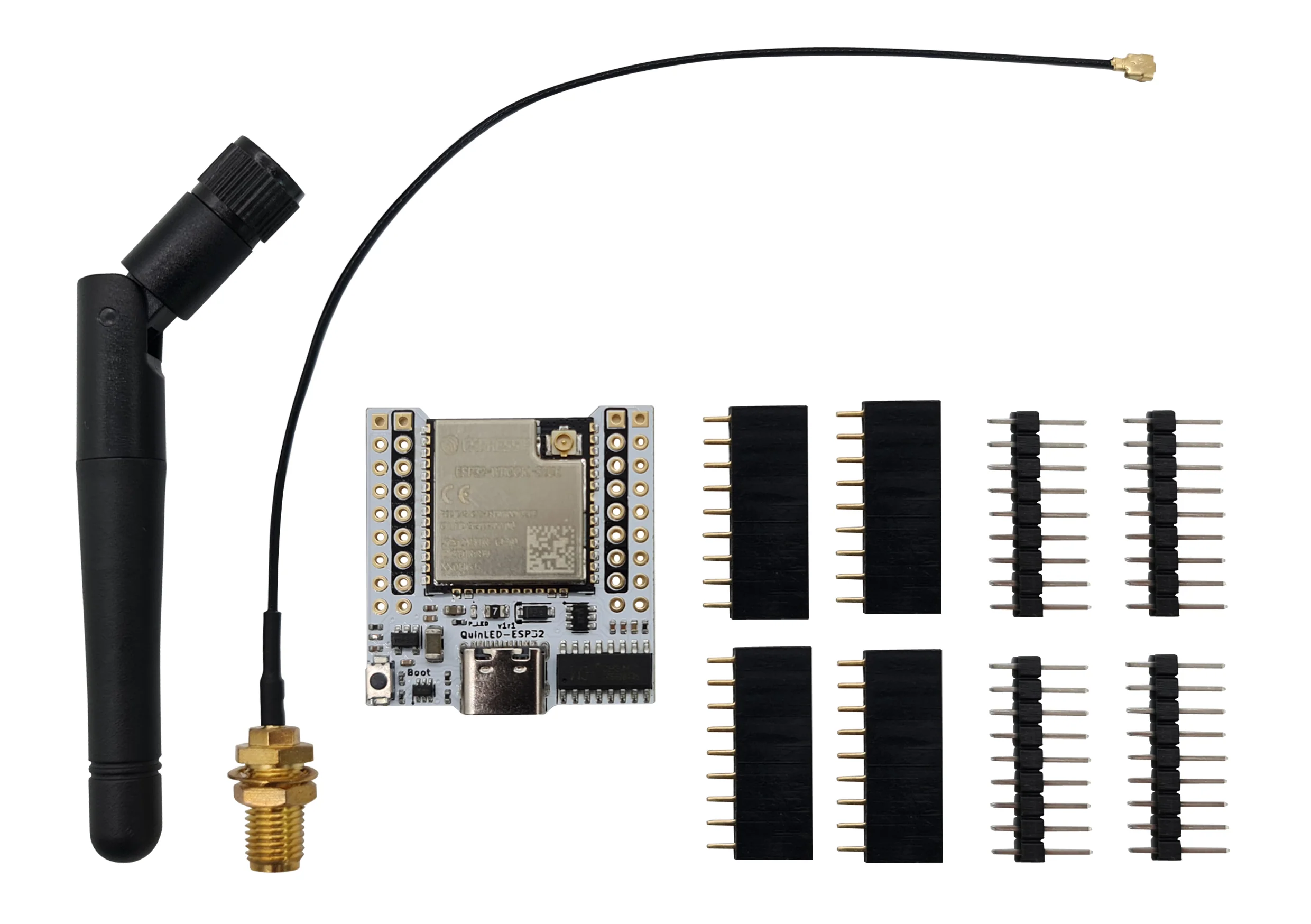

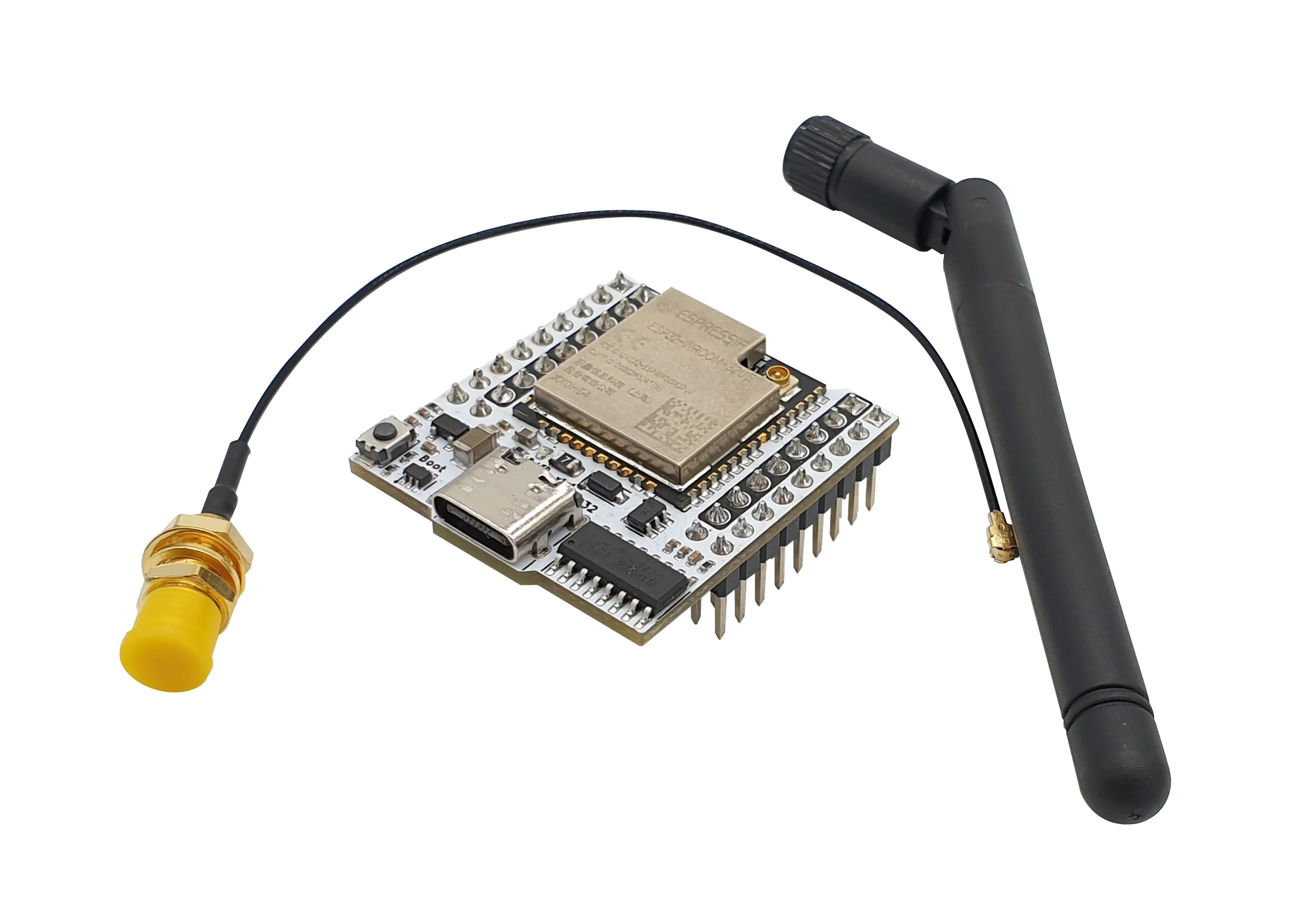

• QuinLED-ESP32-AE (Antenna External)

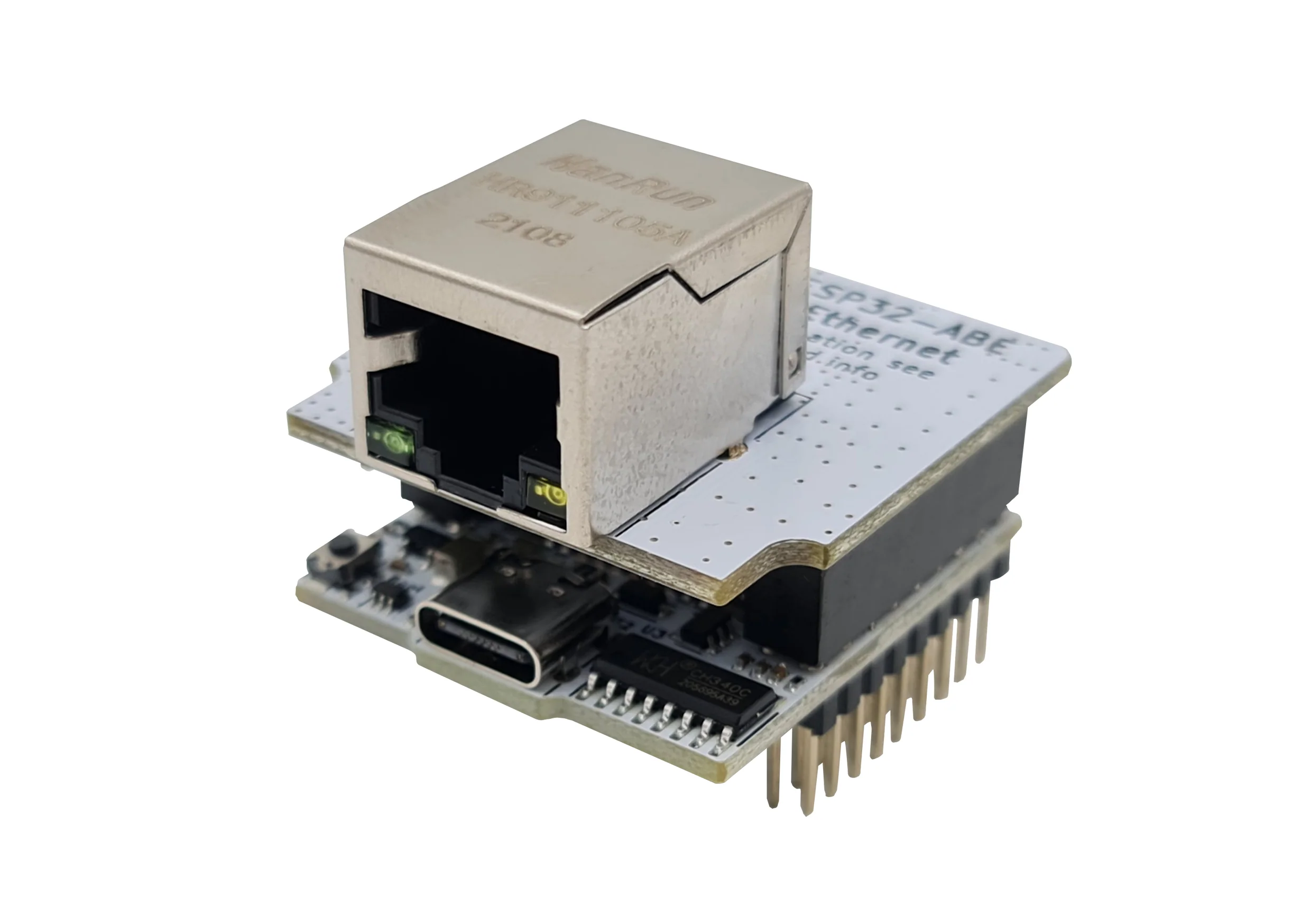

• QuinLED-ESP32-ABE (Antenna Board + Ethernet top board)

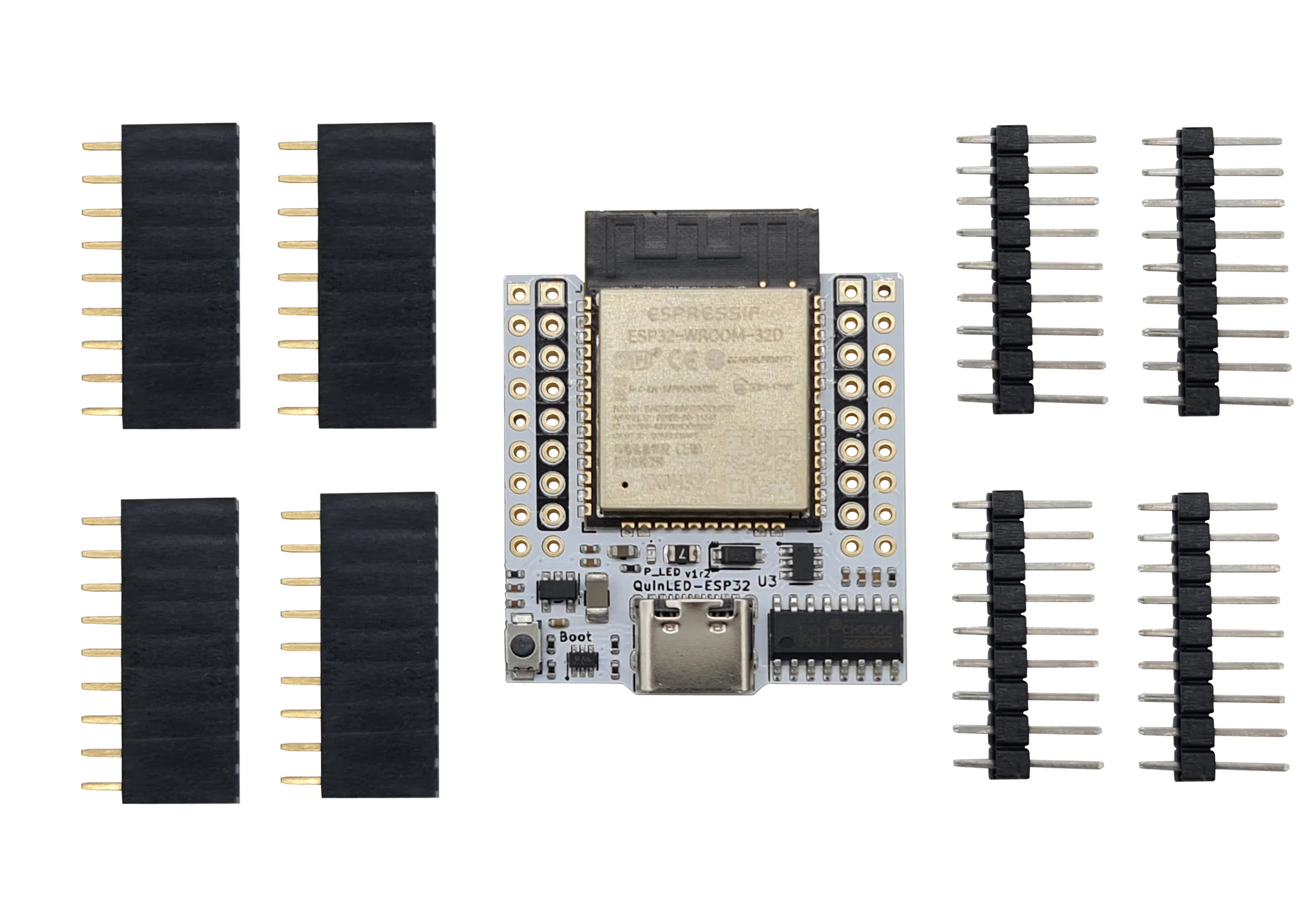

Product content:

• QuinLED ESP32 module
• various pin headers
