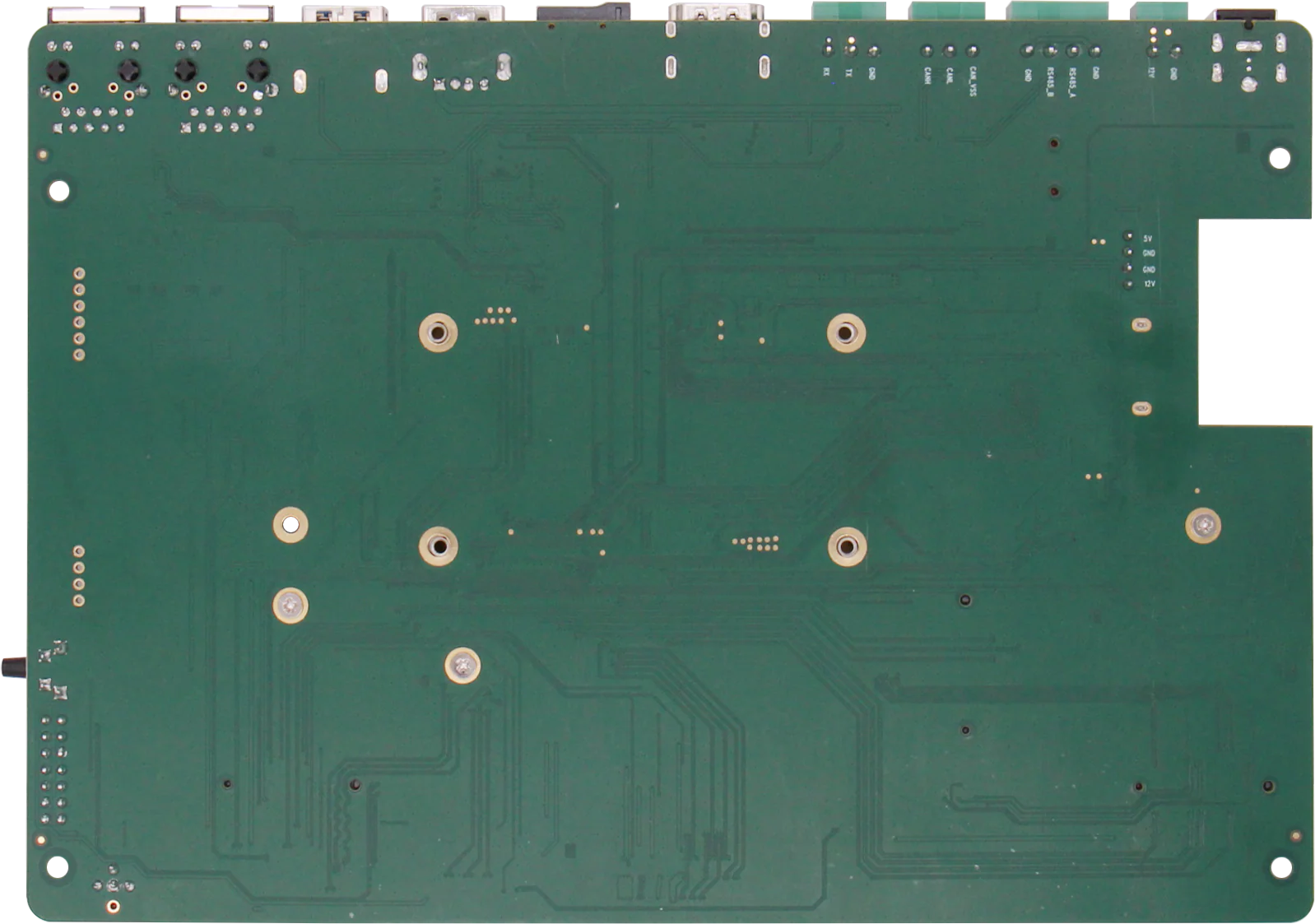

RADXA CM3I IO Board

Radxa CM3I IO Board is an application board for the Radxa CM3I Compute Module

Powered by the CM3I module - the Radxa CM3I IO board enables access to the complete feature set this Computing Module provides.

Features:

• Designed for Radxa CM3I
• Half mini-ITX design (170*85mm), compatible to standard ATX case
• Multiple display interfaces, HDMI, 1x MIPI DSI, eDP with touch panel

• 1x SATA
• Ubuntu/Debian and Android support

Technical Details:

Supported CM´s

RADXA CM3I (J)

Connectivity

1 x USB 2.0 HOST Type-A port
1 x USB 3.0 OTG Type-A port

1 x PCIe 1-lane Host, Gen 2 ( 5Gbps, x1 PCIe connector )
1 x SATA 7P connector

1x microSD card

1x RS232

1x RS485

1x CAN

1x M.2 E Key Connector for WiFi /BT

1x M.2 B Key Connector with SIM card for 4G Mobile Network

1x SIM card slot for 4G Mobile Network

Networking

2x Gigabit Ethernet RJ45 ( 1x with PoE support)

Video

1x HDMI

1x eDP with touch panel

1x MIPI DSI

Camera

2x MIPI CSI

Storage

1x Micro SD Card

1x SATA 3.0 with PSU

1x M.2 M Key Connector for 2280 NVMe SSD

Other

RTC battery seat

14 pin GPIO header

1x FAN header 4-pin

1x Recovery Button

1x Power Button

Power

DC 12V 2.5/5.5mm

Dimension

160 mm × 90 mm

Product lifetime

Radxa CM3I IO Board will remain in production until at least Sep 2029
