RADXA Dragon Q6A

RADXA Dragon Q6A

Qualcomm® QCS6490 al low powered SBC for industrial IoT, edge AI and smart terminals

Processor

Qualcomm® QCS6490 SoC
- 1 × Kryo Prime @ 2.7 GHz + 3 × Kryo Gold @ 2.4 GHz + 4 × Kryo Silver @ 1.9
GHz
- GPU:  Qualcomm® Adreno 643 (OpenGL® ES 3.2/2.0/1.1, Vulkan® 1.1/1.2/1.3, OpenCL™ 2.2, DirectX Feature Level 12)

DSP and AI Engine
- Compute Hexagon DSP with dual Hexagon Vector eXtensions (HVX)
- Additional Hexagon coprocessor 2.0 that complements the main CPU and DSP
- Hexagon Tensor Accelerator

RAM

LPDDR5 RAM 5500MT/s

4GB /6GB /8GB /12GB /16GB

Onboard eMMC 5.1/UFS 3.0 2-lane module connector for high-performance embedded storage

- optional eMMC storage modules 16GB, 32GB and 64GB

- optional UFS storage modules 128GB, 256GB and 512GB

Onboard SPI Flash for Bootloader

VPU: Adreno video processing unit 633

• Video decode up to 4K60 for H.264/H.265/VP9
• Video encode꞉ Up to 4K30 for H.264/H.265
• Video concurrency꞉ 1080p60 decode and 1080p60 encode/ 4K30 decode +
  1080p30 encode
• HDR playback꞉ Support for HDR10 and HDR10+
• HFR capture꞉ 720p at 480 fps or 1080p at 240 fps

Interfaces

Display

1× HDMI® Output Interface, supporting up to 4Kp30 resolution

1x MIPI DSI Interface (four lane MIPI DSI)

Camera

1x four lane MIPI CSI and 2x dual lane MIPI CSI Interface

Wireless

IEEE 802.11 a/b/g/n/ac/ax (WiFi 6) and Bluetooth 5.4 with BLE (2x external Antenna Conn)

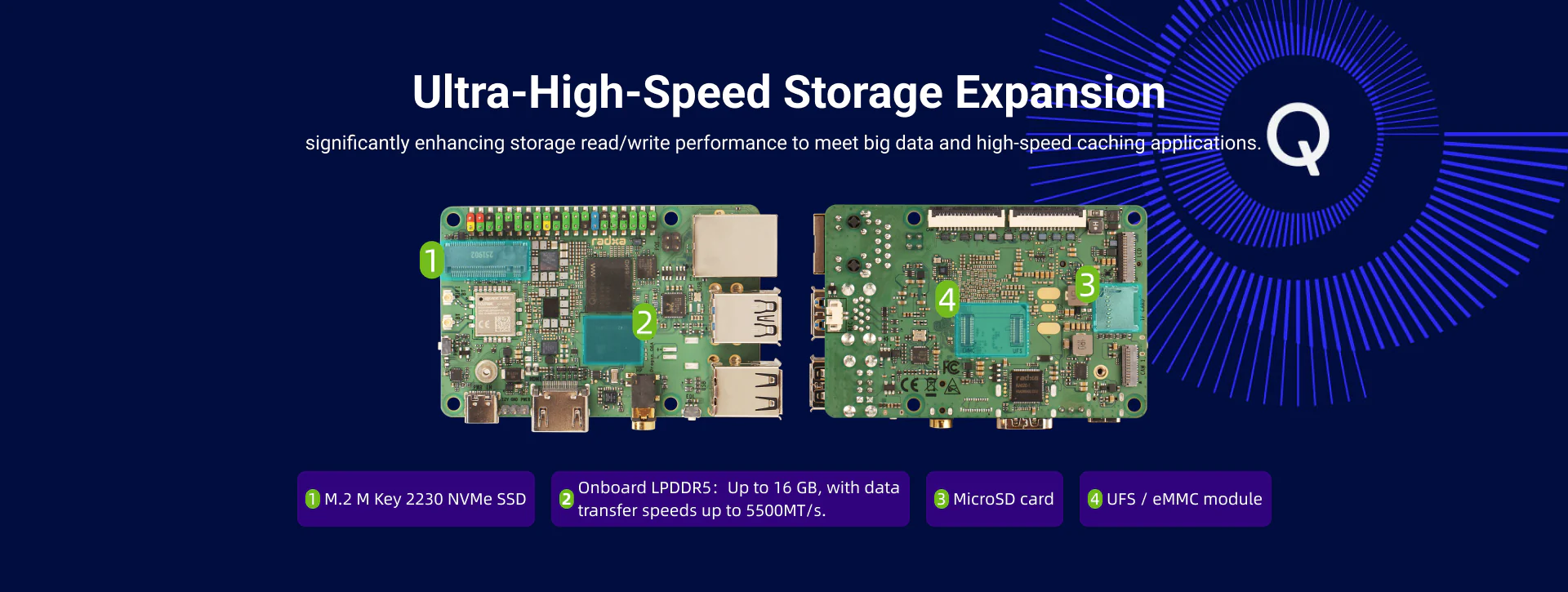

Storage

1x Micro SD card slot

1x M.2 M Key Connector with PCIe® Gen3 (2‑lane) for M.2 2230 NVMe SSD

1x eMMC & UFS Module Combo Connector

USB

1x USB 3.1 Type A HOST Port

3x USB 2.0 Type A HOST Port

1x USB 2.0 OTG Type C® Port for Data and Power

Ethernet

1x Gbit LAN Port with (1x PoE support via optional PoE hat)

GPIO

40-pin expansion header supporting:

• UART, I2C, SPI, GPIO, PWM

• 2 x 5V DC power in/out
• 2 x 3.3V DC power out

Other

• 1x power button

• 2 pin RTC battery header

Software

・Supports Radxa OS, Ubuntu Linux, Deepin Linux, Armbian, Arch Linux, Qualcomm®
Linux (Yocto based), and Windows on Arm

・ Hardware access/control library for Linux and Android platforms

Power

USB Type‑C PD power supply with 12V capable, (min. 18W, with USB and PCIe peripherals >24W)

Size

56mm x 85mm

Operation temperature:

0°C to 60°C

Certifications:

FCC, CE, RoHS

Availability:

until at least September 2035
