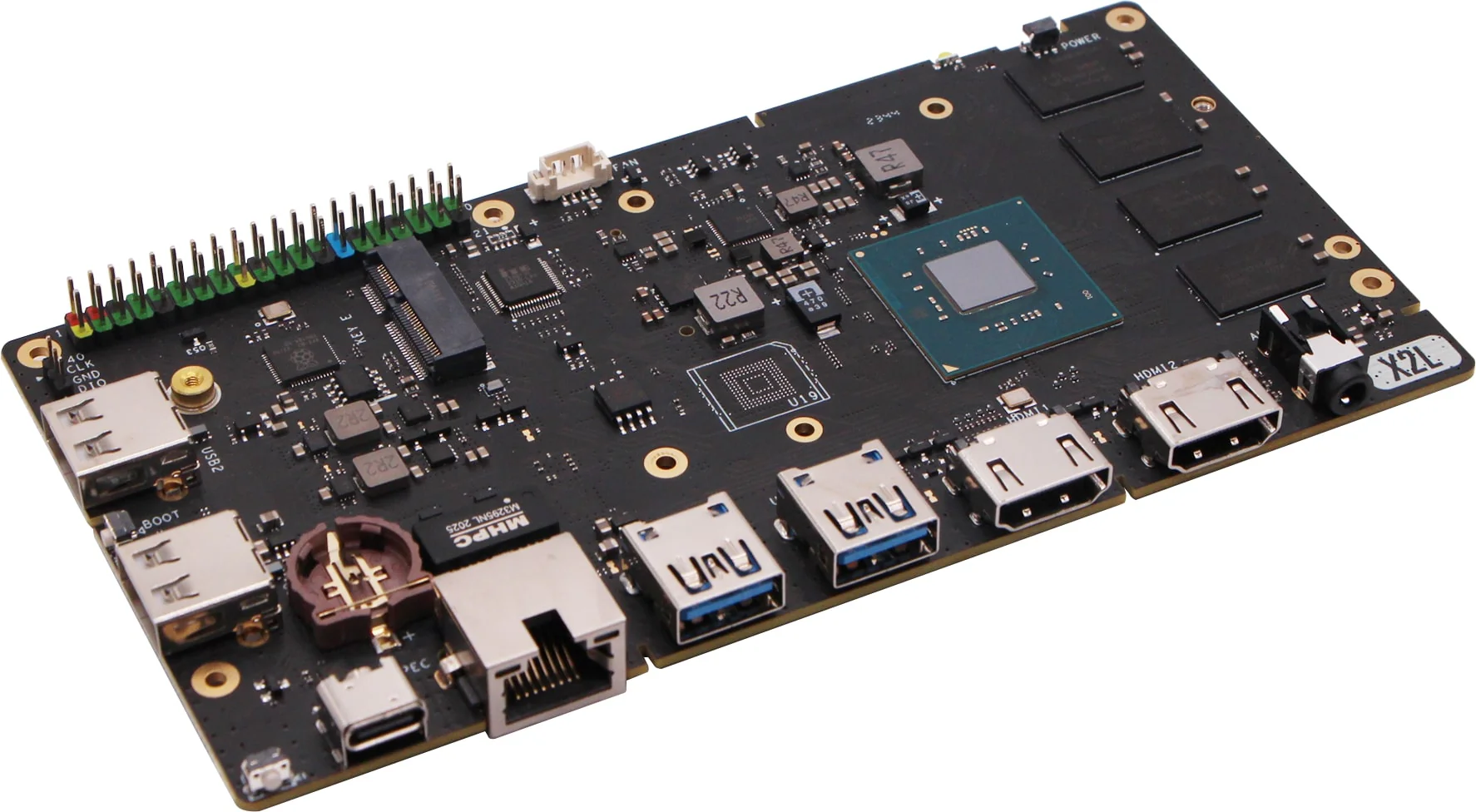

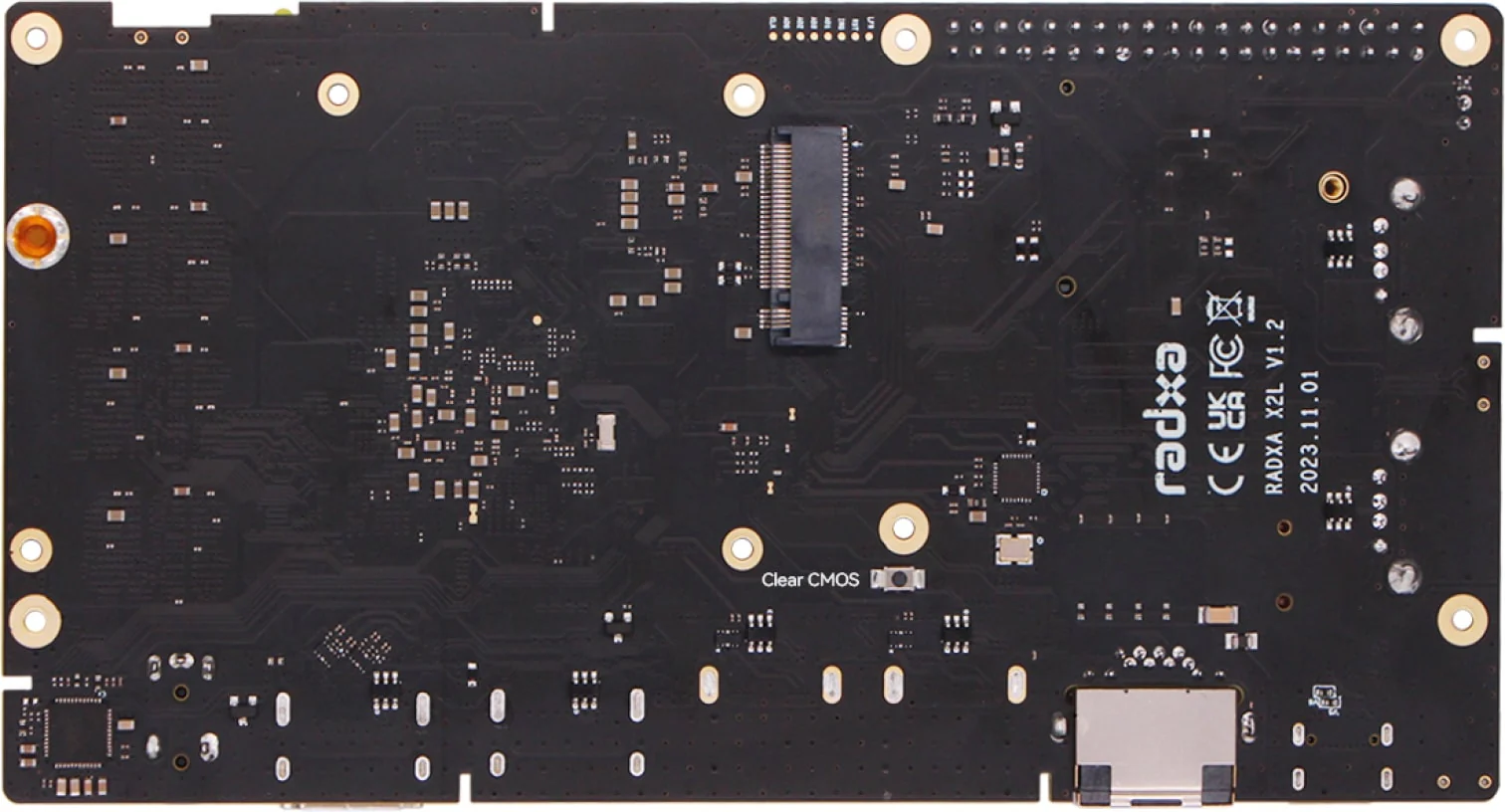

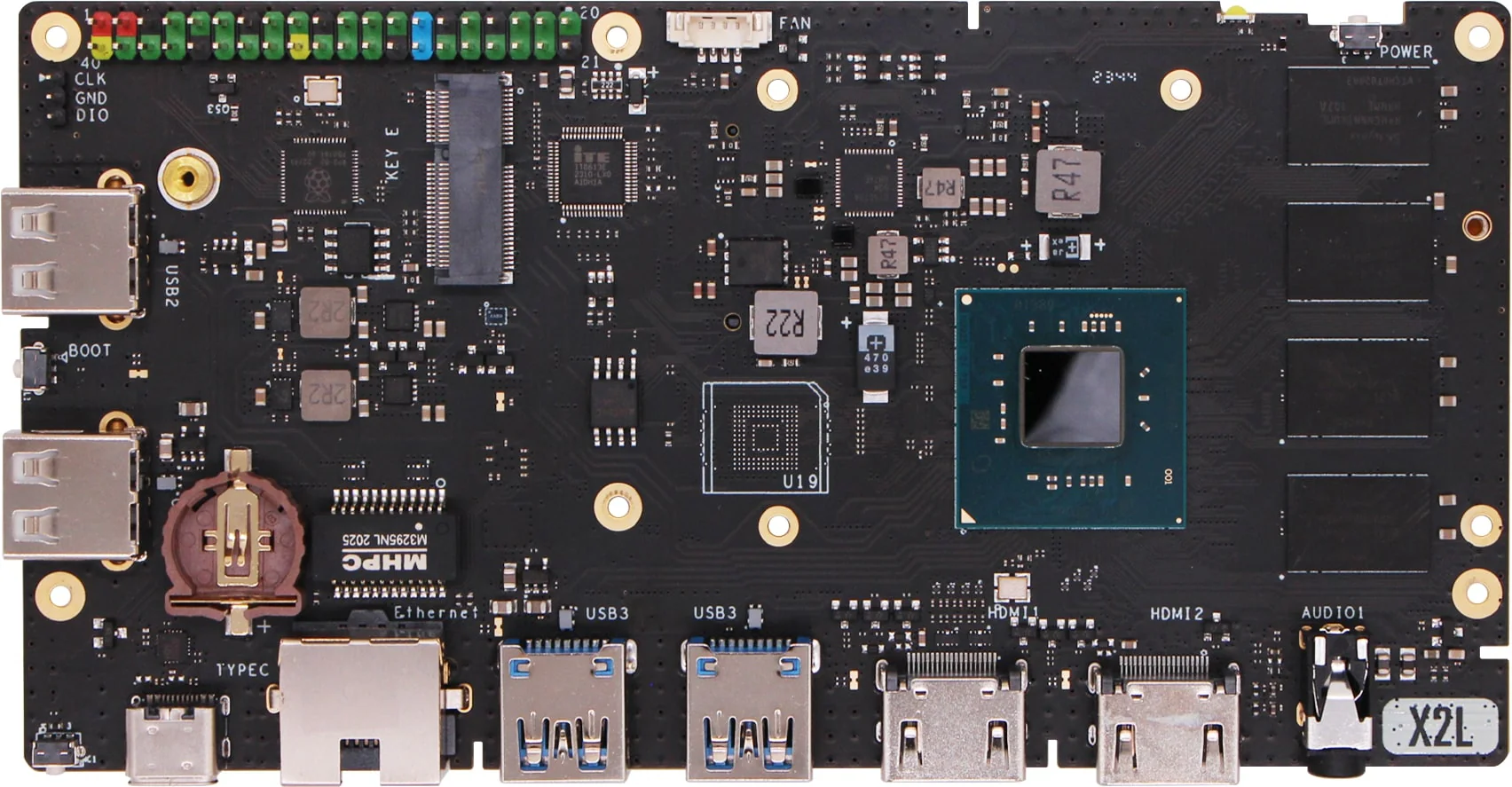

RADXA X2L

RADXA X2L

The new Intel® Celeron® J4125 based low profile SBC from RADXA

Processor

Intel®Celeron®Processor J4125
Quad-core processor / 4 Threads @ 2.00 GHz
Burst frequency 2.70 GHz

Intel® UHD Graphics 600
Graphics Base Frequency: 250MHz
Graphics Burst Frequency: 750MHz
DirectX Support: 12
OpenGL Support: 4.4

Memory

LPDDR4@2400 MT/s

2GB /4GB /8GB options

Interfaces

Display

2x HDMI with up to 4k@30

Audio

3.5mm headphone jack with mic input

Wireless

1x M.2 E Key Connector for WiFi / BT Module

Storage

1x M.2 M Key Connector (4-lane PCIe 2.0) for M.2 NVMe SSDs (for OS boot and storage)

USB

2x USB 3.0 HOST Type A
2x USB 2.0 HOST Type A

Ethernet

1x GbE LAN (RTL8111H)

IO

40-pin expansion header

• up to 2 x UART
• up to 2 x SPI
• up to 2 x I2C
• up to 8 x PIO (Programmable IO)
• up to 16 x PWM
• 1 x 5V DC power in
• 2 x 3.3V DC power out

Other

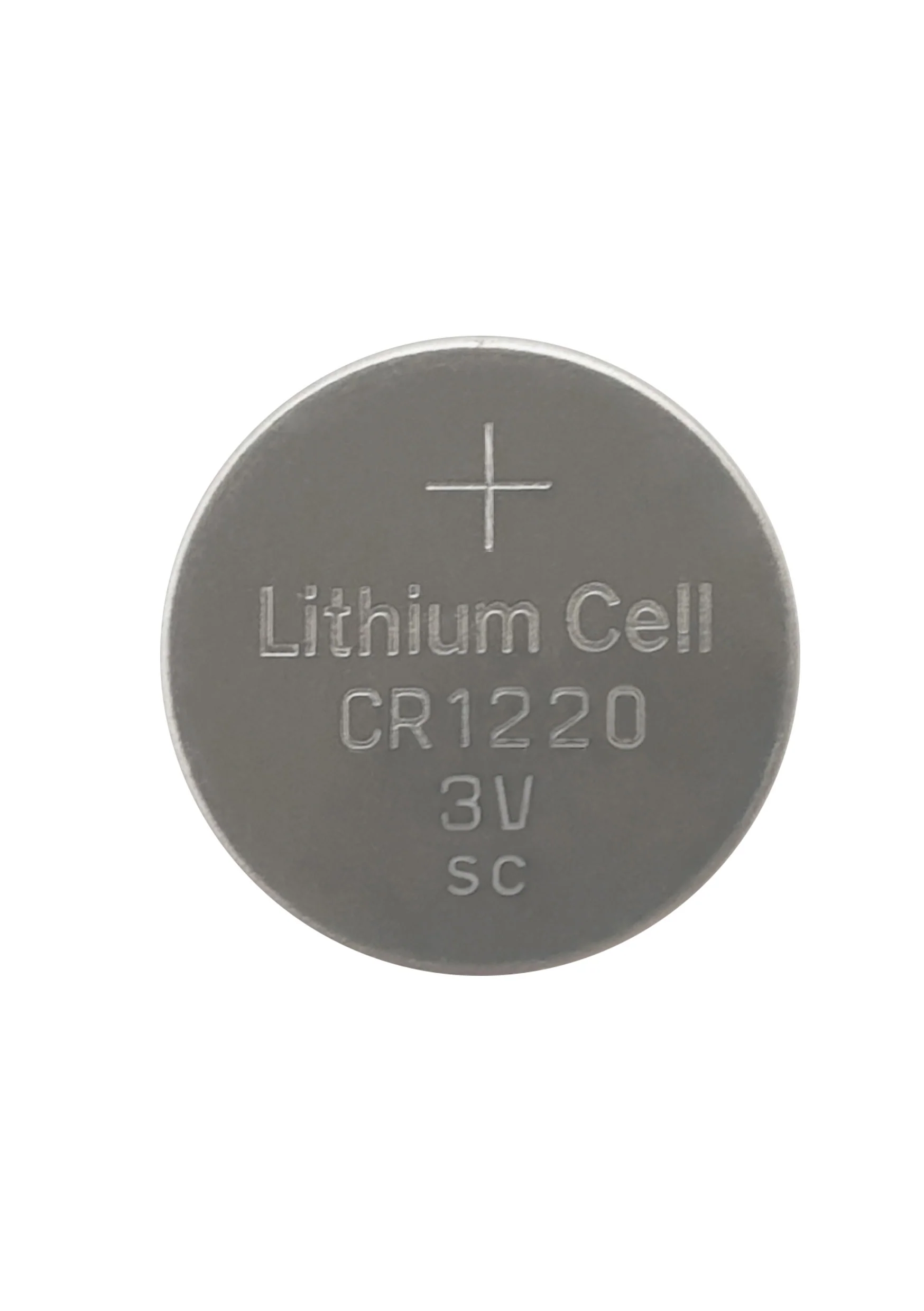

RTC battery socket

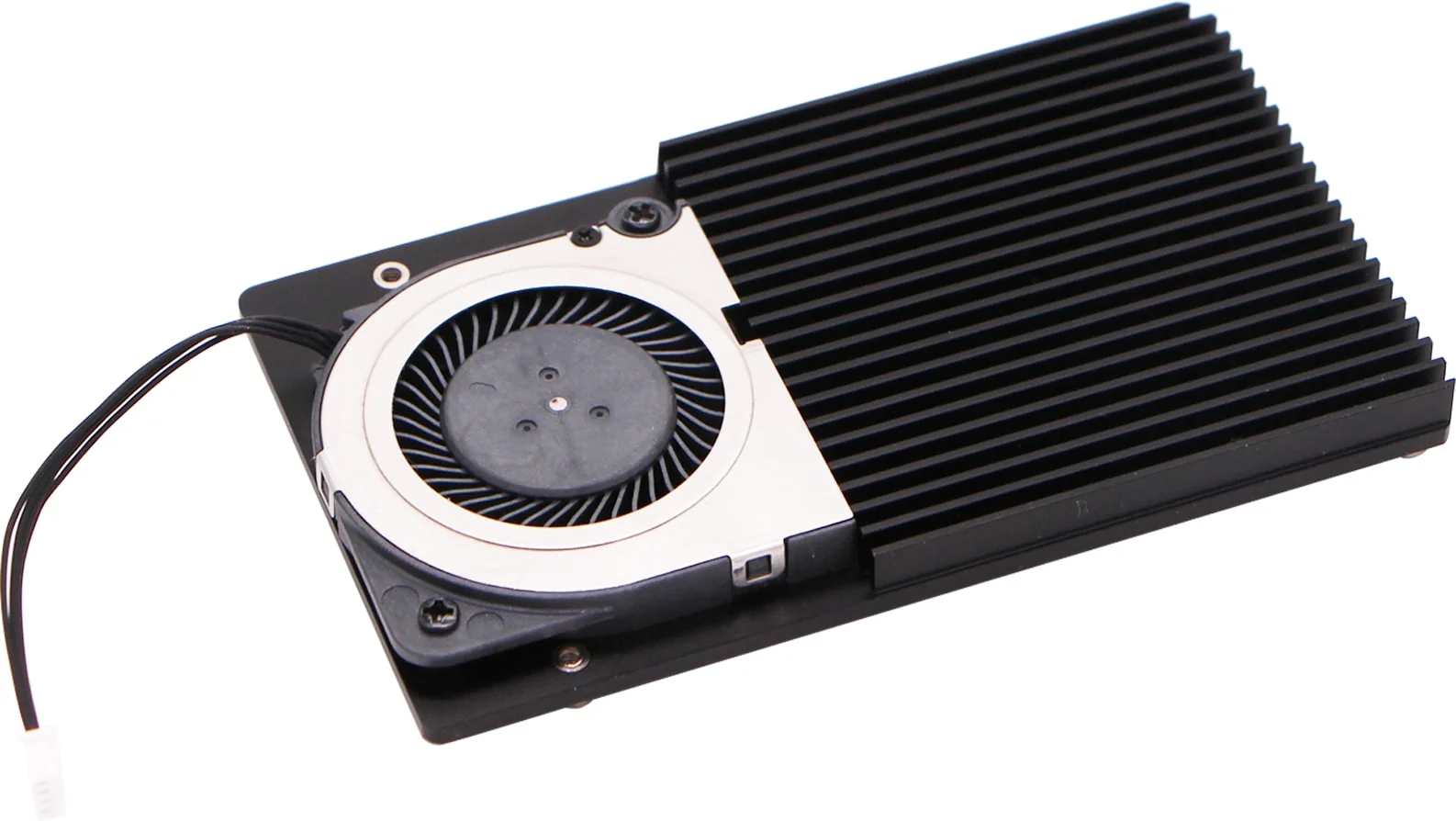

4-pin 1.25mm fan header

3-pin debug header

4x buttons:

• 1x power button
• 1x BOOTSEL Button for RP2040
• 1x User Button
• 1x Clear CMOS Button

Software

Intel® 64 Instruction Set
Windows 10 64-bit
Debian / Ubuntu Linux support
Hardware access/control library for Linux

Power

USB PD, support USB Type C PD 2.0, 9V/2A, 12V/2A, 15V/2A, 20V/2A.
Power adapter with fixed voltage in 9 to 20V range via the USB Type C port

Size

80.6mm x 155.6mm

Operation temperature:

0°C to 50°C

Certifications:

FCC, CE, RoHS

Availability:

until at least September 2030
