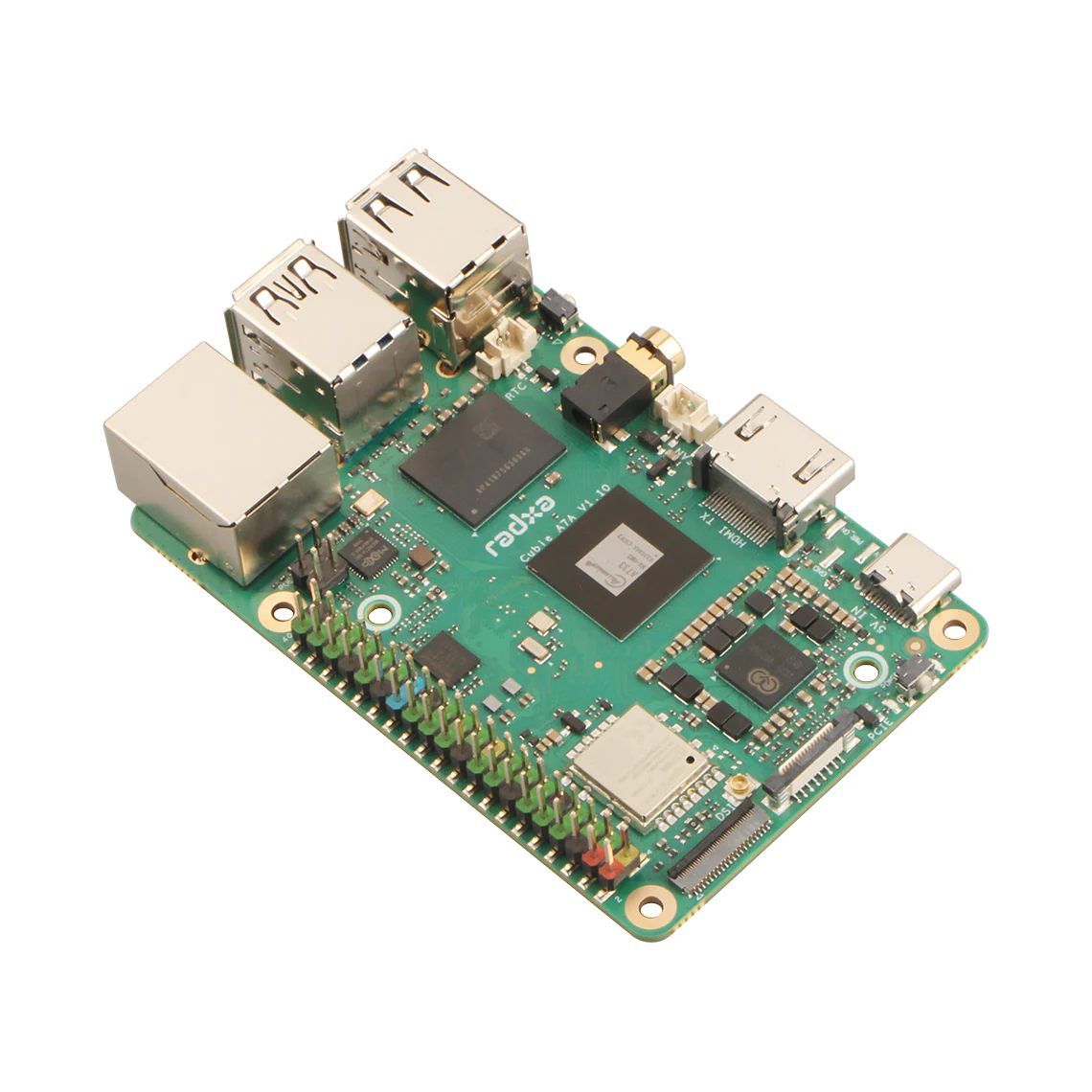

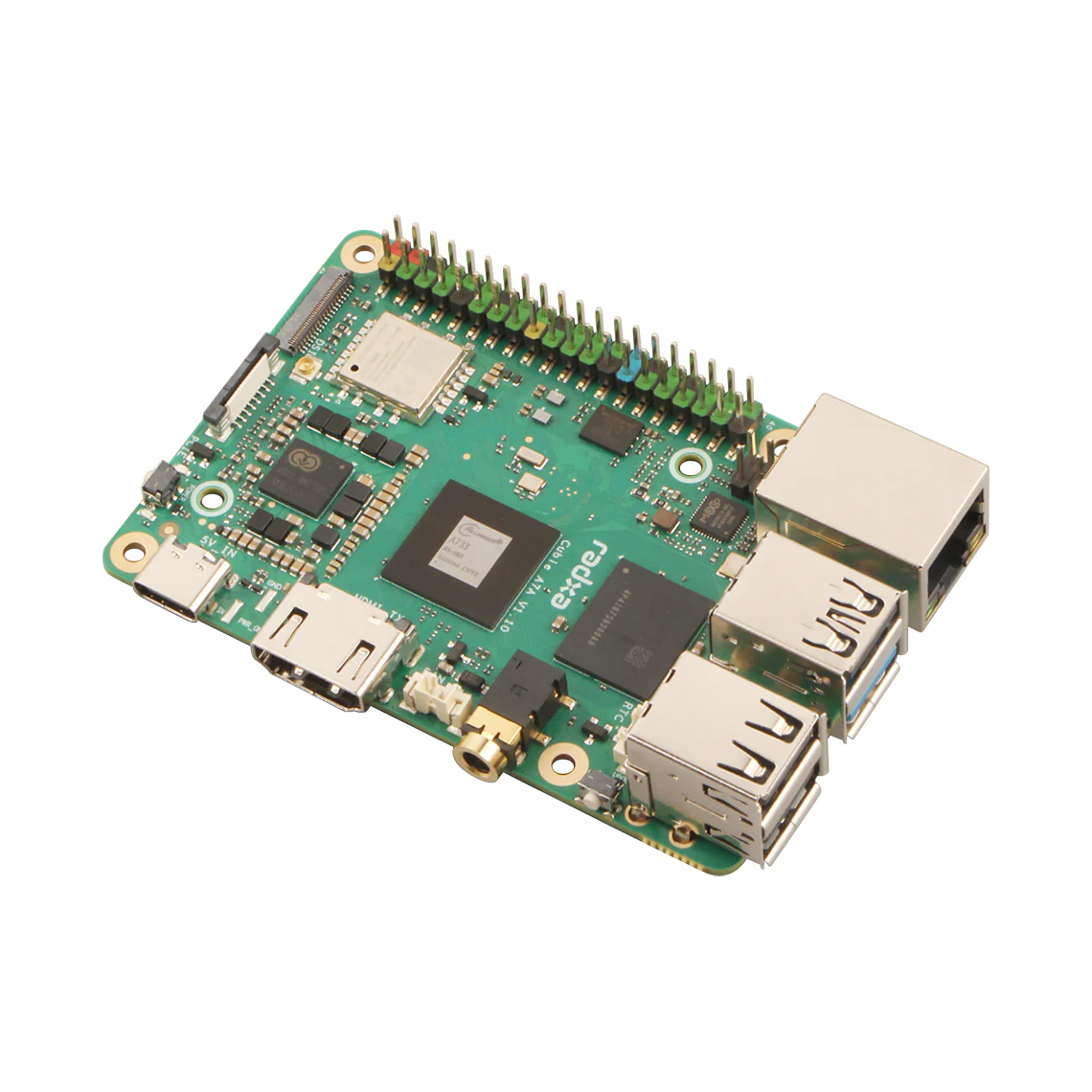

RADXA Cubie A7A

Allwinner™ A733 SoC powered SBC for affordable edge AI innovation

Processor

Allwinner™ A733 SoC
- Octa-Core CPU: Dual-Core Cortex - A76 @2.0GHz & Hexa-Core Cortex - A55 @1.8GHz
- NPU: 3TOPS AI accelerator for real-time edge inference

Imagination BXM-4-64 MC1 GPU
- OpenGL® ES 3.2
- Vulkan® 1.3
- OpenCL™ 3.0

RAM

LPDDR5 RAM

2GB /4GB /6GB /8GB /12GB

Onboard eMMC 5.1/UFS 3.0 2-lane module connector for high-performance embedded storage

- optional eMMC storage modules from 8GB to 128GB

- optional UFS storage modules from 64GB to 1TB

Onboard SPI Flash for Bootloader

H.265MP/VP9/AVS2 multivideo decoder up to 8K@24fps
H.264BL/MP/HP multivideo decoder up to 4K30fps
H.264BP/MP/HP multivideo encoder up to 4K@30fps
MJPEG encoder up to 4K@15fps, JPEG encoder up to 8K x 8K resolution
Supports AES/DES/3DES/SM4 encryption and decryption algorithms

Interfaces

Display

1x HDMI® port up to 4Kp60

1x MIPI DSI Interface (four lane MIPI DSI)

Camera

1x four lane MIPI CSI or 2x dual lane MIPI CSI Interface

Wireless

IEEE 802.11 a/b/g/n/ac/ax (WiFi 6) and Bluetooth 5.4 with BLE (external Antenna Conn)

Storage

1x Micro SD card slot

1x PCIe 3.0 single-lane FPC Connector

USB

1x USB 3.1 Type A HOST Port

3x USB 2.0 Type A HOST Port

1x USB 2.0 OTG Type C® Port for Data and Power

Ethernet

1x Gbit LAN Port with (1x PoE support via optional PoE hat)

GPIO

40-pin expansion header supporting:

UART, I2C, SPI, GPIO, PWM
2 x 5V DC power in/out
2 x 3.3V DC power out

Other

1x power button
2 pin RTC battery header

Software

・Debian Linux® support

・Android™ 13 support (Android 13 support requires the official BSP or vendor‑provided SDK. Actual feature set may depend on further validation and licensing)

・ Hardware access/control library for Linux

Power

USB Type‑C with min 5V/3A ( alternative via PoE HAT)

Size

56mm x 85mm

Operation temperature:

0°C to 60°C

Certifications:

FCC, CE, RoHS

Availability:

until at least September 2034

RADXA Cubie

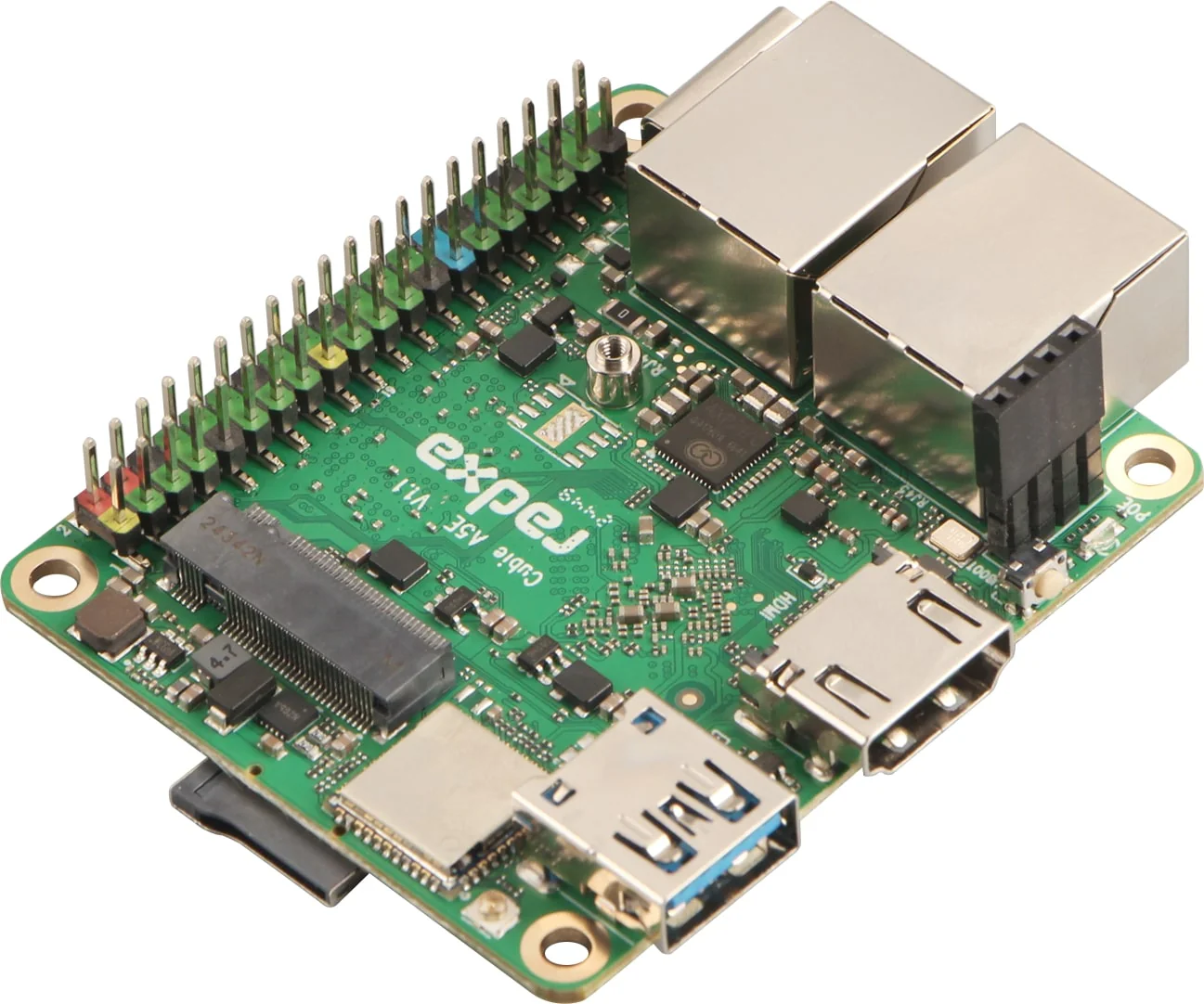

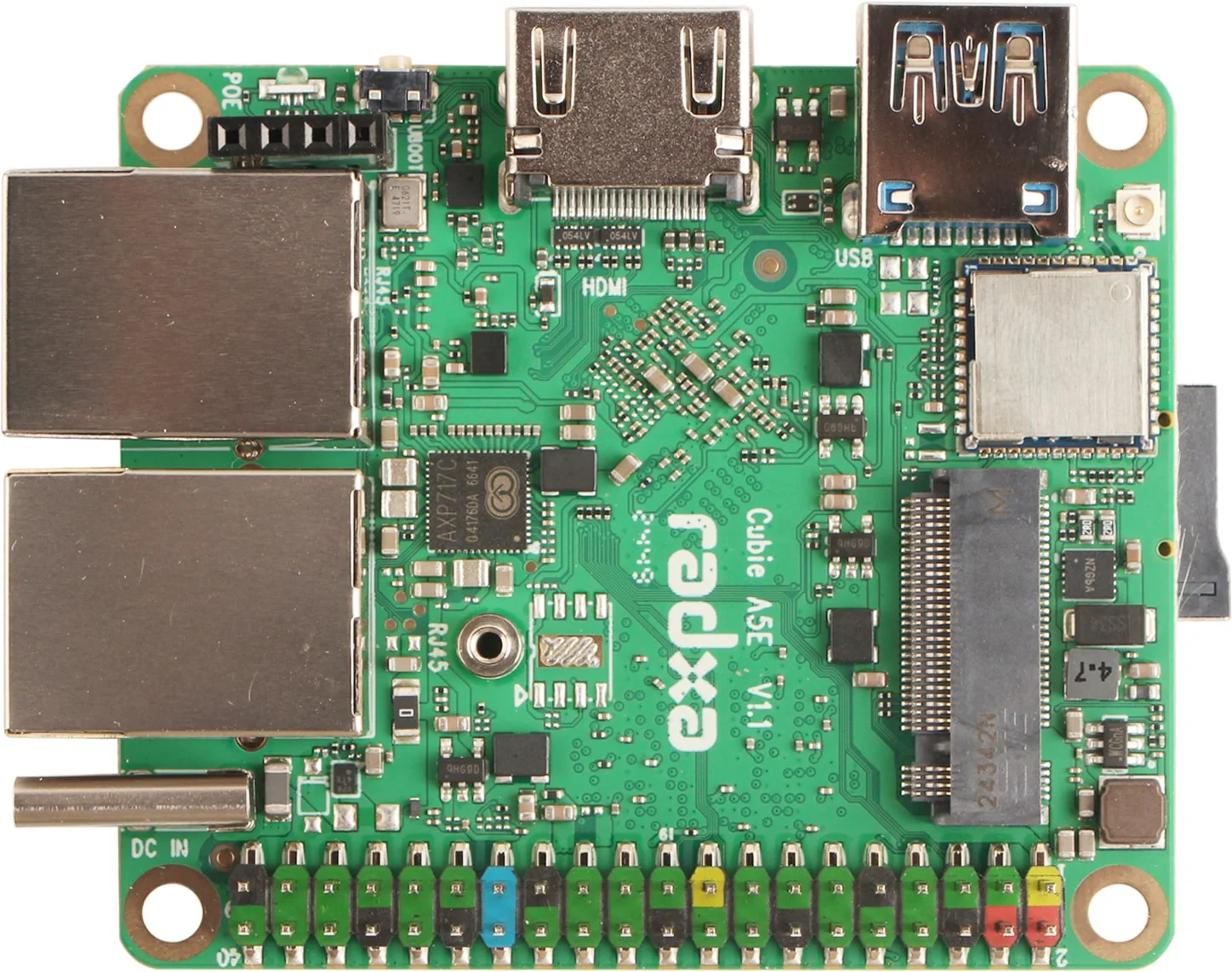

RADXA Cubie A5E

RADXA Cubie A7A

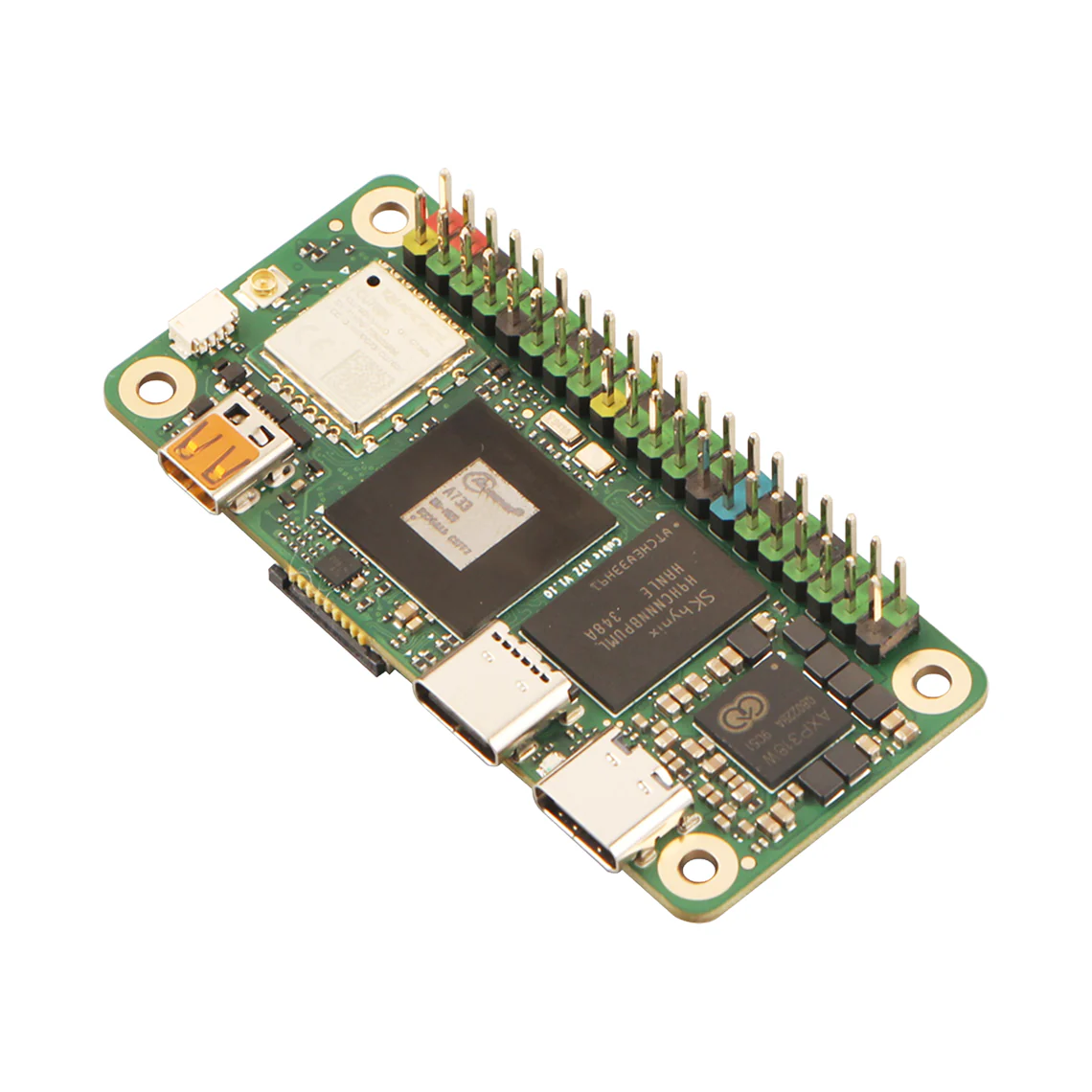

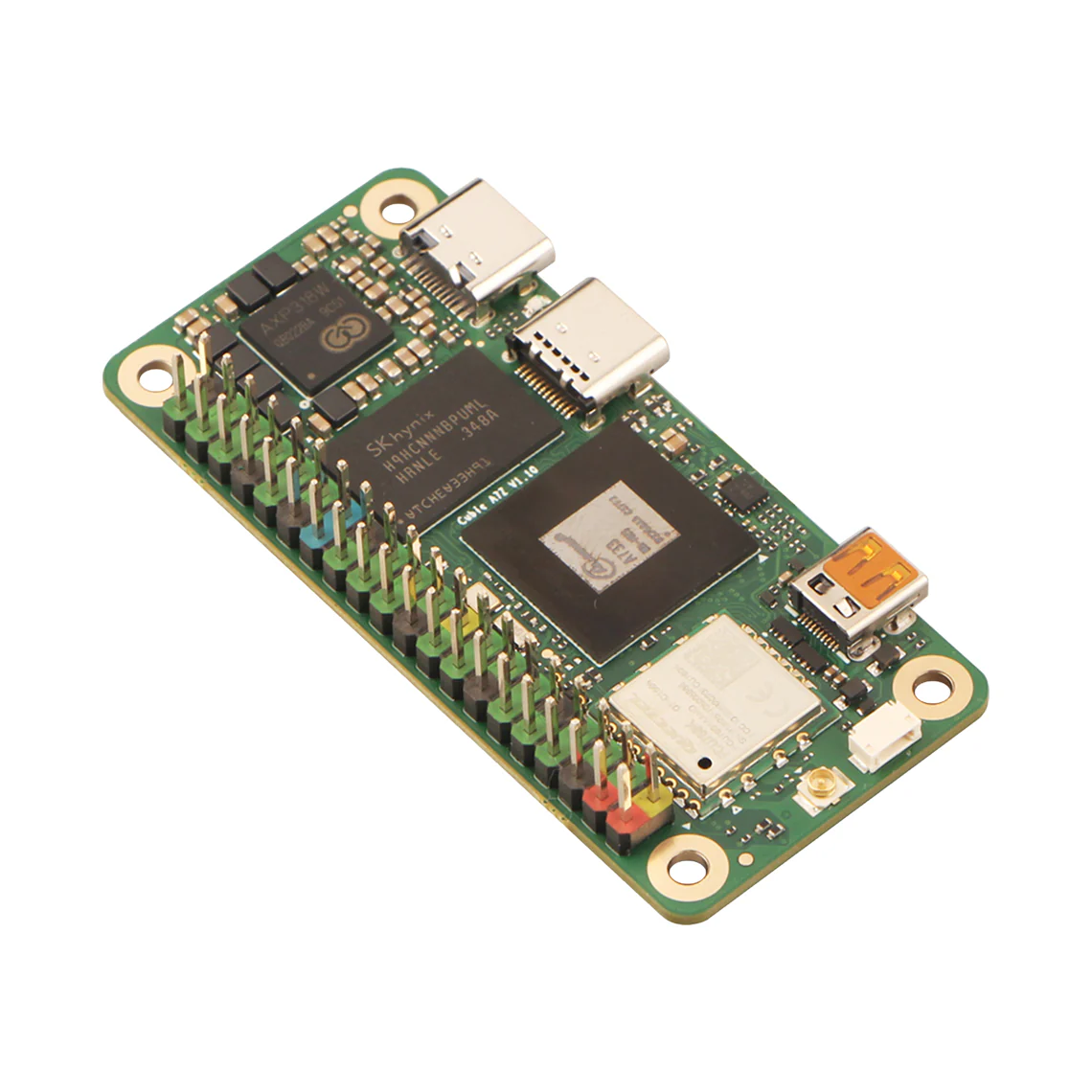

RADXA Cubie A7 Zero
