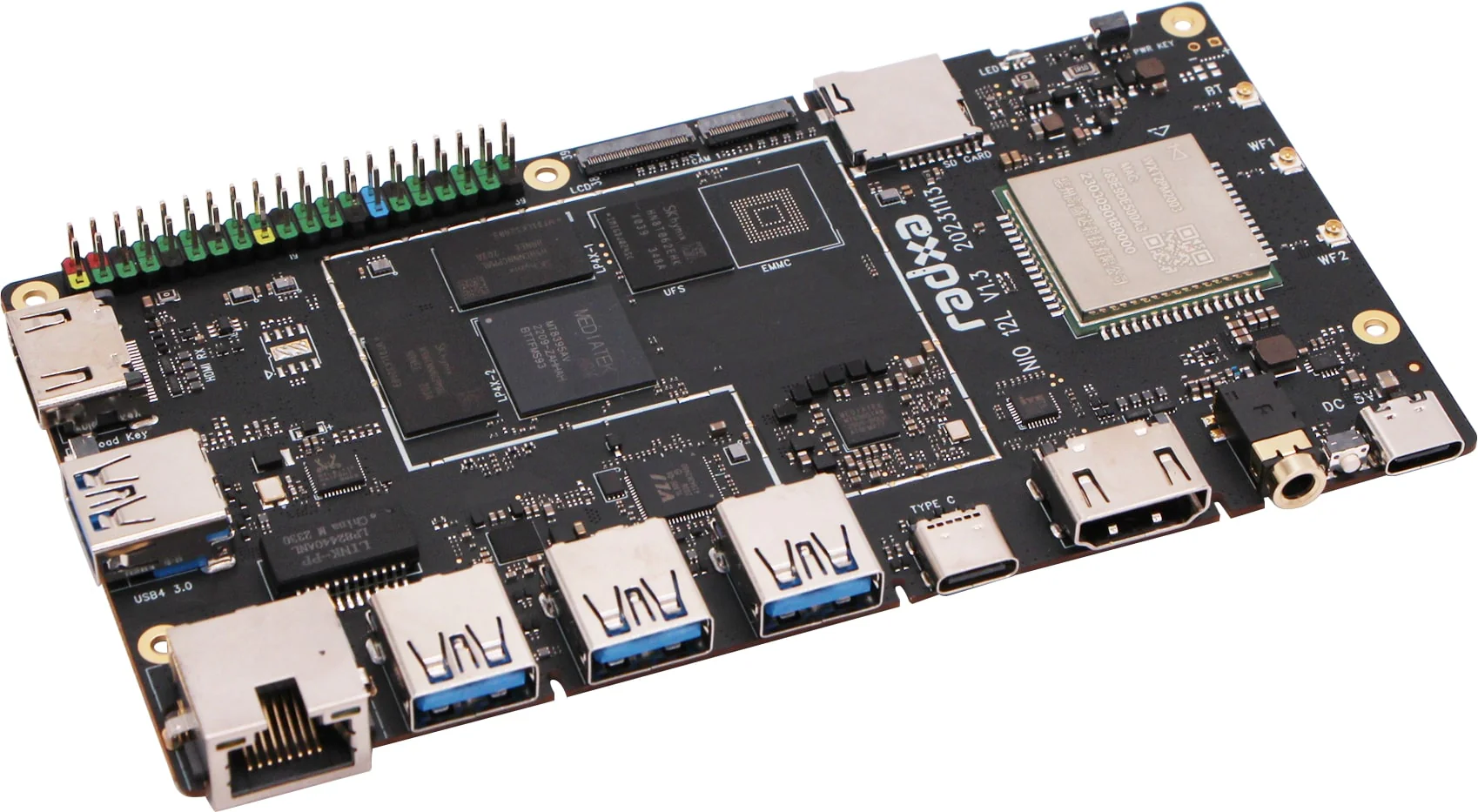

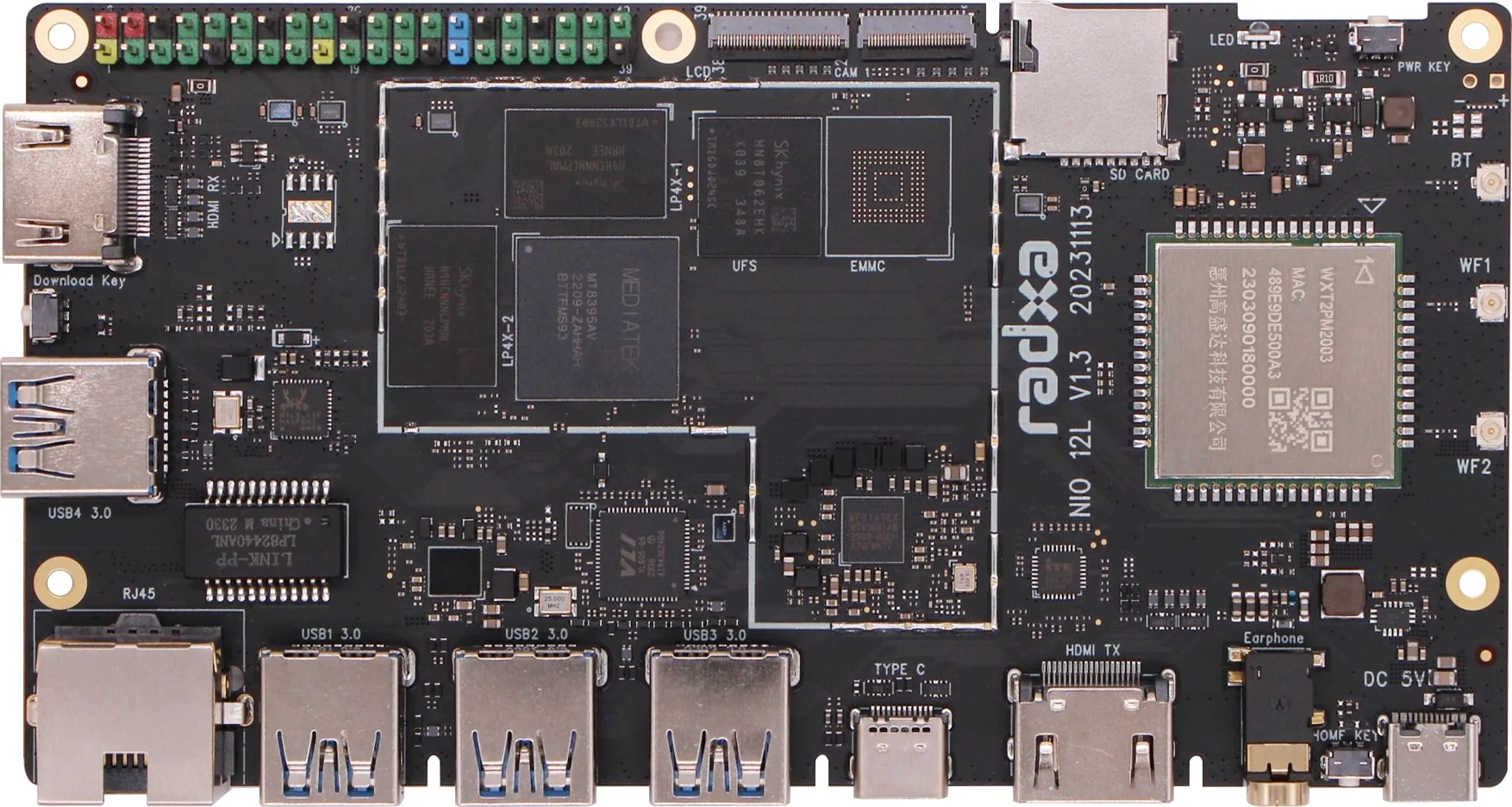

RADXA NIO 12L

The first MediaTek Genio 1200 SoC based low profile SBC from RADXA

Processor

MediaTek Genio 1200 SoC (MT8395)
Quad Cortex®‑A78 @ 2.2~2.4GHz and a quad Cortex®‑A55 @ 2.0GHz based on Arm®DynamIQ™ configuration

Arm Mali™ G57 MC5 GPU supporting
- OpenGL® ES1.1, ES2.0, and ES3.2
- OpenCL® 1.1, 1.2 and 2.2
- Vulkan® 1.1 and 1.2
- Embedded high performance 2D image acceleration module

Dual-core AI Procesor Unit (APU) Cadence® Tensilica® VP6 processor with Al Accelerator (AIA)
- APU computing power is up to 4TOPs

Single‑core Cadence HiFi 4 Audio Engine DSP

Memory

64bits LPDDR4x RAM up to 4266MT/s

4GB /8GB /16GB options

UFS (Universal Flash Storage) Version 2.1

64GB /128GB /256GB /512GB

Dual Display output via any two of:

- 1x HDMI TX with up to 4Kp60
- 1x DP (USB Type‑C) up to 4Kp60
- 1x MIPI DSI up to 2Kp60

Single camera with image processing up to 48MP@30fps
AV1/VP9/HEVC/H.264 multivideo decoder up to 4K@90fps
HEVC/H.264 multivideo encoder up to 4K@60fps

Interfaces

Audio

3.5mm headphone jack with mic input

Wireless

1x WiFi 6 / BT 5.2 with tripple antenna

Storage

1x Micro SD Card

1x on board eMMC with 8GB / 16GB / 32GB / 64GB storage options

1x on board UFS with 128GB / 256GB / 512GB storage options

USB

1x USB Type‑C™ port supporting

– DP display up to 4Kp60
– USB 3.0 OTG

4x USB 3.0 5Gbps Type A HOST Ports

Ethernet

1x GbE LAN Port

IO

40-pin expansion header

2 x UART
2 x SPI
2 x I2C
1 x PCM/I2S
1 x SPDIF
1x PWM
1x ADC
6 x GPIO
2 x 5V DC power in/out
2 x 3.3V DC power out

Other

RGB power/status/user LED

3x buttons:

1x power button
1x force upgrade button
1x User button

Software

・ ARMV8 Instruction Set

・ Debian / Ubuntu Linux support

・ Yocto 23.1 or later BSP

・ Android 11 support

・ Mediatek APU SDK (NDA required)

・ Hardware access/control library for Linux/Android

Power

Power adapter with fixed voltage of 5V on the USB Type-C port
5V Power applied to the GPIO PIN 2 & 4

Size

74.2mm x 140.6mm

Operation temperature:

0°C to 50°C

Certifications:

FCC, CE, RoHS

Availability:

until at least September 2032

RADXA Edge Computing

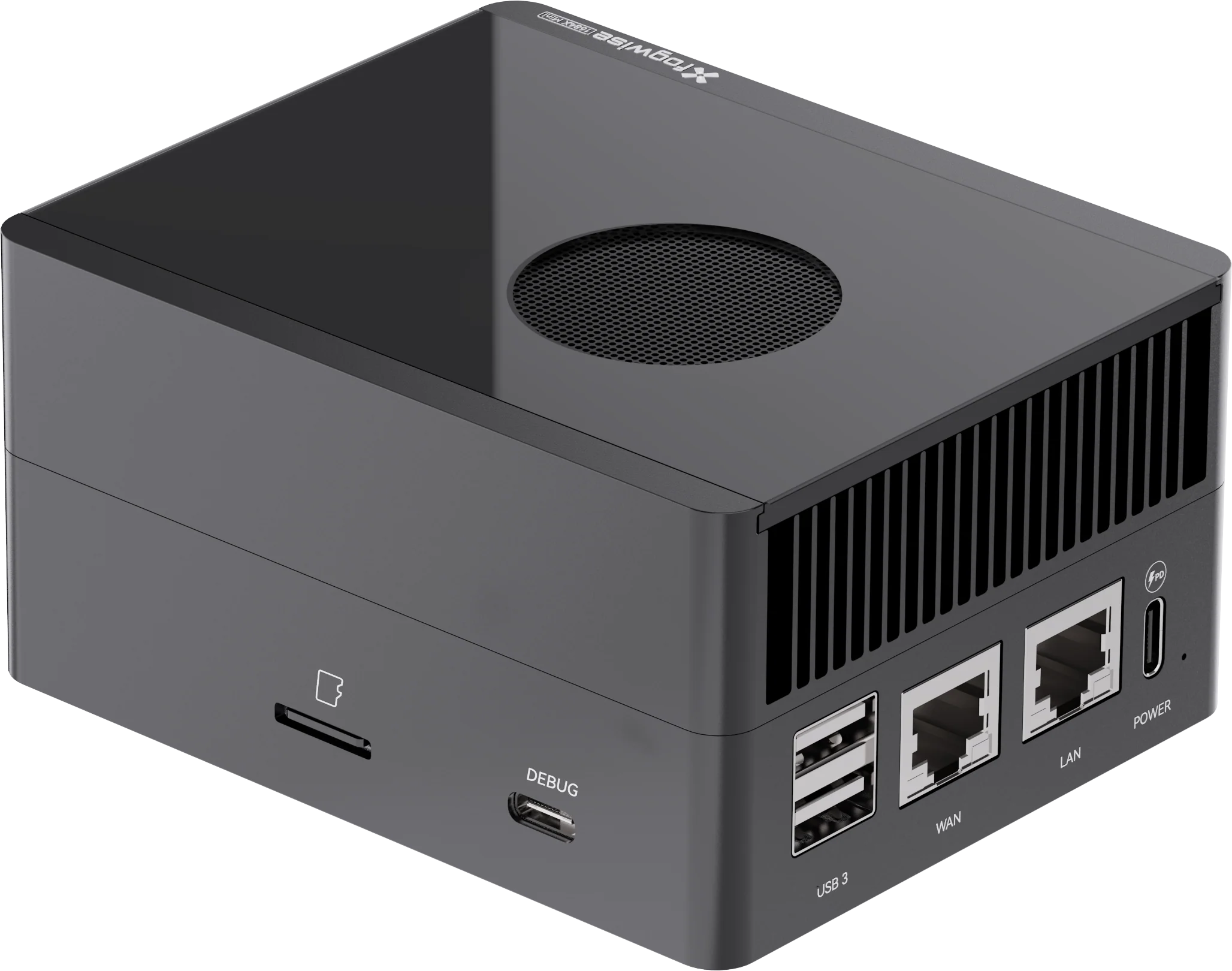

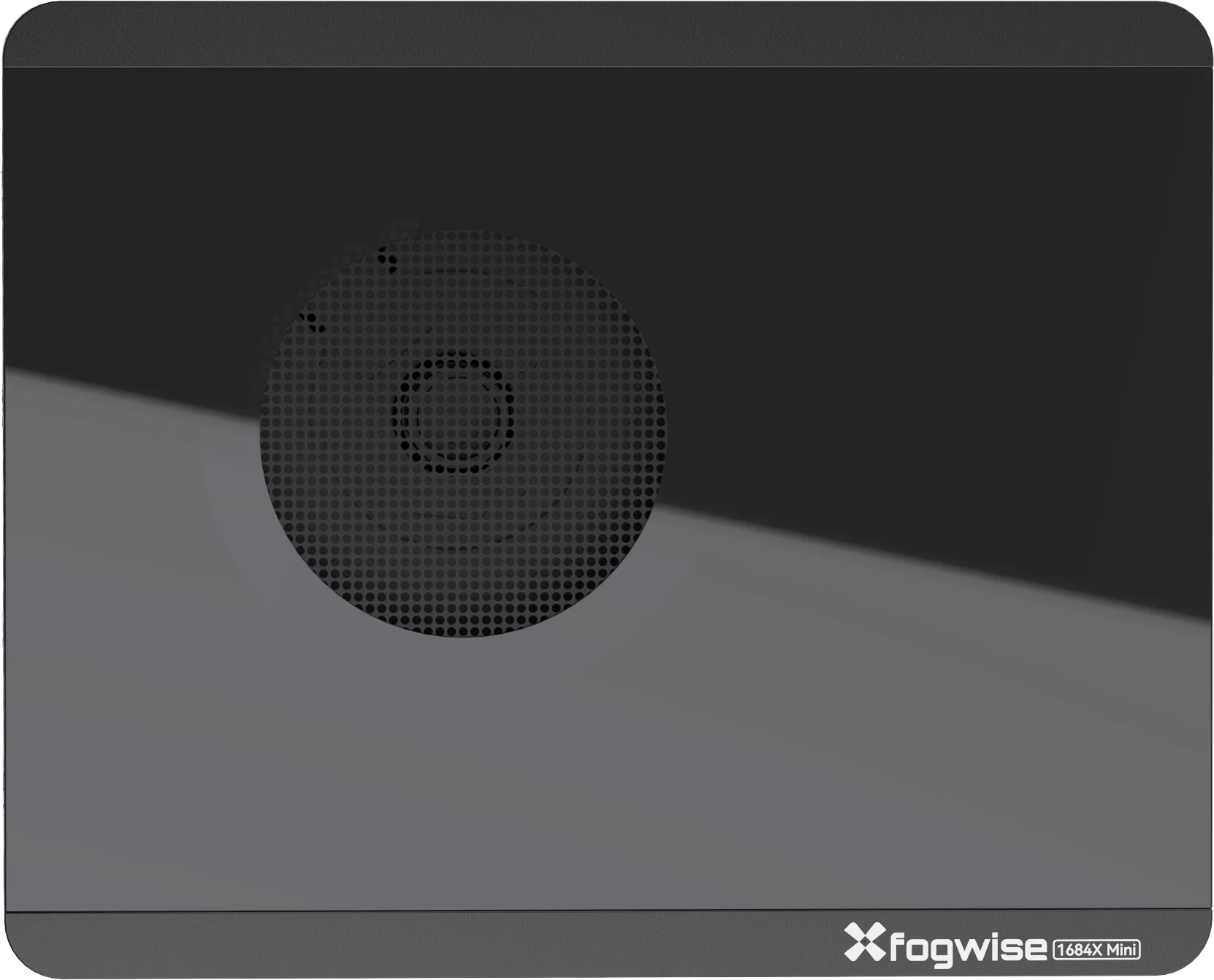

RADXA Fogwise AIRbox

RADXA NIO 12L

RADXA E54C

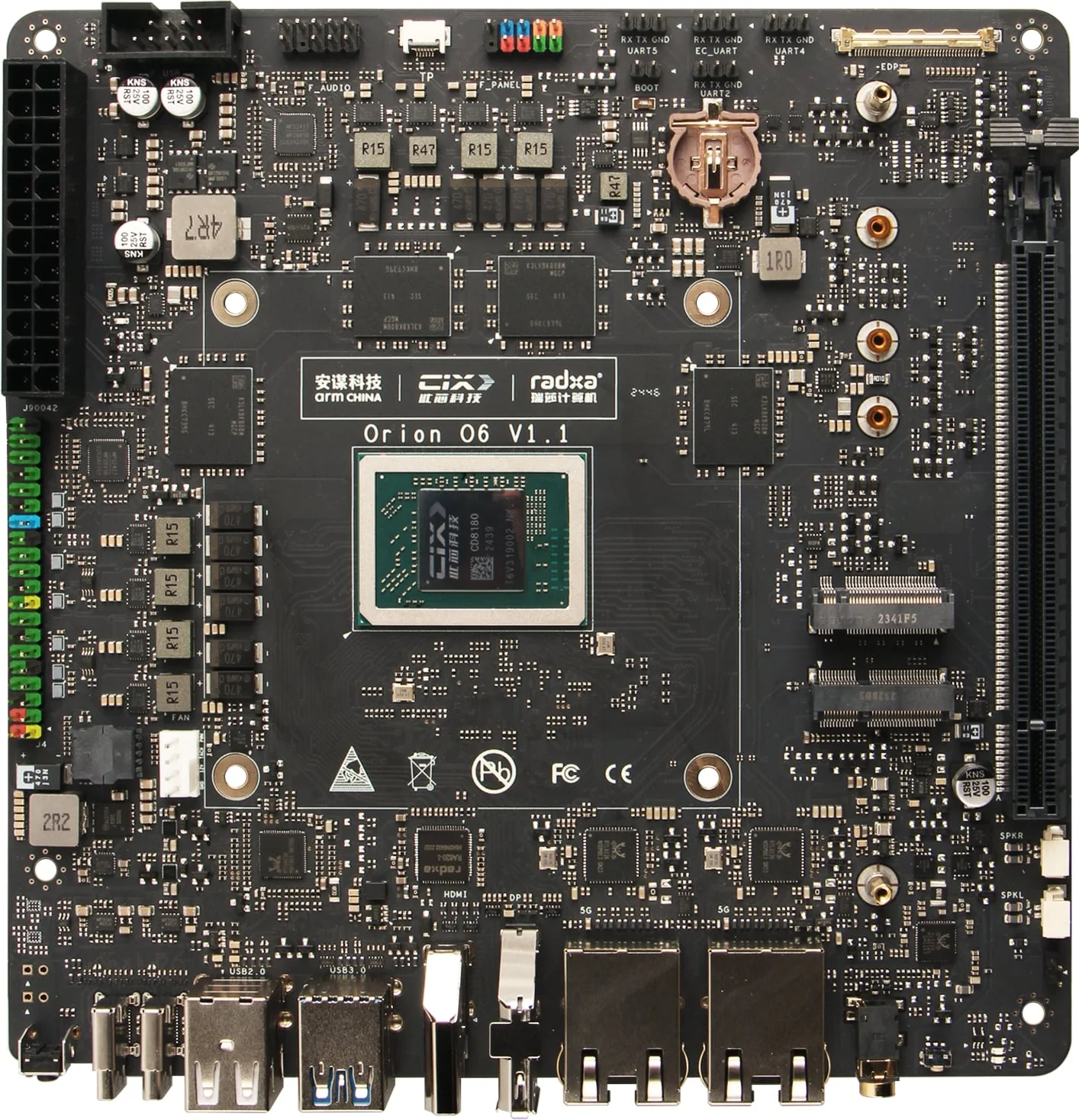

RADXA Orion O6

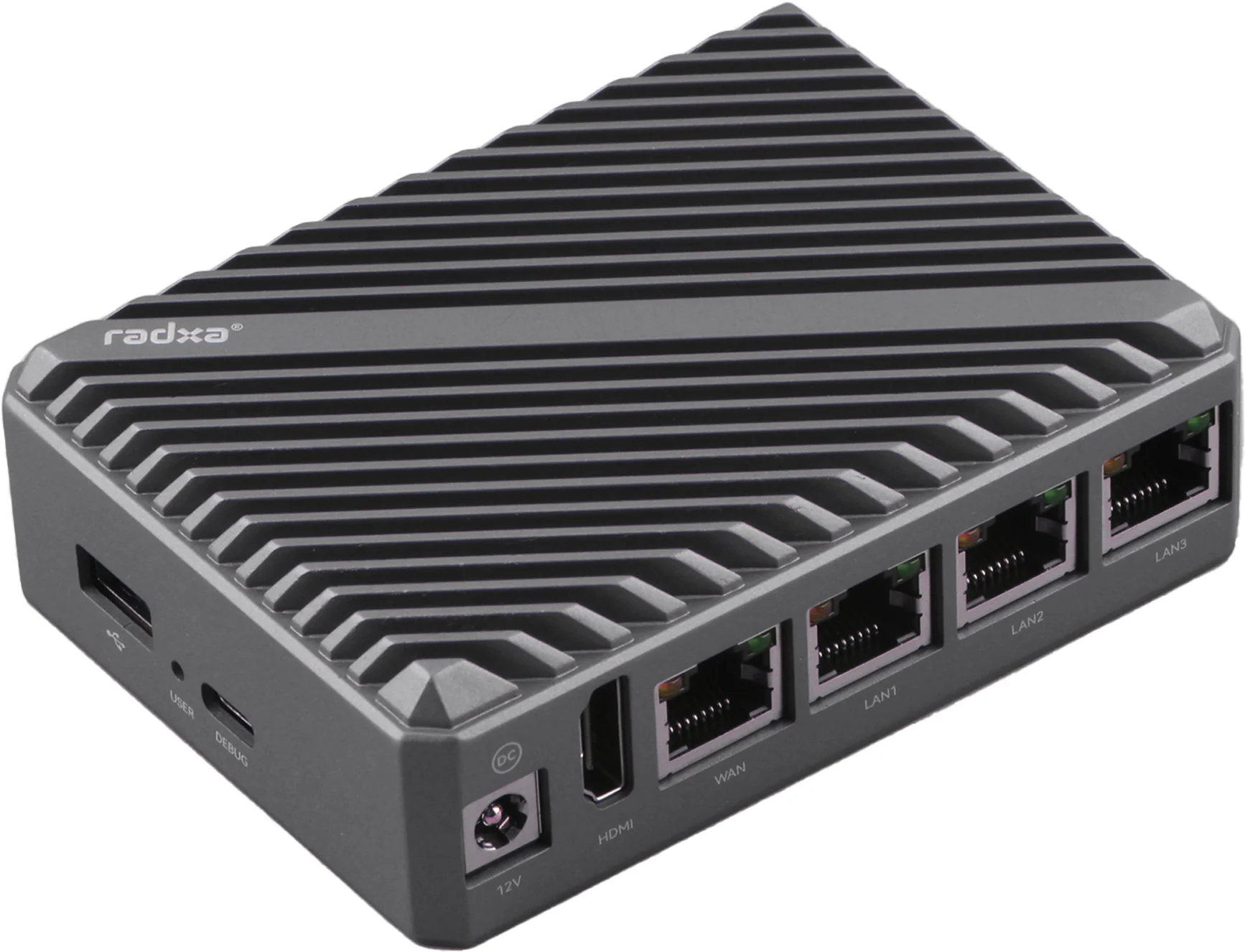

RADXA E24C
