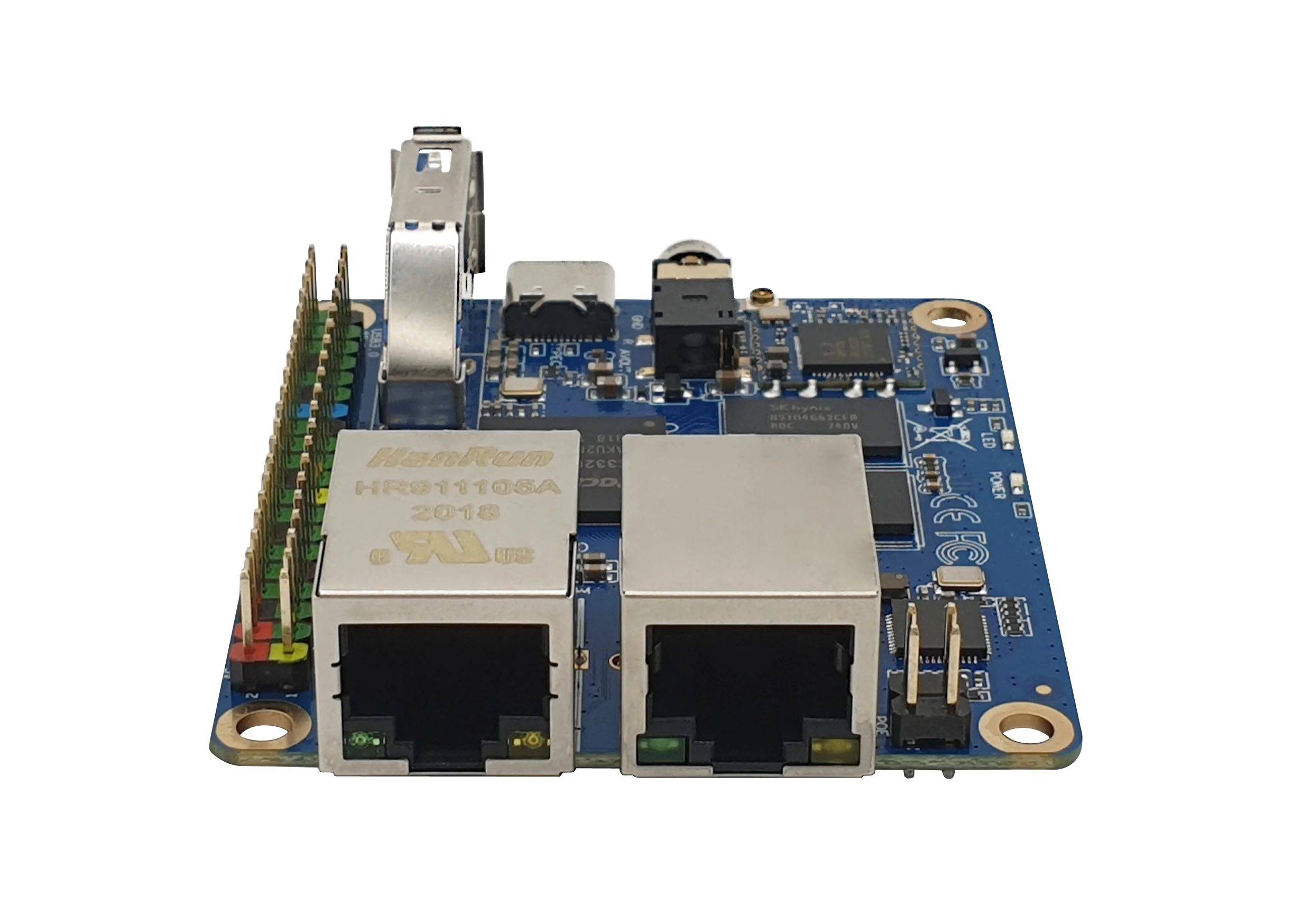

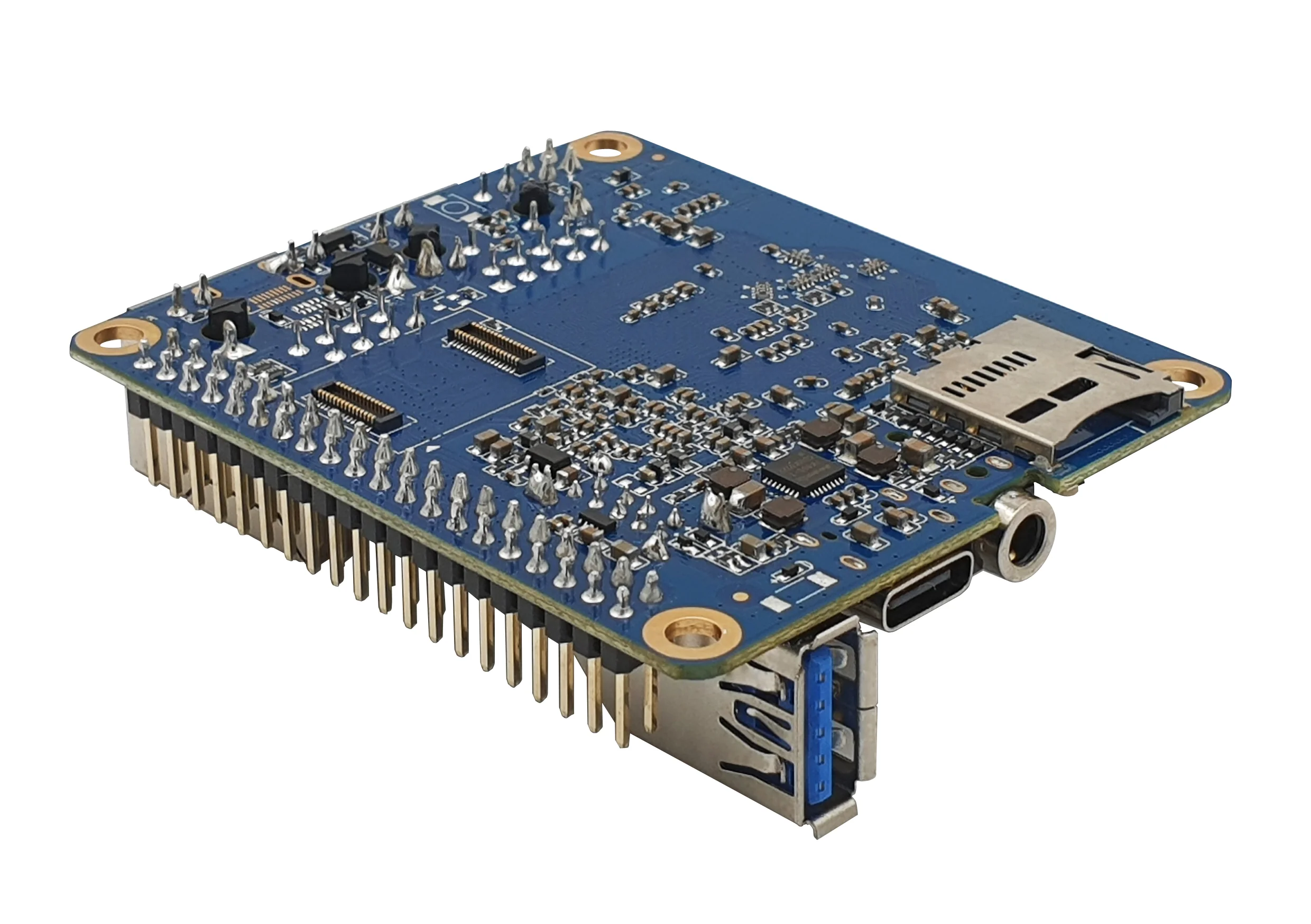

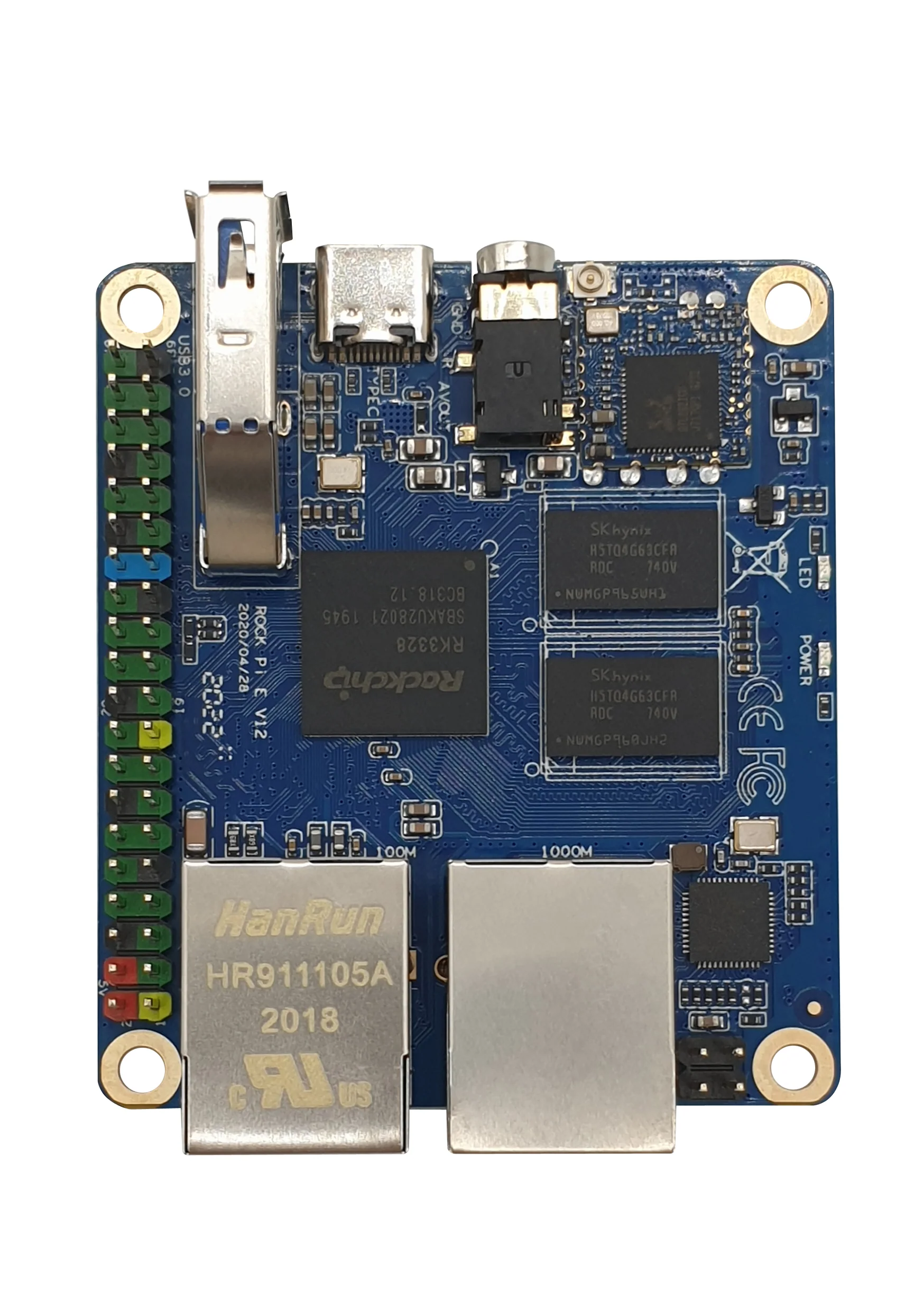

ROCK PI Model E

ROCK PI E is an important member in the Rockchip based family

Powered by Rockchip RK3328 64bit quad core CPU, this SBC provides a lot of outstanding features.

With 256MB up to 1GB DDR3 RAM, uSD and eMMC interface, USB3.0, dual ethernet and wireless connectivity at the size of 2.5x2.2inch (56x65mm) the

Rock E is a perfect fit for IoT and networking applications.

The SBC´s flexibility is expandable with optional eMMC 5.1 modules or a PoE hat for network powering the board.

Feature HATs will continue to increase functionality and possible use cases of this SBC.

No heat management needed.

Technical Details:

Processor

Rockchip RK3328 SOC Quad-core Cortex A53 up to 1.5GHz

Neon and FPU co-processor with shared L2 Cache

Mali-450MP4 GPU

RAM

256MB/512MB/1GB

Networking

1x Gigabit ETH

1x 100Mbit ETH

WIFI a/b/g/n + Bluetooth 4.2 (only 512MB version)

WIFI a/c  + Bluetooth 4.2

WIFI a/c  + Bluetooth 4.2 + PoE (only 1GB/2GB version)

Interfaces

USB A 3.0 Connector

Audio connector

USB C connector for power

USB - OTG interface via GPIO (pls check the optional USB ->OTG cable)

Storage

TF card interface (up to 128GB)

eMMC 5.1 interface
