RADXA E52C

RADXA E52C - a compact network computer with powerful computing performance and a wide range of networking capabilities.

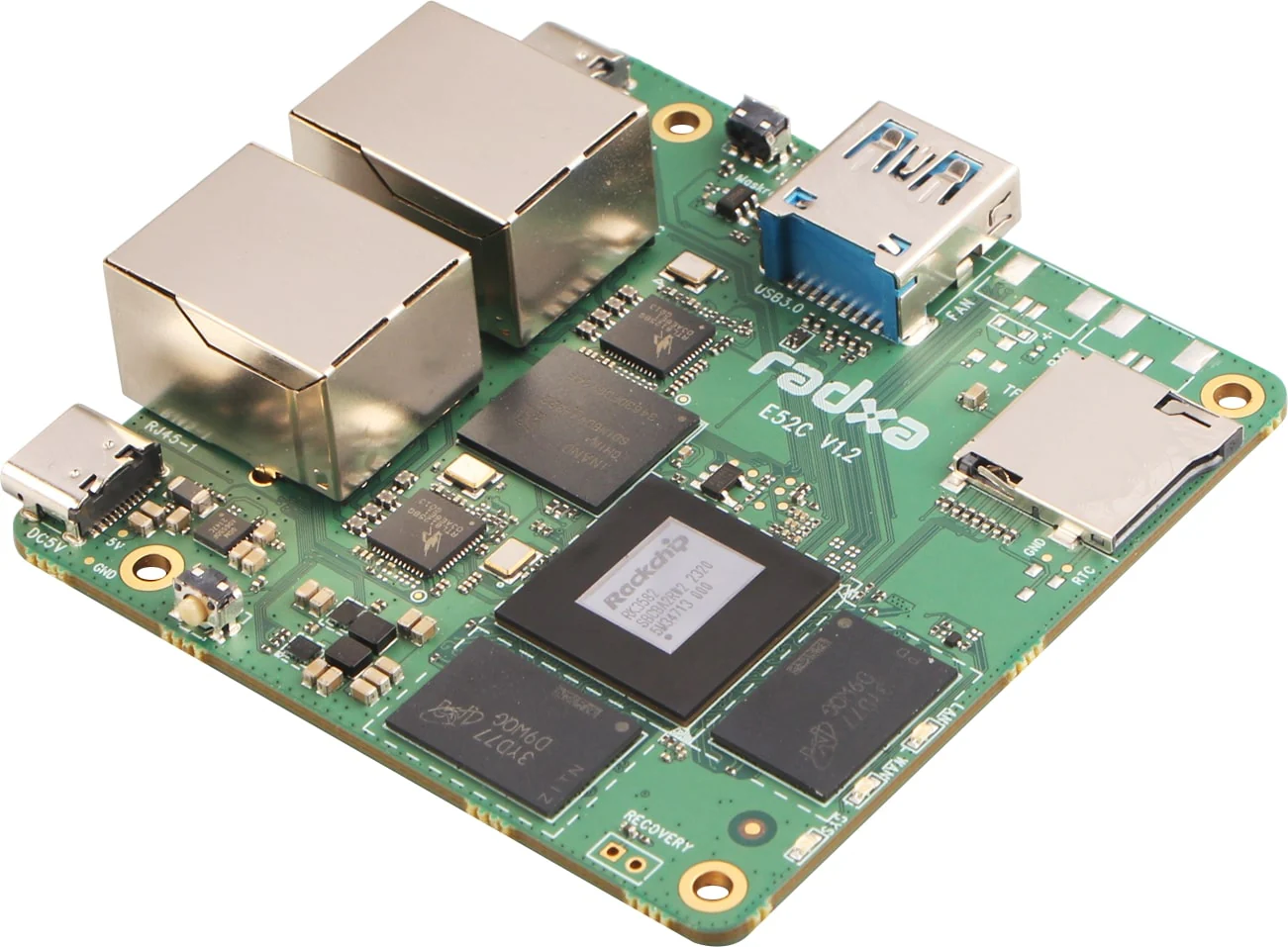

The Radxa E52C is based on the Rockchip RK3582 SoC and provides makers, IoT enthusiasts, hobbyists, PC DIY enthusiasts and others a reliable and extremely capable platform for building their ideas into reality.

Hardware overview:

• Rockchip RK3582 SOC with Dual core ARM Cortex-A76 and Quad core ARM Cortex-A55
• NPU supporting INT4 / INT8 / INT16 / FP16 / BF16 and TF32 acceleration computing power is up to 5TOPs

• 2GB/ 4GB/ 8GB LPDDR4 RAM
• onboard eMMC with 16GB/ 32GB or 64GB

• Aluminum Alloy Case for Efficient Heat Dissipation


Interfaces:

• 1x USB C for 5V power
• 1x USB C for debug and data
• 2x 2.5 Gigabit Ethernet ports

• 1x microSD Card slot
• 1x USB2.0 Type A host port
• 1x maskrom button
• 1x User button

Software:

• ARMv8 Instruction Set
• Debian Linux support
• OpenWrt support
• iStore OS support
• Hardware access/control library for Linux

Power options and demands:

• via USB C with 5V3A

Peripherals:

• high speed eMMC for OS and data storage
• USB - 1x USB 3.0 HOST Type‑A Port and 1x USB Type‑C for UART Debug and Data

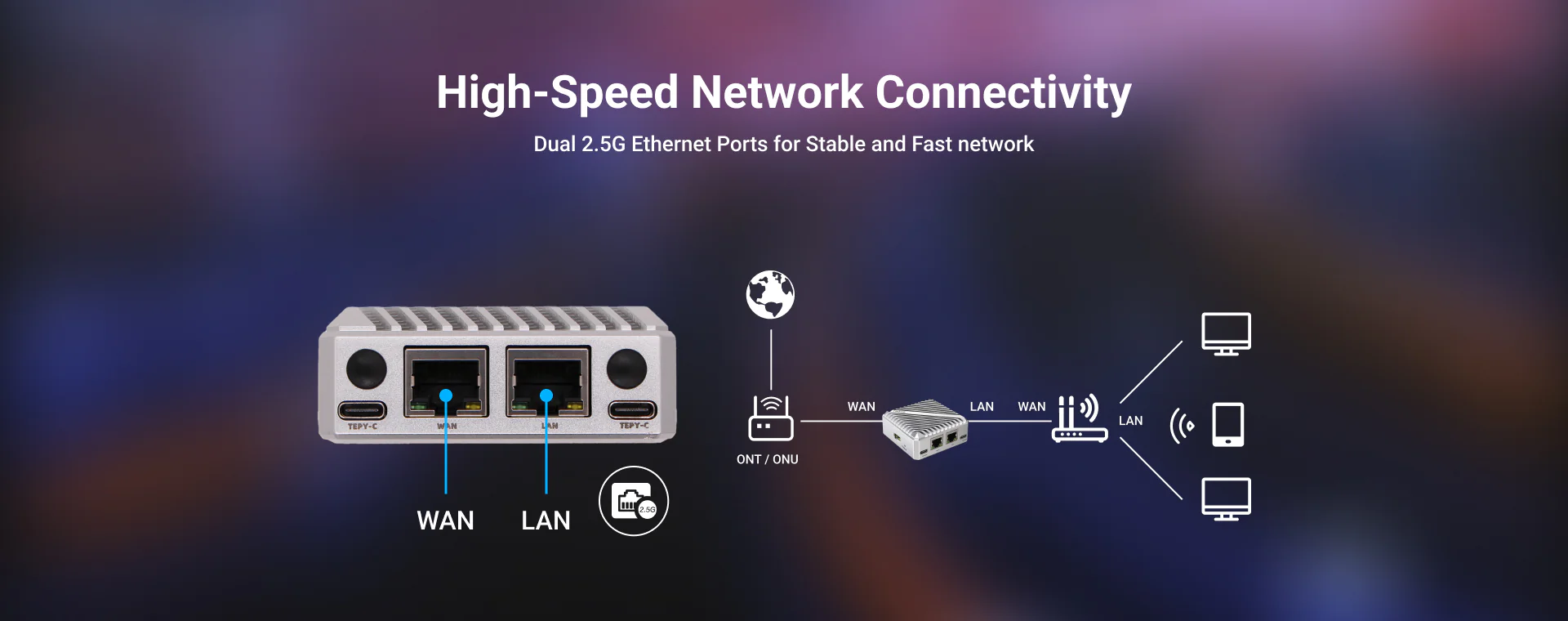

• 2 x 2.5 Gigabit Ethernet ports which can be configured as WAN/LAN, redundant or alternatively configured for load balancing via OpenWrt


Availability until at least 9/2034
