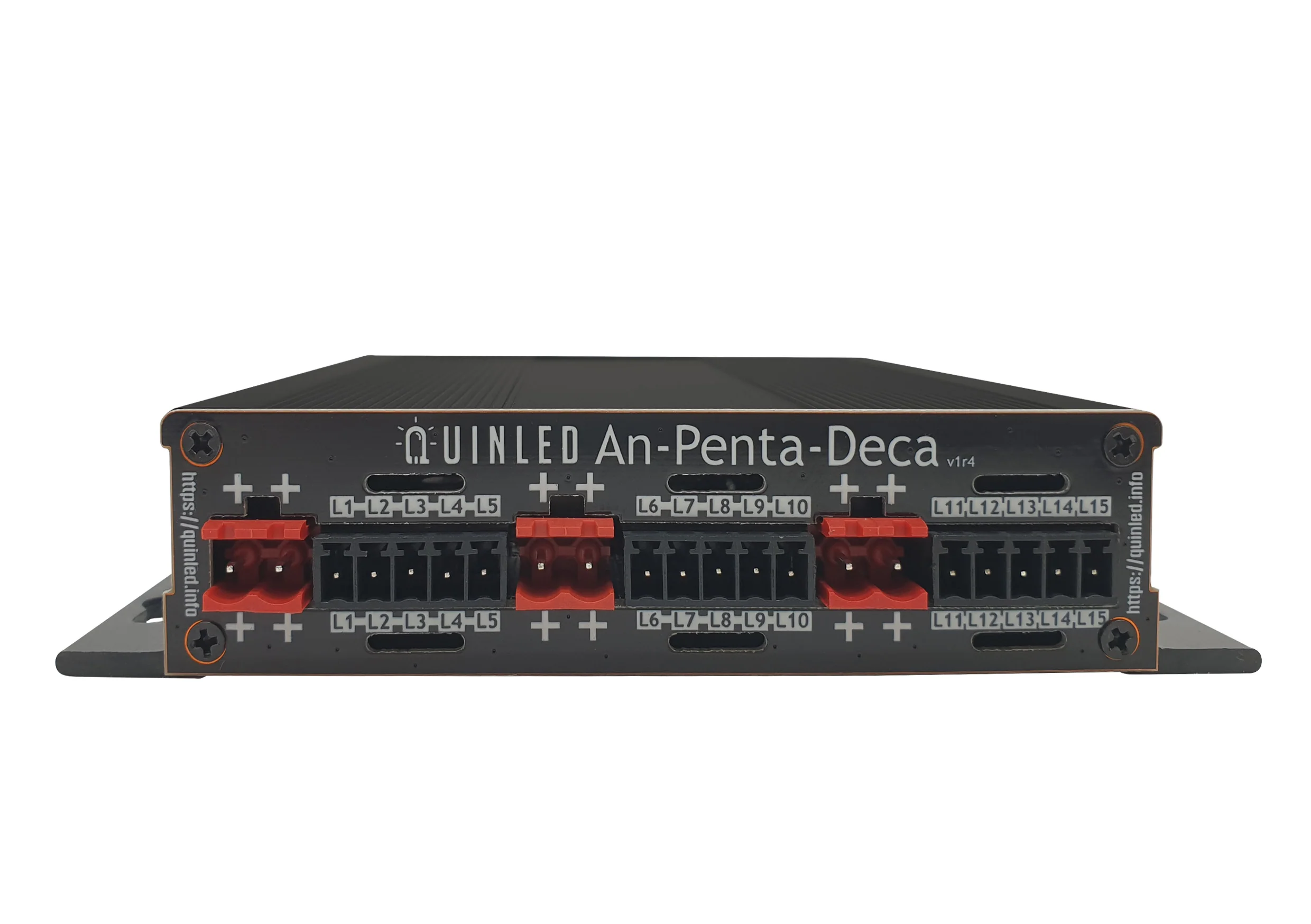

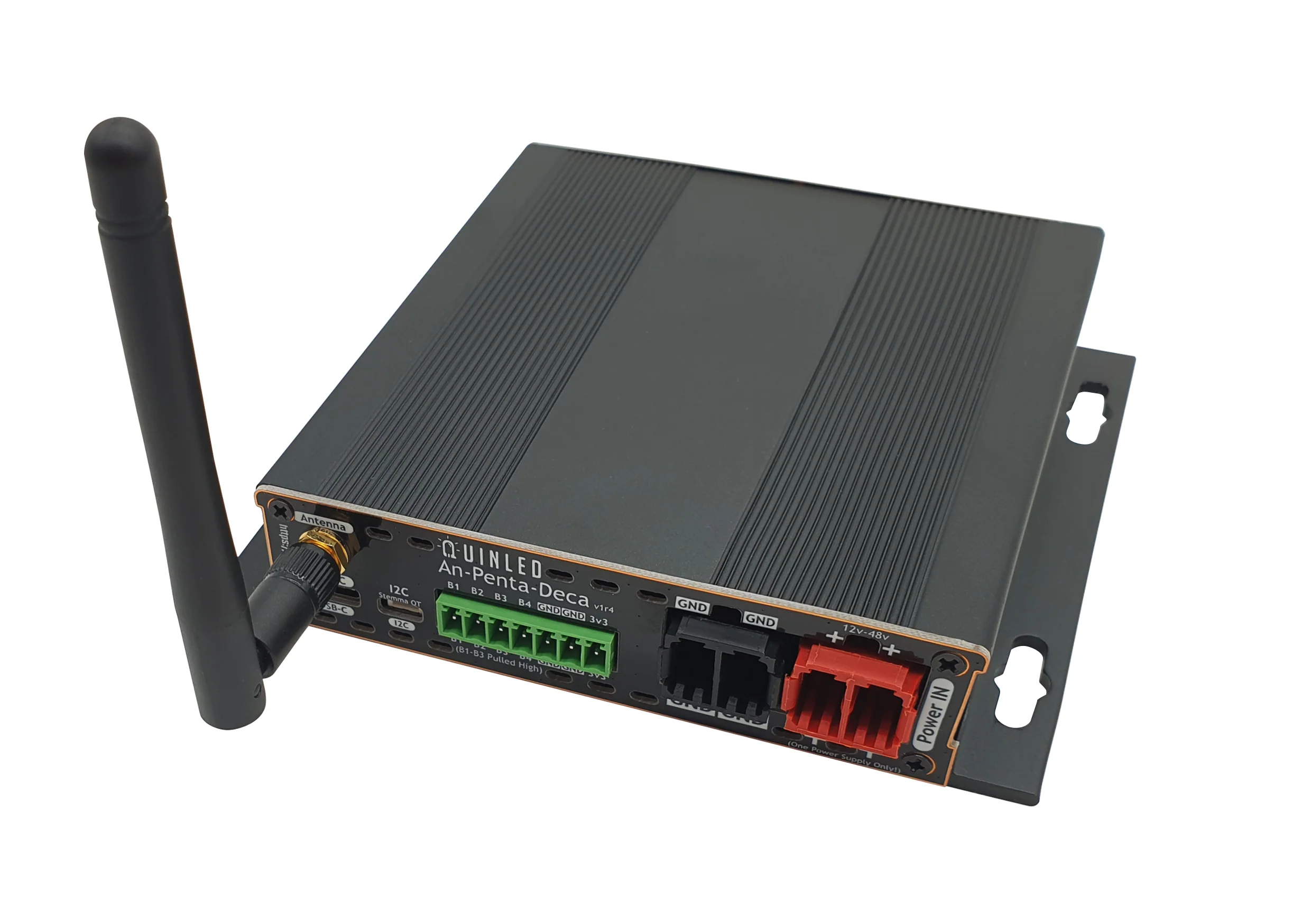

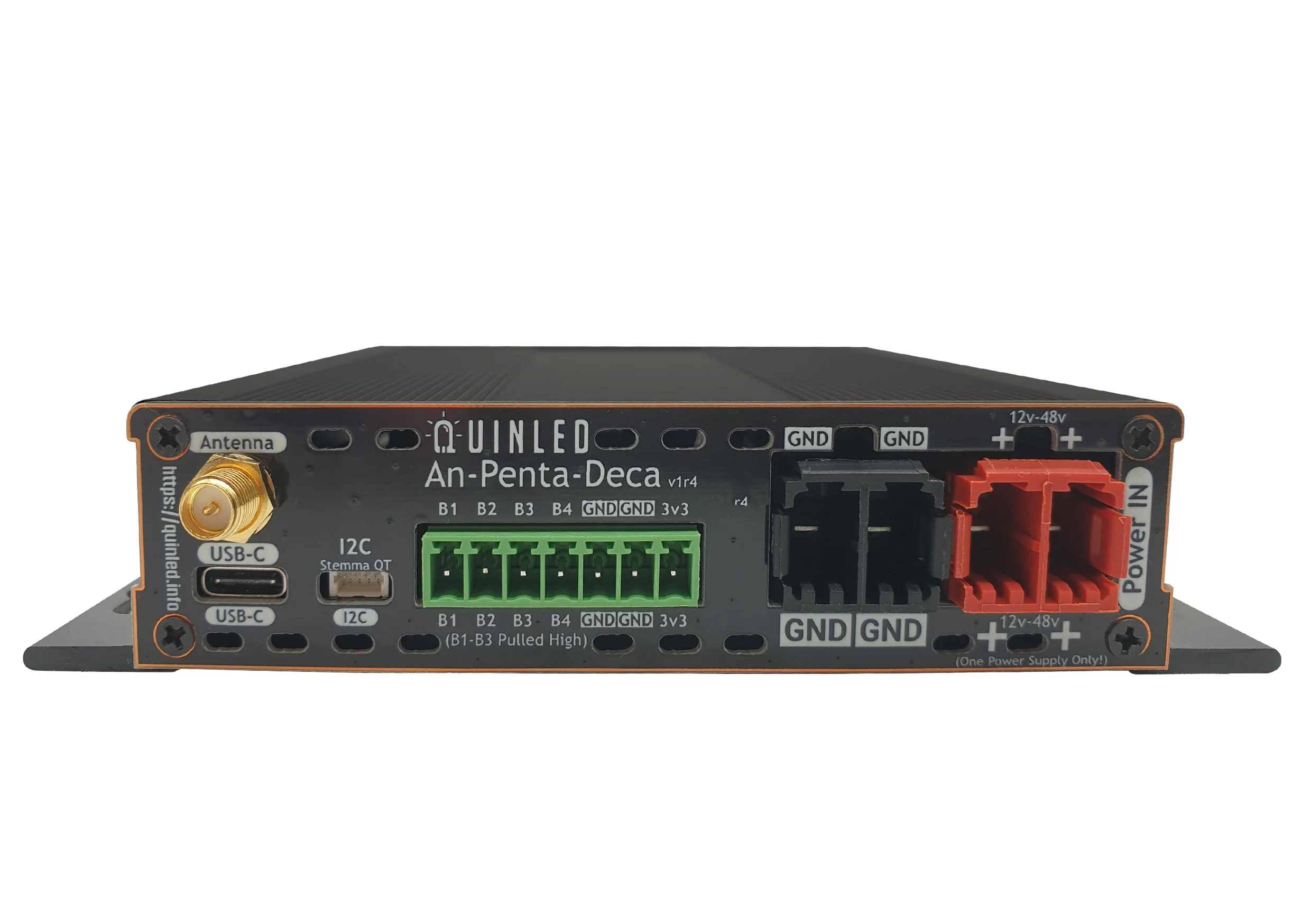

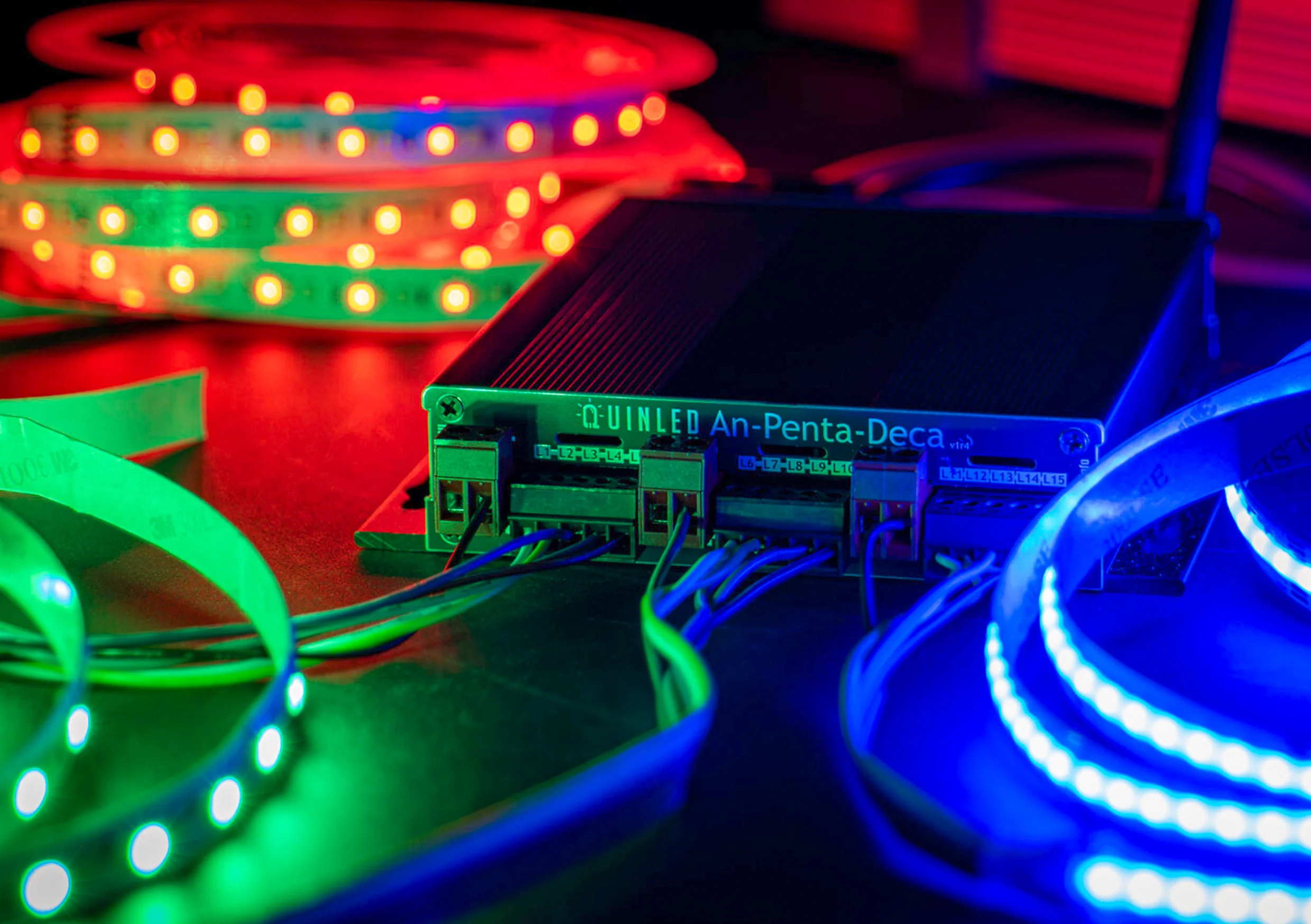

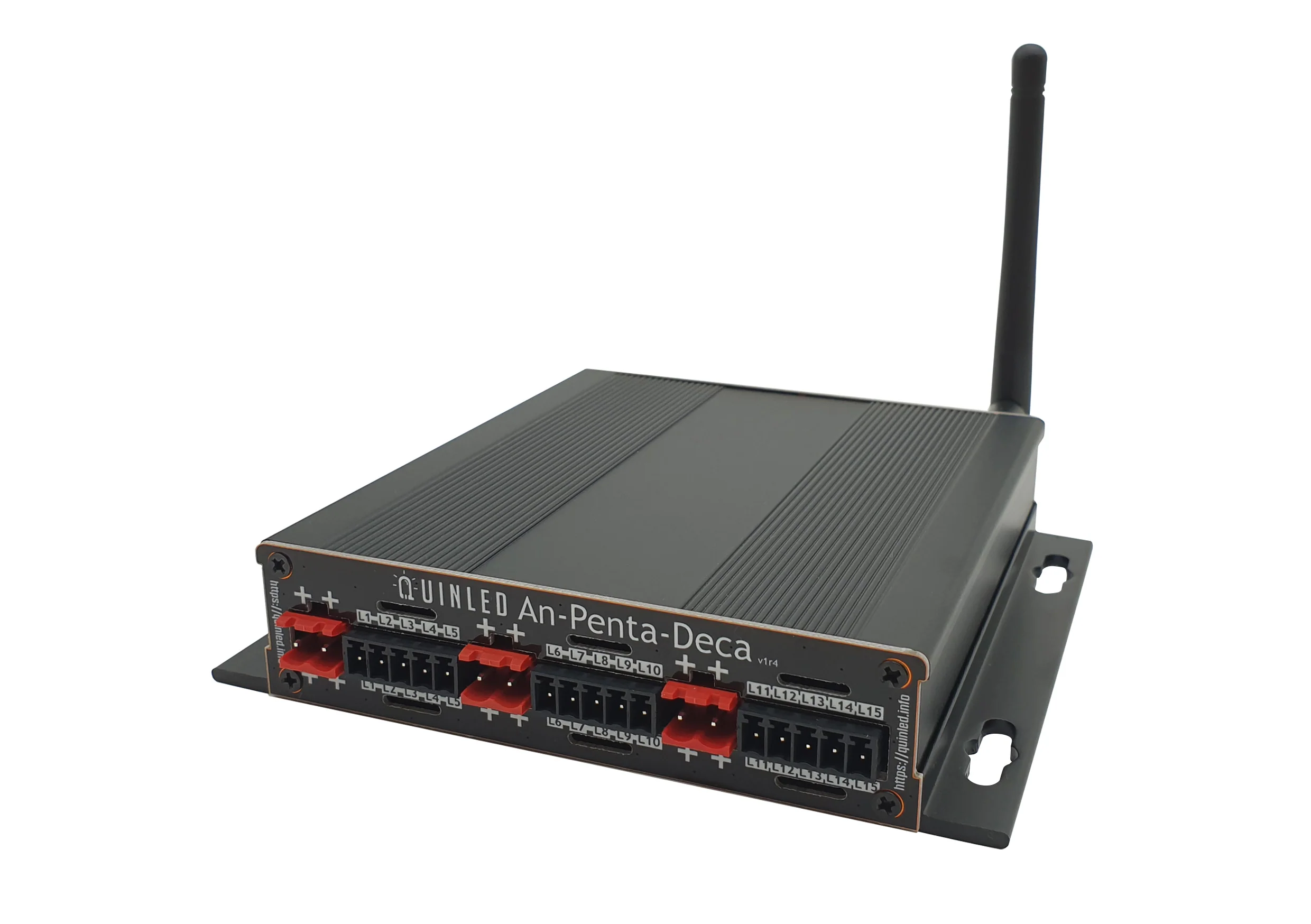

QuinLED AN-Penta-Deca

The QuinLED An-Penta-Deca - an ESP32 based 15 channel Analog LED controller.

Feature overview

• 15x PWM LED Medium Power output channel (up to 3x RGBCCT)
• External antenna
• USB-C programable
• Dedicated Button input terminals
• I2C port for sensors etc.
• Fused positive outputs (replaceable)
• High PWM frequencies capable
• Extra digital output
• Perfect compatibility with Home Assistant / ESPhome
• medium current 5A PWM outputs

QuinLED An-Penta-Deca enters the analog LED market segment, offering a packed feature set yet remaining compact.

Managed via WLED or ESPhome, it offers flexible dimming and the ability to run a variety of medium power strips (up to 5A for a single output), especially for configurations where you need lots of total power and channels available.

The dimmer features a max power rating of 30A total with up to 5A per output channel.

All screw terminal plugs are included in the package.

Find more details to this new controller here: QuinLED An-Penta-Deca

Watch the introduction video: QuinLED An-Penta-Deca
