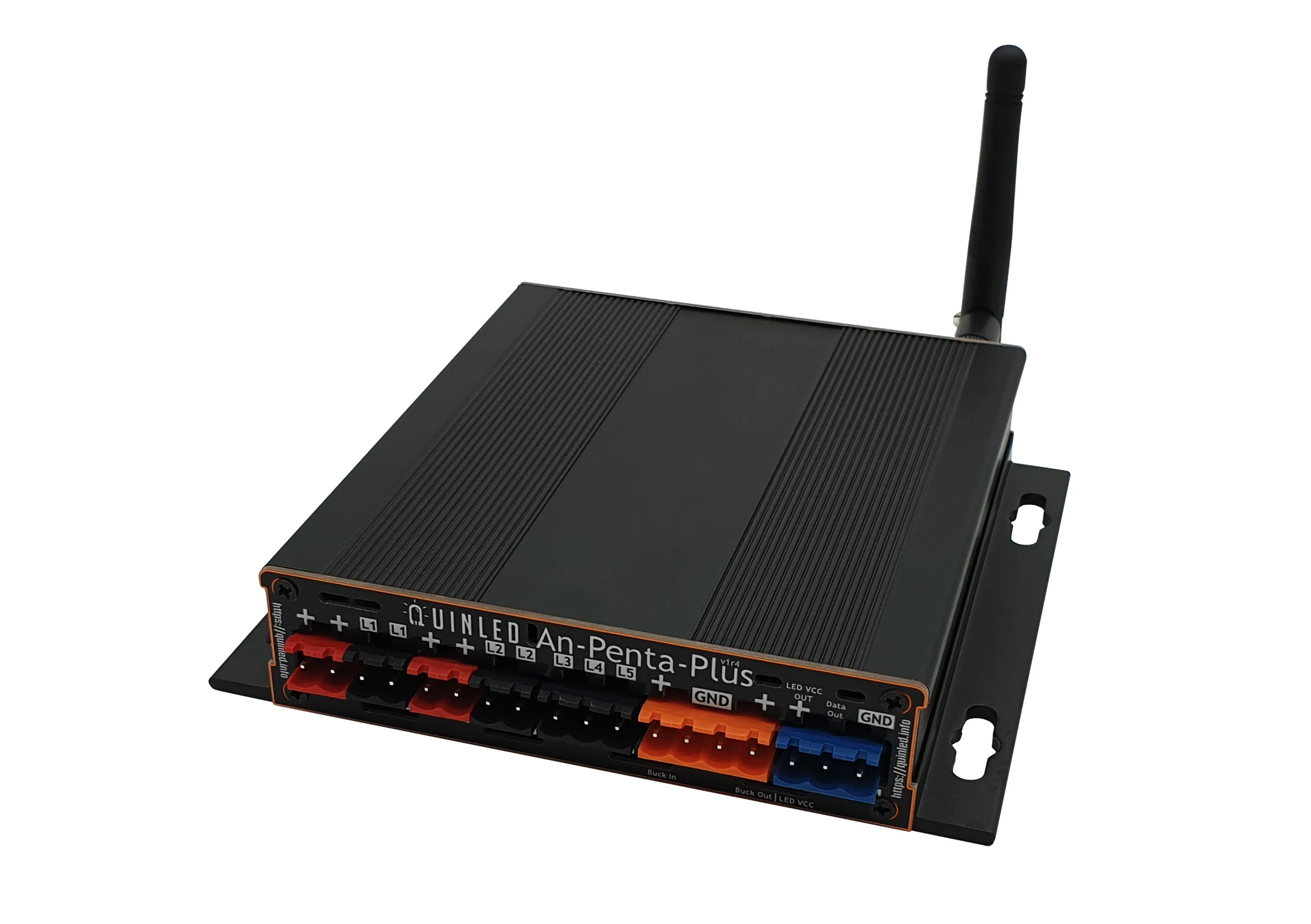

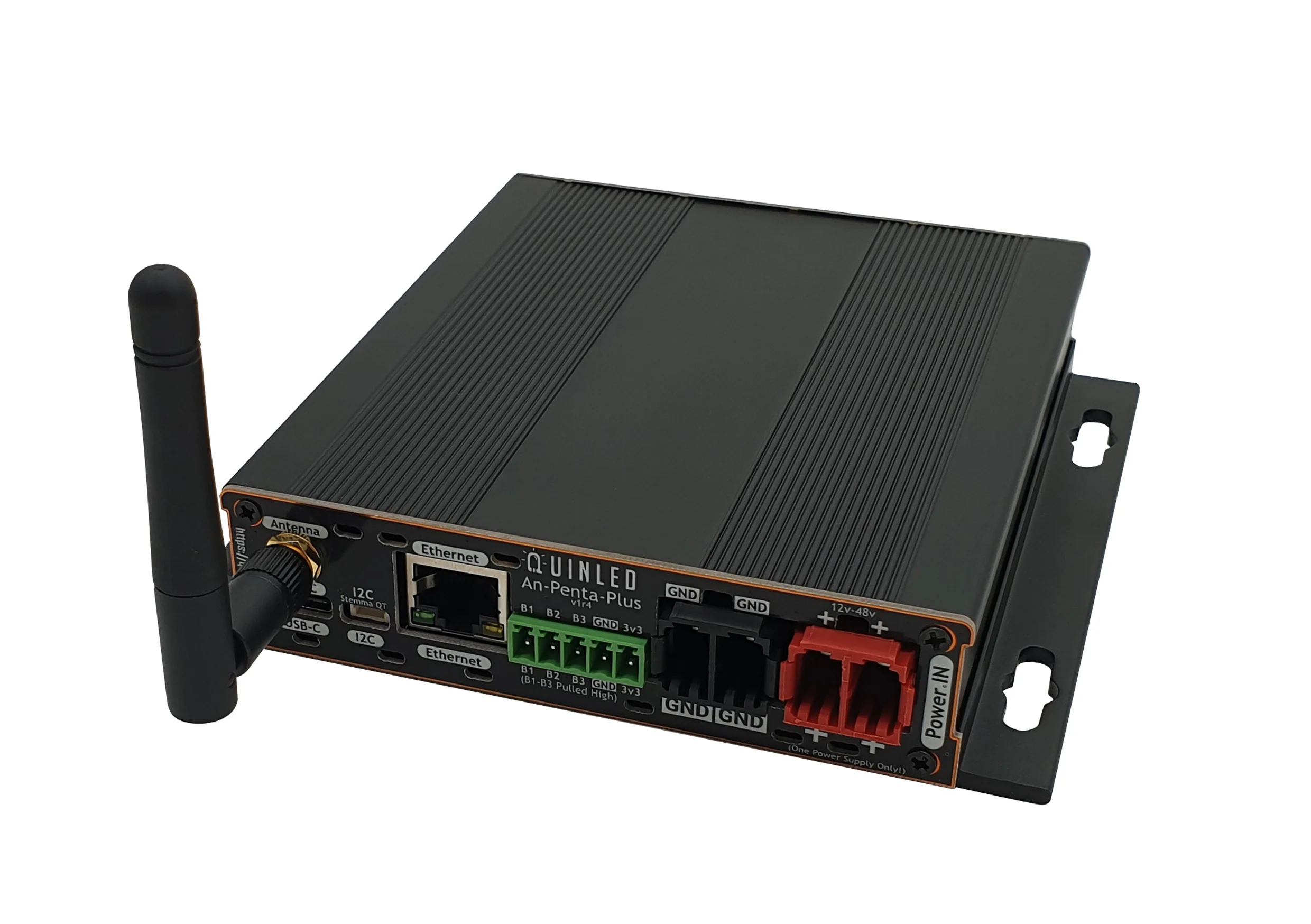

QuinLED AN-Penta-Plus

The QuinLED An-Penta-Plus - an ESP32 based 5 channel Analog +1 channel Digital Hybrid LED controller with high power rating.

Feature overview

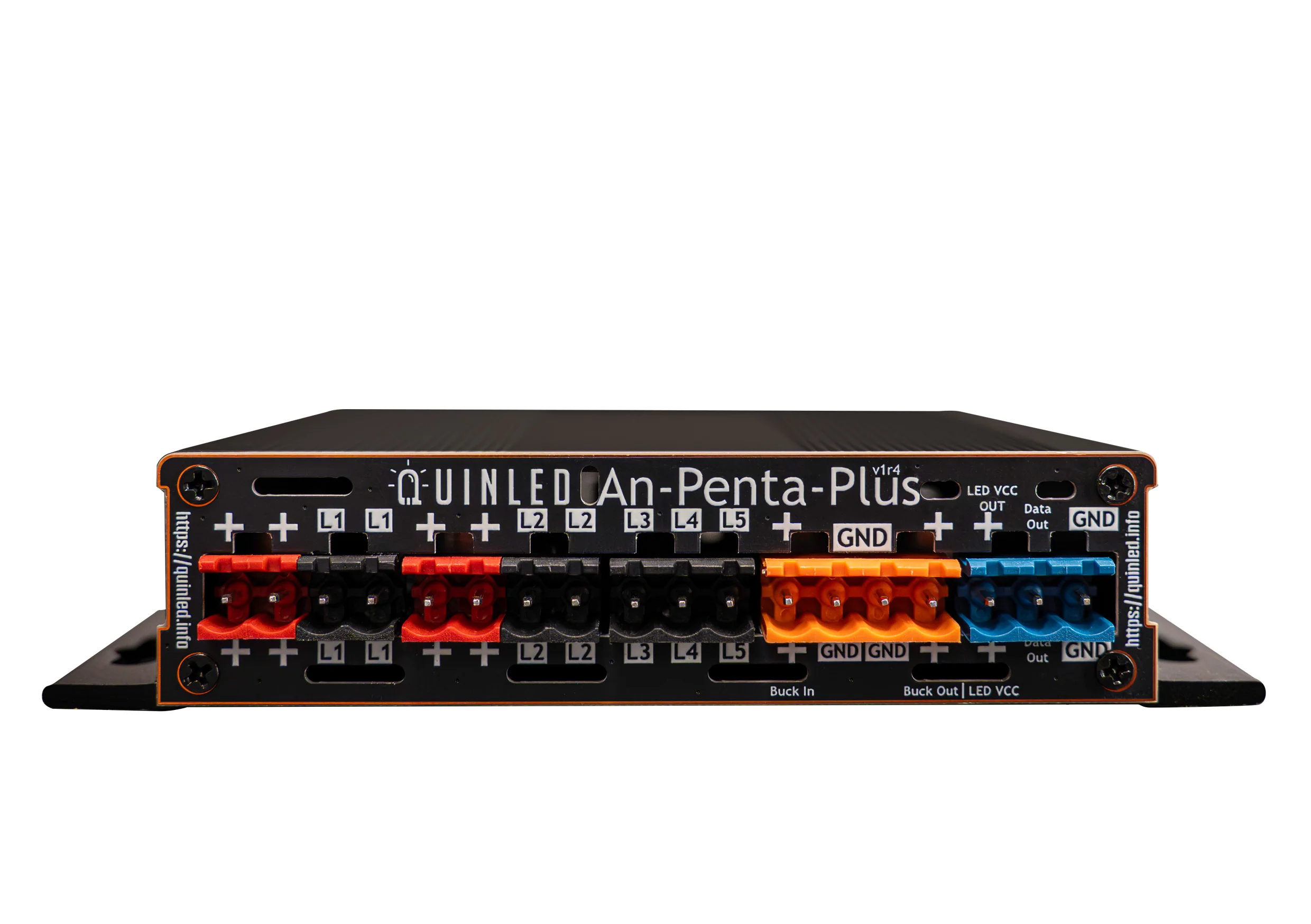

• 5x PWM LED High Power output channel (up to RGBCCT)

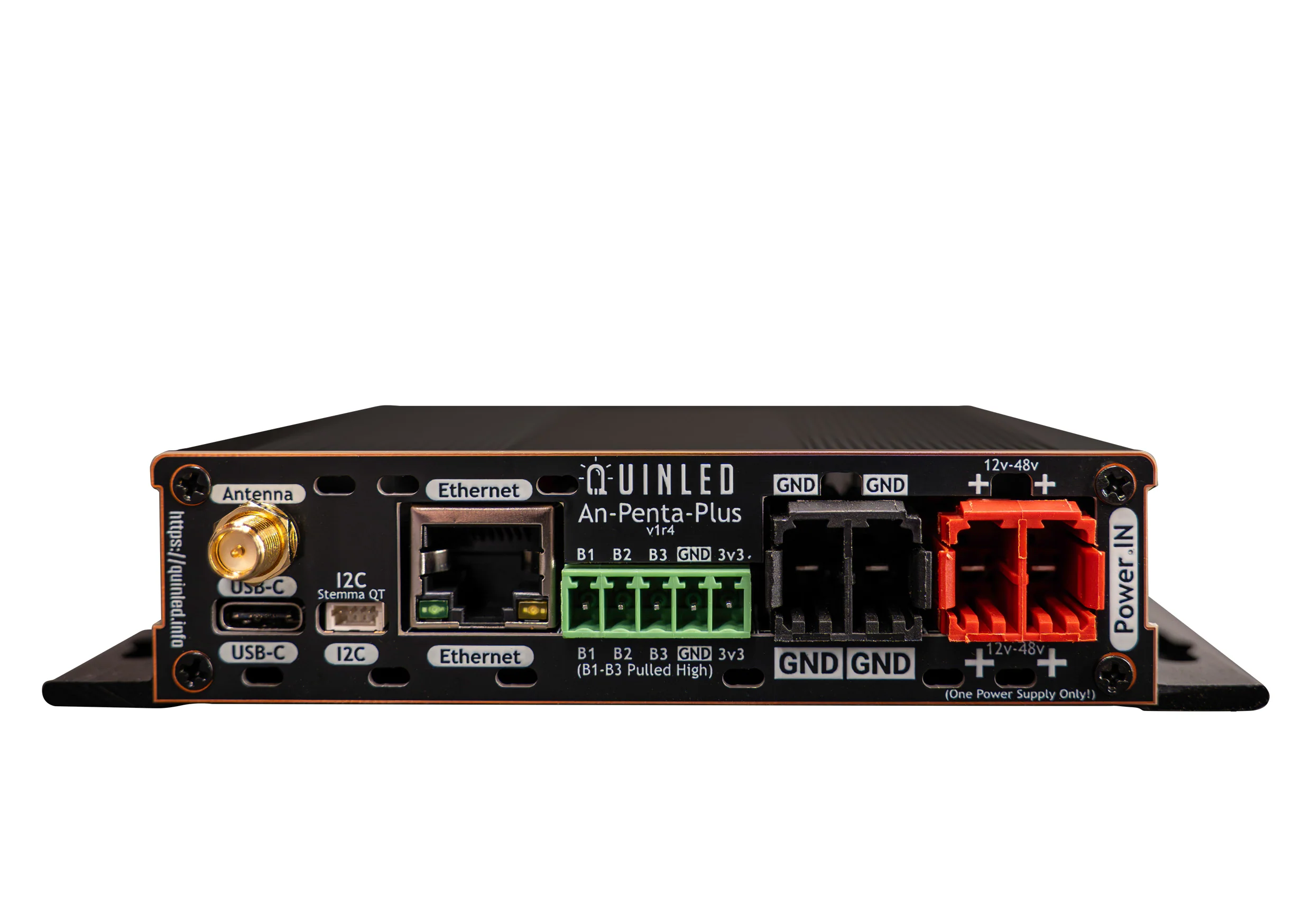

• External antenna + Ethernet onboard
• USB-C programable
• Dedicated Button input terminals
• I2C port for sensors etc.
• Fused positive outputs (replaceable)
• High PWM frequencies capable
• Extra digital output
• Perfect compatibility with Home Assistant / ESPhome
• high current 10A PWM outputs

QuinLED An-Penta-Plus enters the analog LED market segment, offering a packed feature set yet remaining compact.

Managed via WLED or ESPhome, it enables the controller to easily configure up to 5x white LED strips, 2x CCT strips, RGB, RGBW, RGB+CCT or any combination of up to 5 channels providing sufficient power to each of them.

The dimmer features a max power rating of 30A total with up to 10A per output channel.

All screw terminal plugs are included in the package.

Find more details to this outstanding controller here: QuinLED An-Penta-Plus

Watch the introduction video: QuinLED An-Penta-Plus
